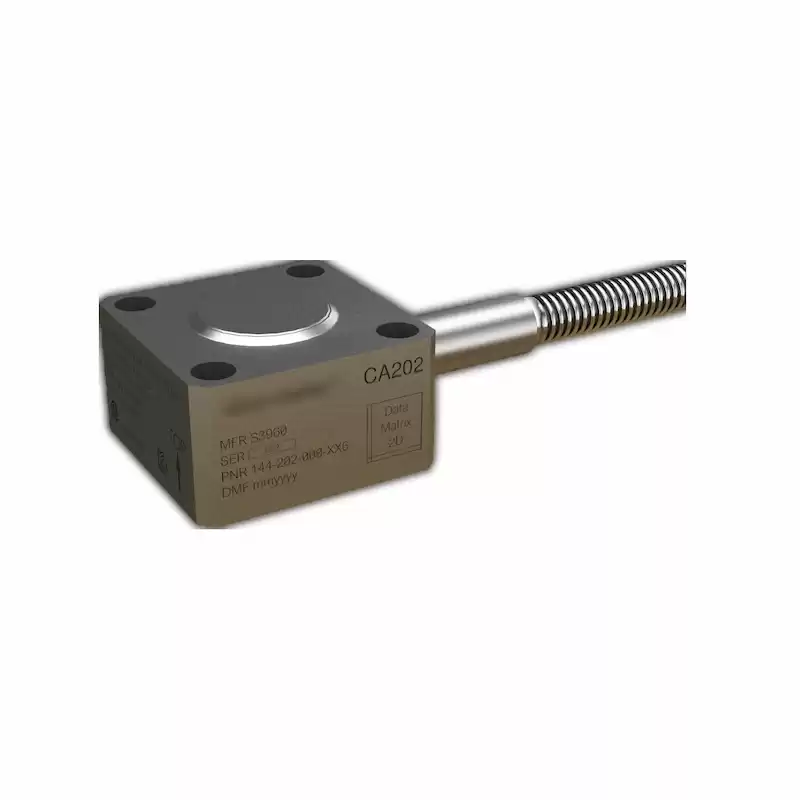

CA202 Piezoelectric Accelerometer
The CA 202 accelerometer features a symmetrical shear mode polycrystalline measuring element which has internal case insulation.

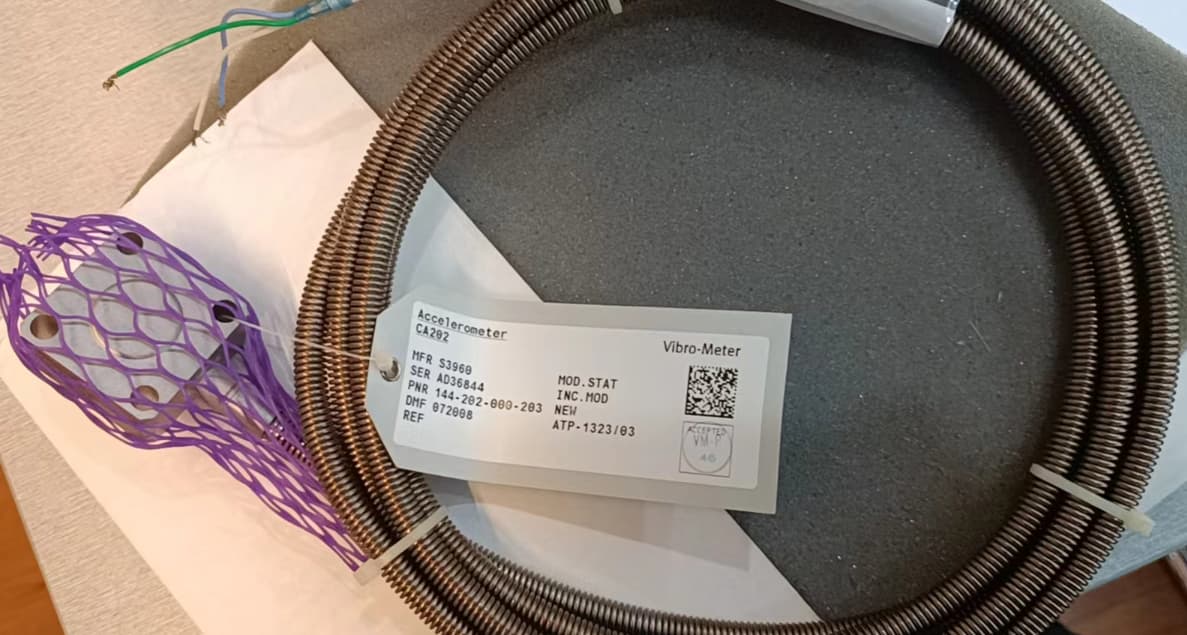

The transducer is designed for heavy-duty industrial vibration monitoring and measurement. The accelerometer is fitted with an integral cable protected by a stainless steel flexible tube welded to the case.
KEY FEATURES AND BENEFITS
• High sensitivity: 100 pC/g
• Frequency response: 0.5 to 6000 Hz
• Temperature range: −55 to 260°C
• Available in standard versions and Ex versions certified for use in potentially explosive atmospheres
• Symmetrical sensor with internal case insulation and differential output
• Hermetically welded austenitic stainless-steel case and heat-resistant stainless-steel protection hose
• Integral cable
APPLICATIONS
• Industrial vibration monitoring
• Hazardous areas (potentially explosive atmospheres) and/or harsh industrial environments
FEATURES
· Industrial vibration monitoring
· High sensitivity
· Differential output
· Hermetically welded
· Internal case insulation
· Integral cable



Technical Specifications
Manufacturer |
VM |
Part Number |
144-202-000-203 |

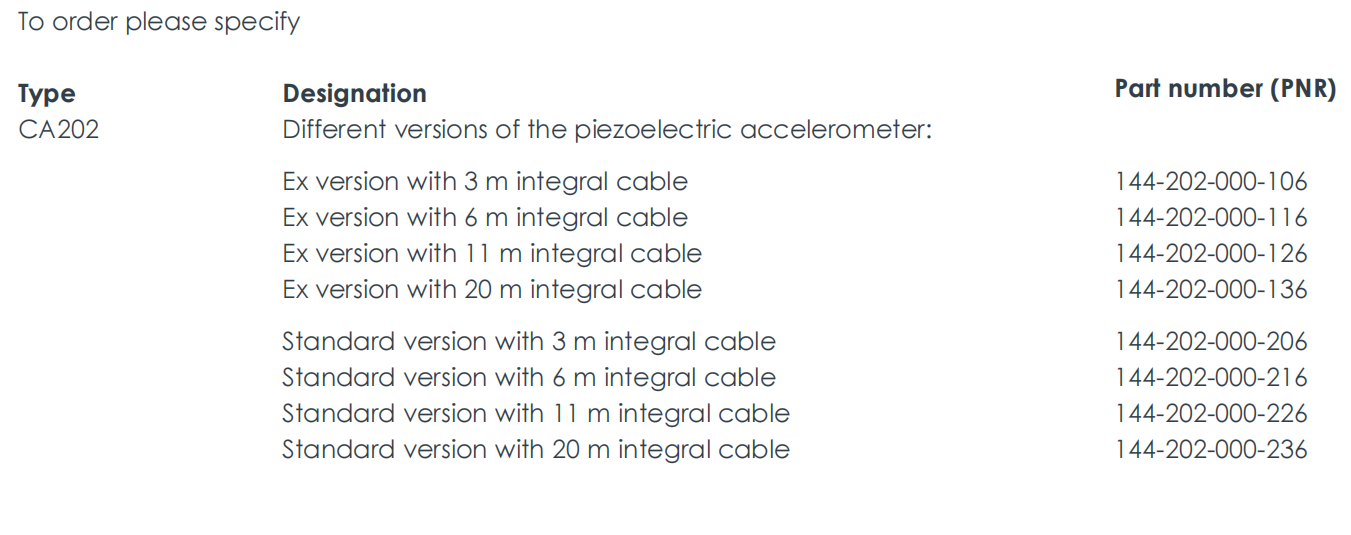

Ordering Information |
144-202-000-203 |
Product Catalog |
CA202 |
Description |
Piezoelectric Accelerometer |
Dynamic measurement range |
0.01 to 400 g peak |
Frequency response |
0.5 to 6000 Hz |
Dimensions |
40 mm x 40 mm x 65 mm |
Weight
|
250 g |
