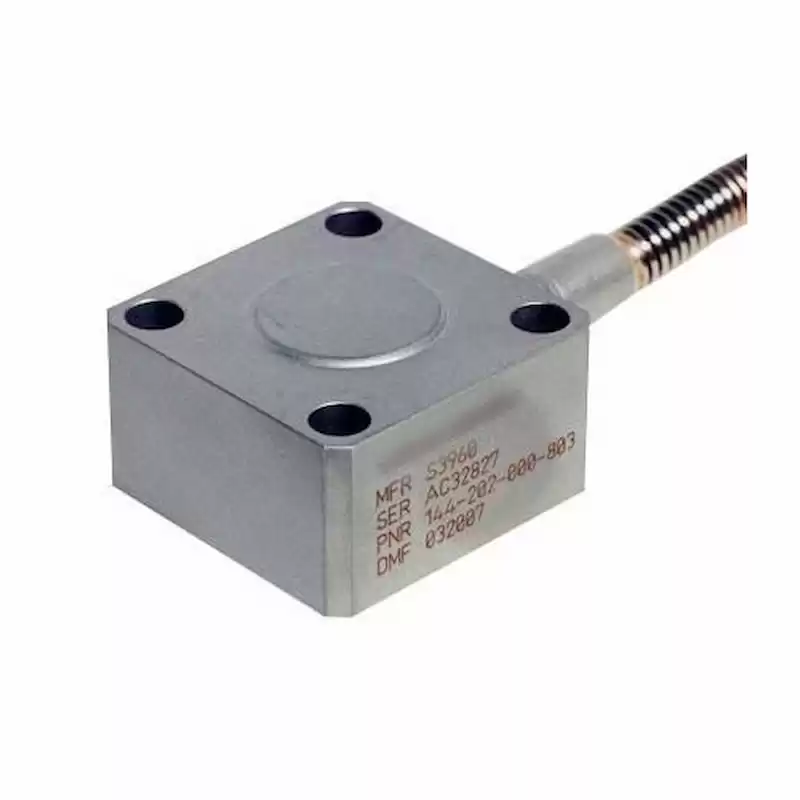

CA202 144-202-000-205 Piezoelectric Accelerometer
The CA202 sensor features a symmetrical shear mode polycrystalline measuring element with internal case insulation in an austenitic stainlesssteel case (housing).
The CA202 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose (leaktight) which is hermetically welded to the sensor to produce a sealed leak tight assembly.
The CA202 piezoelectric accelerometer is available in different versions for different industrial environments: Ex versions for installation in potentially explosive atmospheres (hazardous areas) and standard versions for use in nonhazardous areas.
The CA202 piezoelectric accelerometer is designed for heavy-duty industrial vibration monitoring and measurement.
KEY FEATURES AND BENEFITS
• From the vibro-meter® product line
• High sensitivity: 100 pC/g
• Frequency response: 0.5 to 6000 Hz
• Temperature range: −55 to 260°C
• Available in standard versions and Ex versions certified for use in potentially explosive atmospheres
• Symmetrical sensor with internal case insulation and differential output
• Hermetically welded austenitic stainless-steel case and heat-resistant stainless-steel protection hose
• Integral cable
KEY FEATURES AND BENEFITS
• High sensitivity: 100 pC/g
• Frequency response: 0.5 to 6000 Hz
• Temperature range: −55 to 260°C
• Available in standard versions and Ex versions certified for use in potentially explosive atmospheres
• Symmetrical sensor with internal case insulation and differential output
• Hermetically welded austenitic stainless-steel case and heat-resistant stainless-steel protection hose
• Integral cable
APPLICATIONS
• Industrial vibration monitoring
• Hazardous areas (potentially explosive atmospheres) and/or harsh industrial environments
Technical Specifications
| Manufacturer |
VM |
| Part Number |
144-202-000-205 |

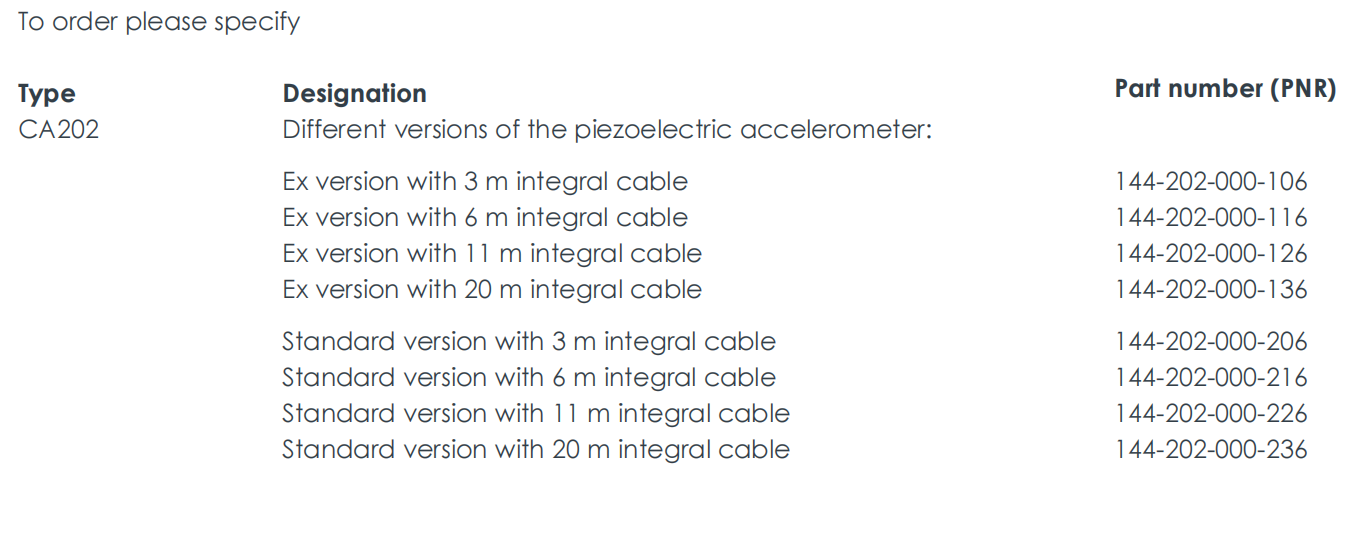

| Ordering Information |
144-202-000-205 |
| Product Catalog |
CA202 |
| Description |
Piezoelectric Accelerometer |
| Dynamic measurement range |
0.01 to 400 g peak |
| Frequency response |
0.5 to 6000 Hz |
| Dimensions |
40 mm x 40 mm x 65 mm |
| Weight |
250 g |
