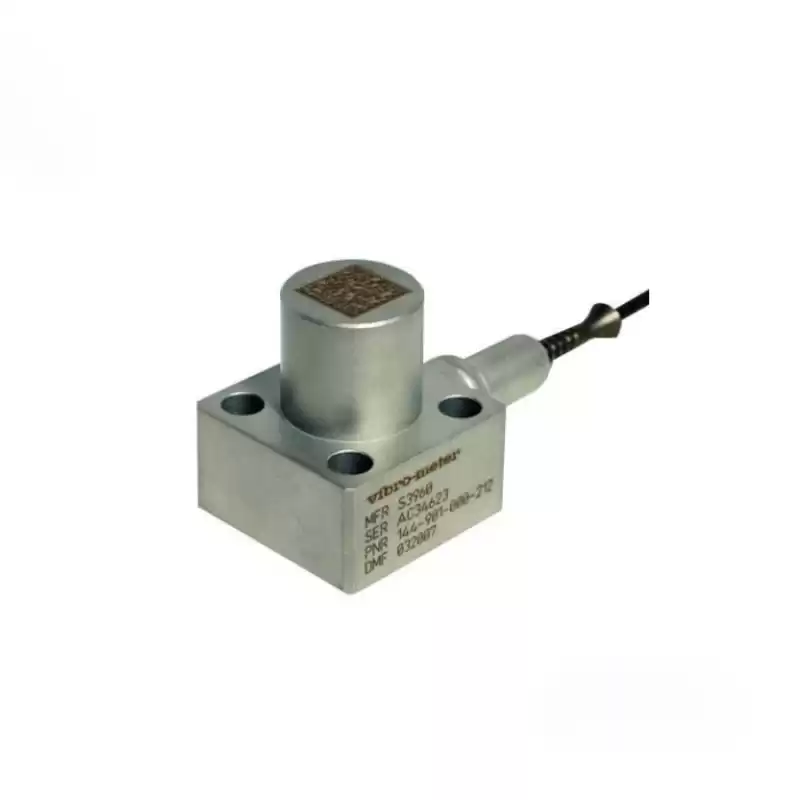

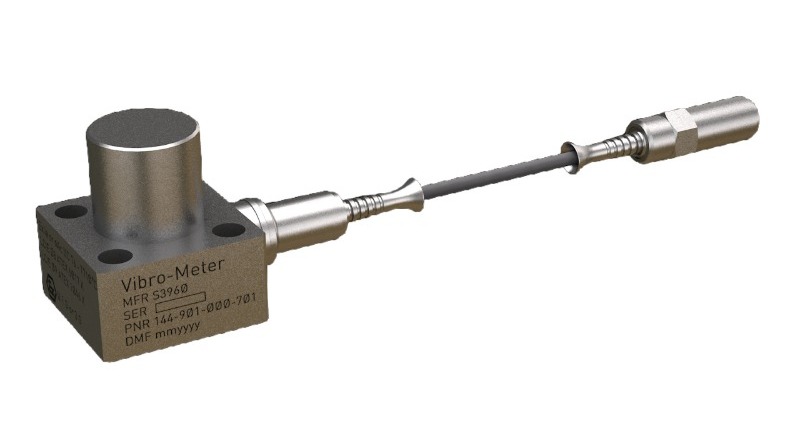

CA901 144-901-000-282 Piezoelectric Accelerometer
Functional Description
The use of VC2 type single crystal material in the CA 901 compression mode accelerometer provides an extremely stable instrument.
The transducer is designed for long-term monitoring or development testing. It is fitted with an integral mineral insulated cable (twin conductors) which is terminated with a Lemo or a high-temperature connector from VM.
Features
· Extreme temperature capability
· Operational as loose part monitoring accelerometer
· Proven reliability
· Meets NRC guide 1.133, IEEE 323-1974. Qualified to DIN 25.475.1
· Integral case insulation
· Certified for use in potentially explosive atmospheres
· Frequency response: 3 Hz to 2 800 Hz
· Sensitivity: 10 pC/g
· Temperature range (operational): -196°C to +700°C
CALIBRATION
Dynamic calibration at factory at 5 g peak and 120 Hz (+23°C). No subsequent calibration necessary.

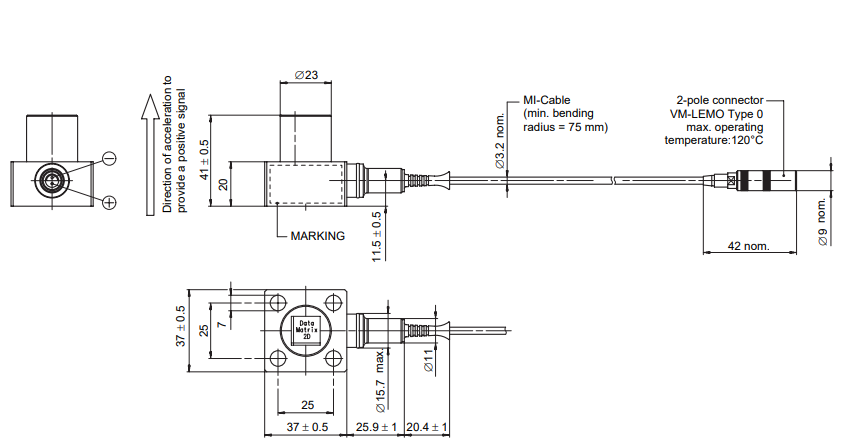

MECHANICAL DIAGRAM
Technical Specifications
| Manufacturer |
VM |
| Part Number |
CA901 |
| Ordering Information |
144-901-000-282 |
| Product Catalog |
Vibration Monitoring |
| Description |
Piezoelectric Accelerometer |
| Frequency |
3 Hz to 2 800 Hz |
| Sensitivity |
10 pC/g |
| Dimensions |
37 mm × 37 mm |
|
Weight
|
340 g |
