The main parameters are just for your reference.
We also offer customized size!
Main technical parameter
|
Technical Parameter
|
Description
|
|
Material Thickness
|
1.0mm
|
|
Material Width
|
415/500mm
|
|
Punching way
|
63T punch+ servo feeding
|
|
Forming Station
|
14 steps
|
|
Motor power
|
7.5Kw
|
|
Changing way
|
Spacer
|
Machine parts

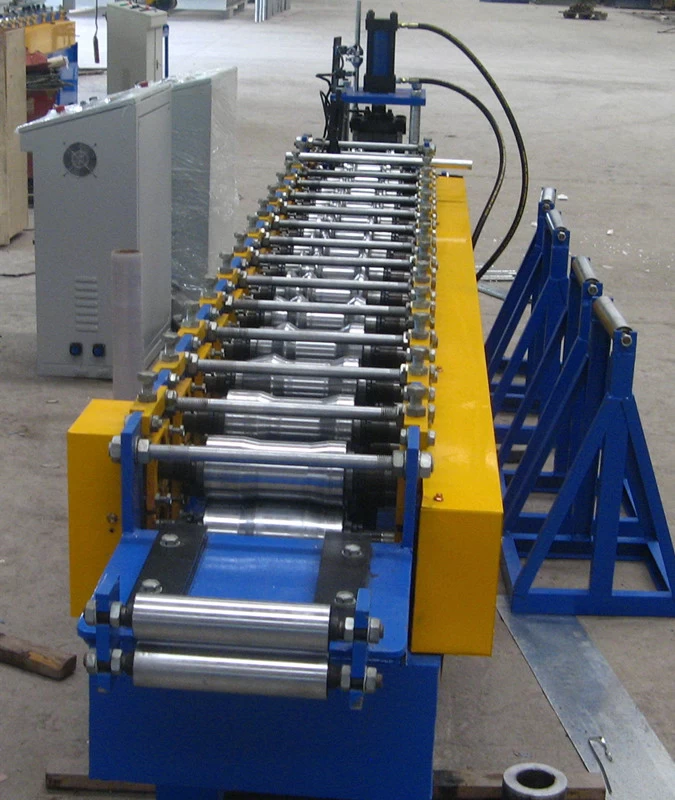

1. Cable tray roll forming machine roller
Our cable tray forming machine roller is made by high quality 45# steel, CNC lathers, heat treatment
You can choose black treatment or hard-chrome coating of your machine rollers
The body of the machine is made of H350 steel by welding
2. Cable tray roll forming machine post cutter
Hydraulic post cutter,hydra power 3KW
Our cutter made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic pressure range: 1-16Mpa

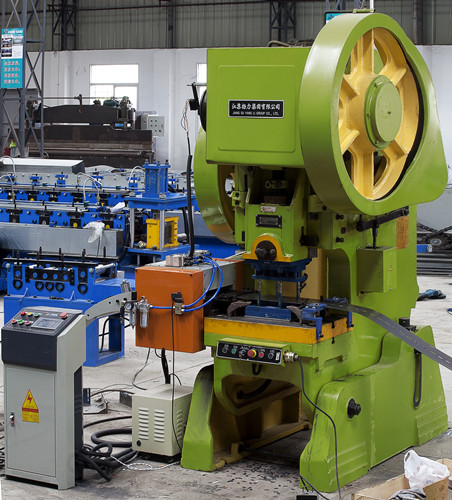

3.Cable tray forming machine punching device

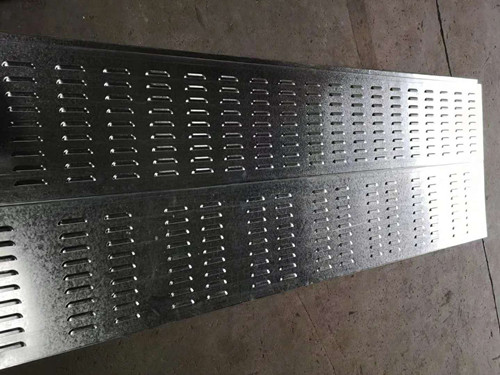

4. Product show
4. Uncoiler
One set of manual decoiler, manually control steel coil inner bore shrinkage and stop
