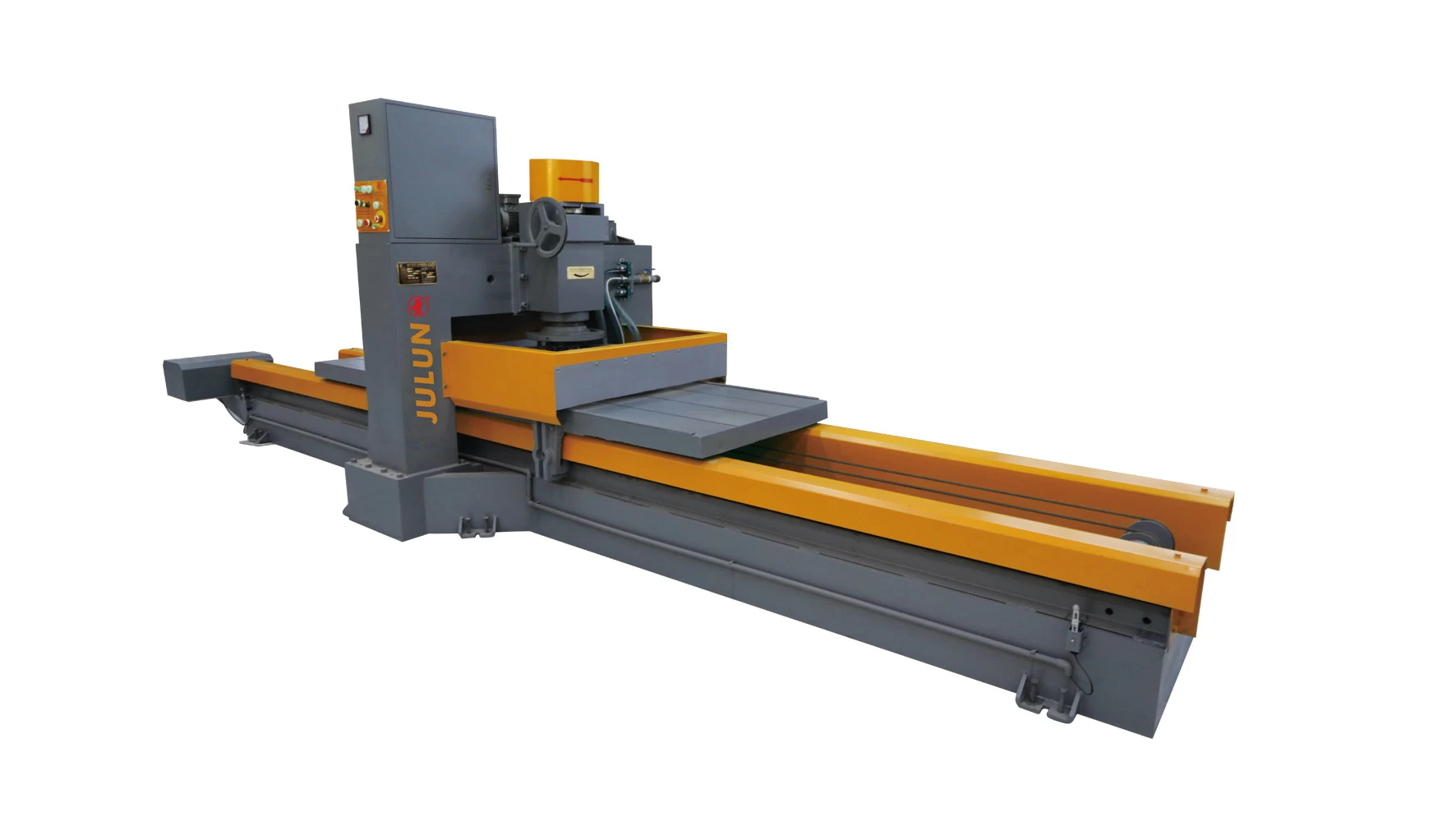

Gantry Automatic Calibrating Machine
1: This machine for large-slate uses Plano-jointed structure,strong structural rigidity,the grinding head can move up and down neatly and feed automatically.

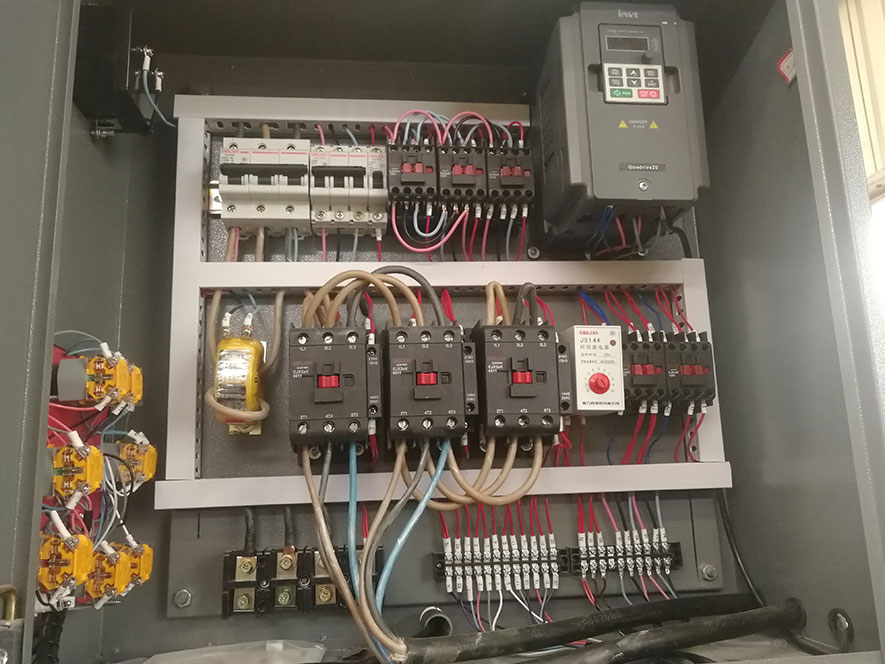

2: With stable functions,high processing precision,convenient operating,and adopting Japanese Mitsubishi frequency converter,whic make whole machine good working and become the best choice for operating thickness and smooth.
Specification
|
Appellation
|
Unit
|
SXA-100L
|
|
Grinding head diameter
|
mm
|
Φ1080
|
Φ1350
|
|
Grinding head lifting stroke
|
mm
|
100
|
|
Worktable size(optional)
|
mm
|
2500X1100/3000X1100
|
2500X1250/3000X1250
|
|
Water consumption
|
m3/h
|
7.2
|
|
Air consumption
|
kW
|
18.5
|
22
|
|
Total power
|
kW
|
20.3
|
23.8
|
|
Dimension(LXWXH)
|
mm
|
6000X2200X2050
6700X2200X2050
|
6800X2350X2150
7400X2350X2150
|
|
Weight
|
kg
|
3400
|
4100
|

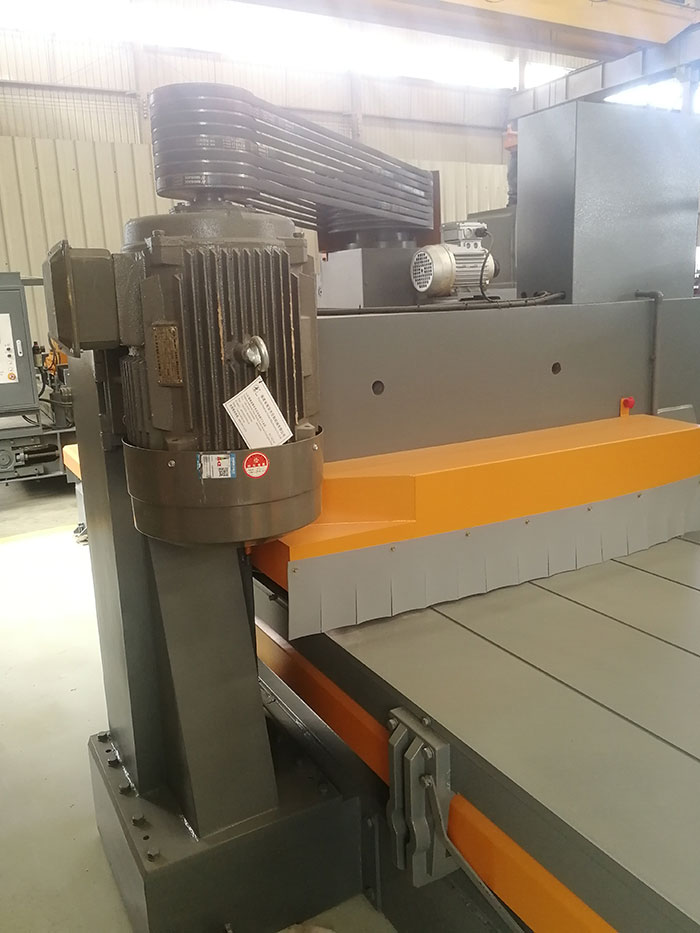

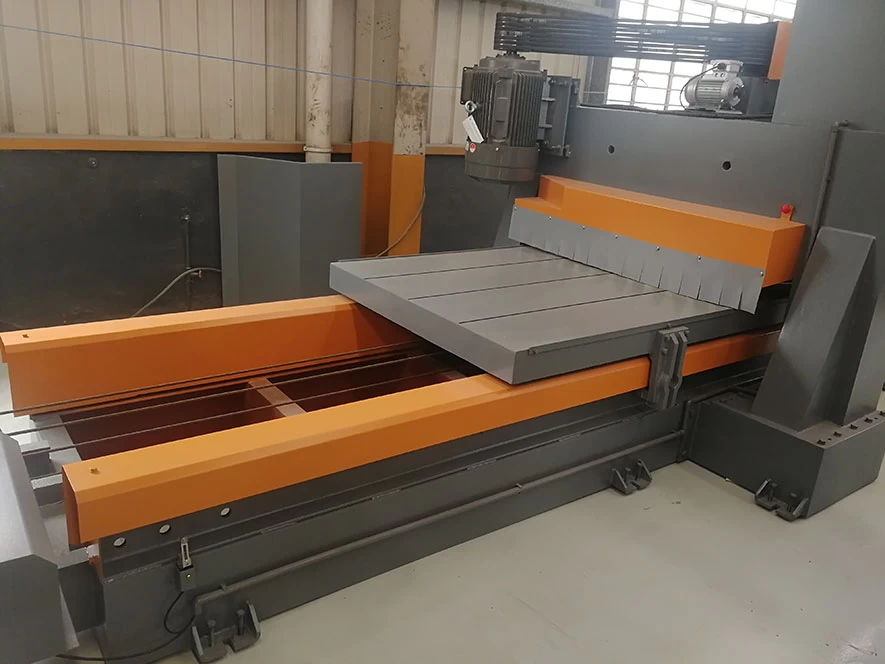

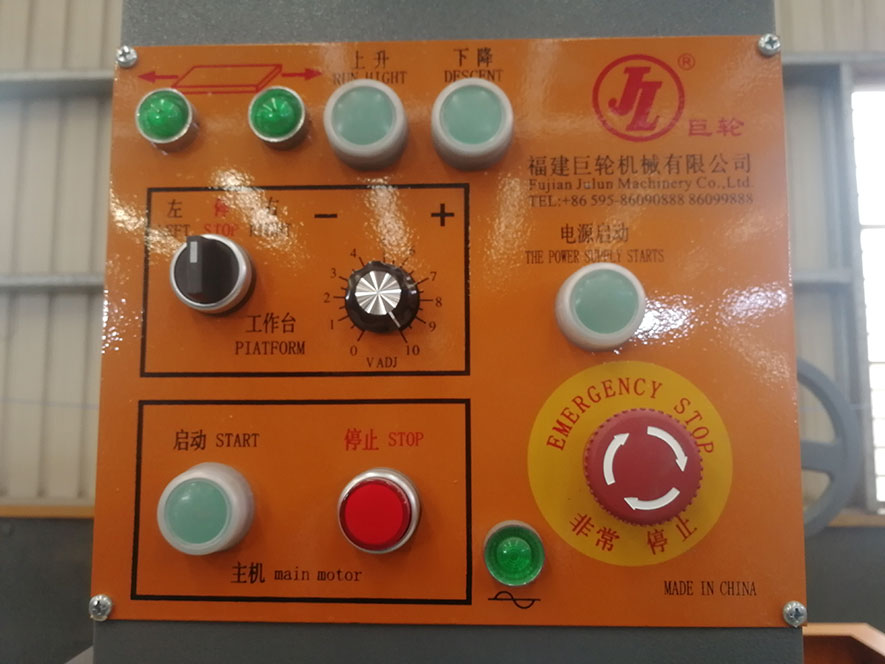

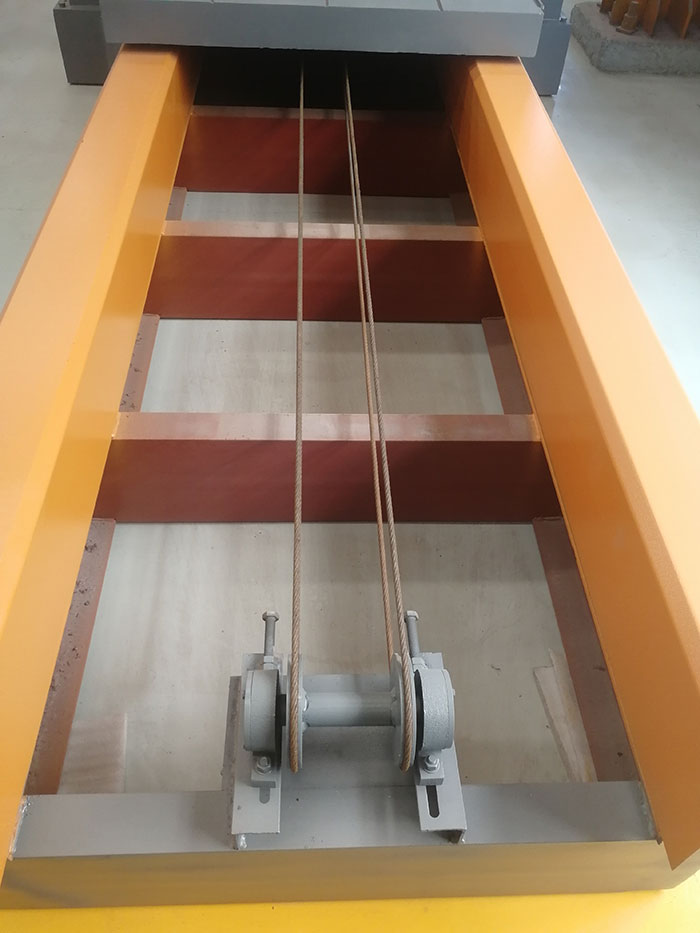

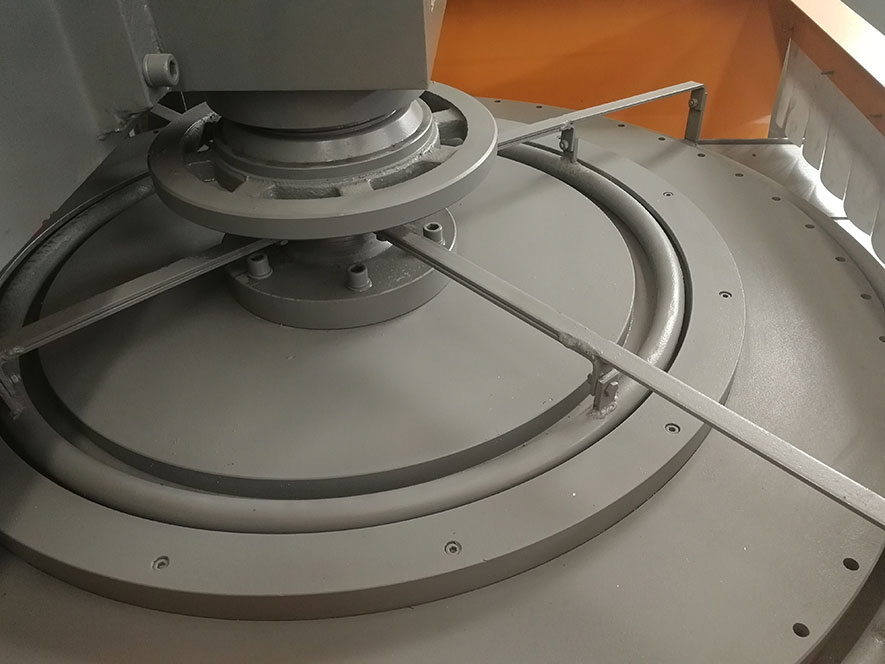

Photos
