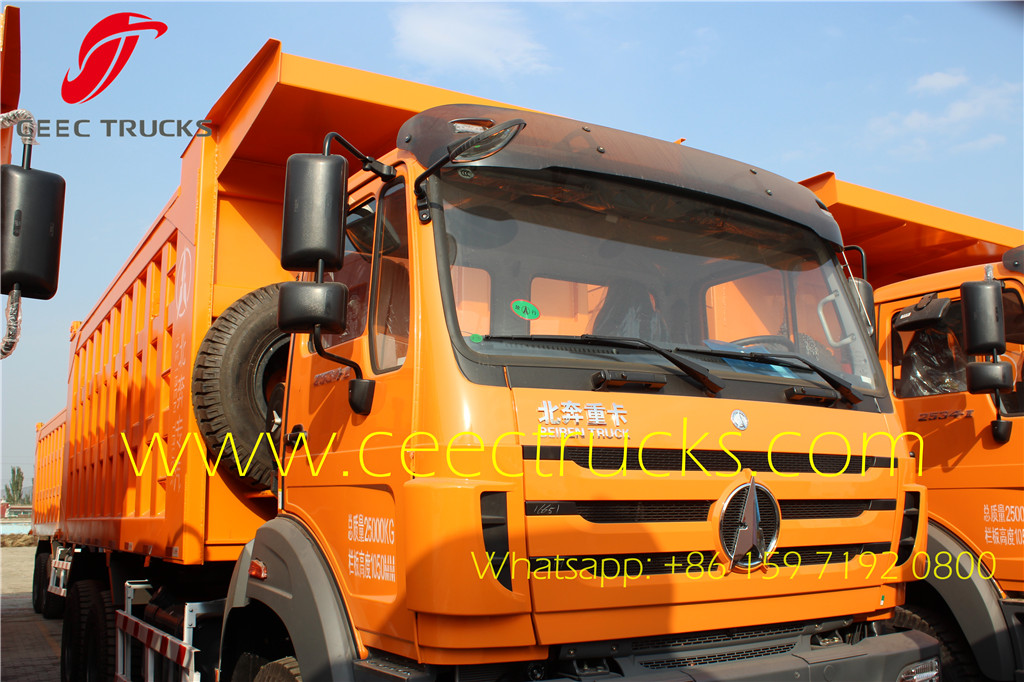

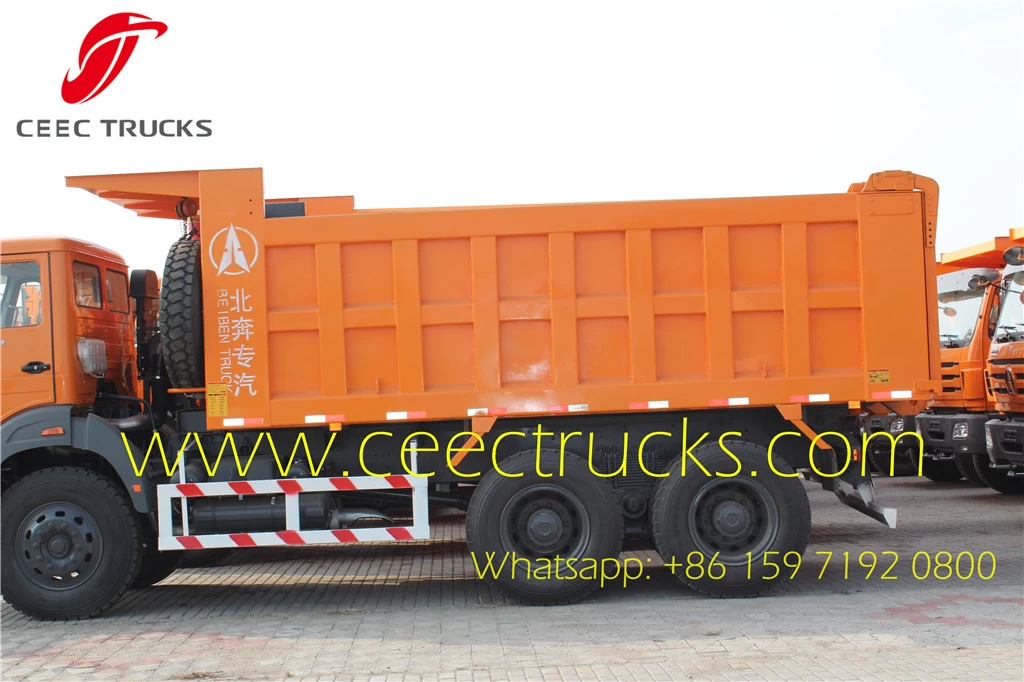

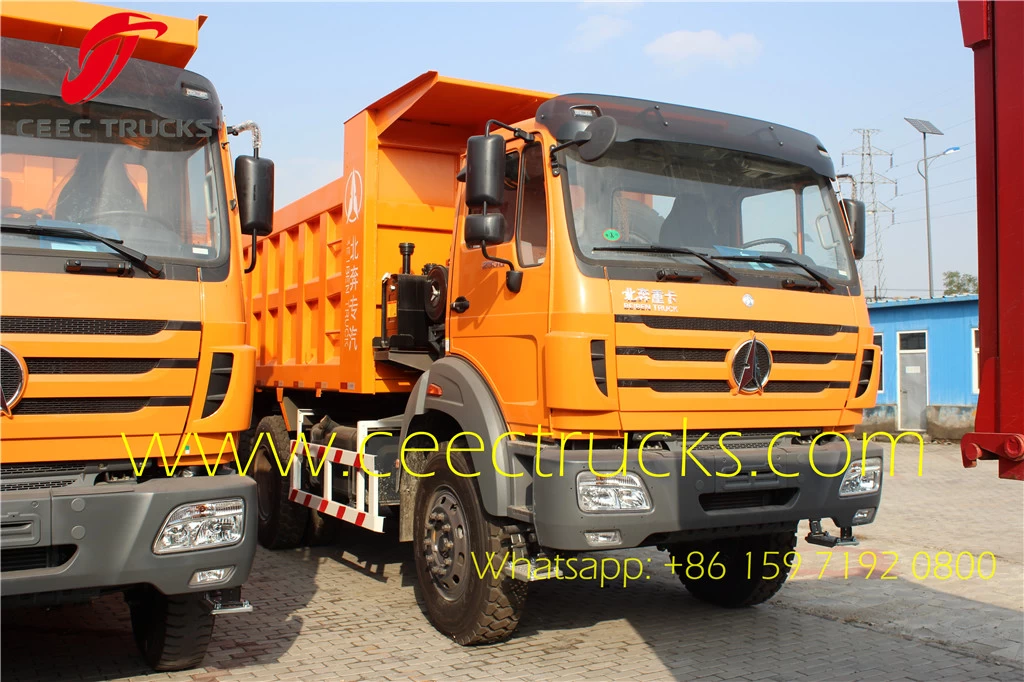

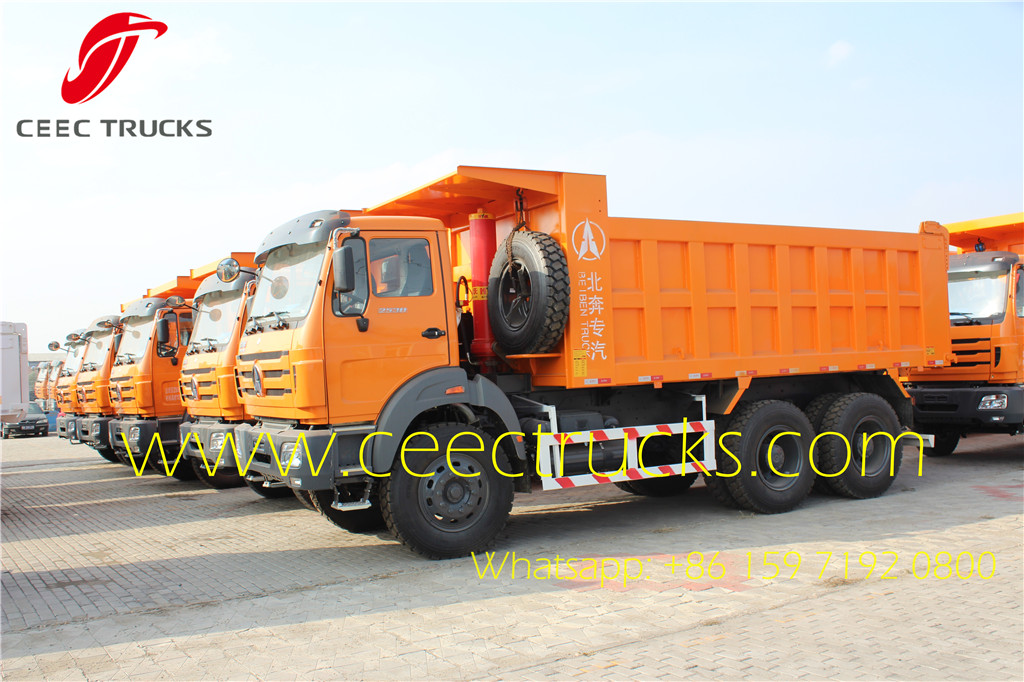

Africa Beiben 2538 tipper trucks NG80 series for sale
The overall designing of the Beiben NG80B 2538 tipper truck is pleasing to the eyes. The brand new NG80B driving cab is designed by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The beiben dumper truck frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, strengthened structure, large cargo capacity, all making it suitable for engineering projects such as road and bridge construction, water conservancy projects, as well as transportation of various heavy goods. And all our 2016 newly designed beiben tipper trucks are widely export Africa Kanya, Algeria, Cameroon, Congo, South Africa, Middle Africa, Zambia, Tanzania, etc.
Advanced features for CEEC produced beiben tipper trucks:
◆ Germany Mecedes BENZ technology chassis with high durability andreliability
◆ Germany BENZ technology engine combined with original rear axle reducer gear and differential gear

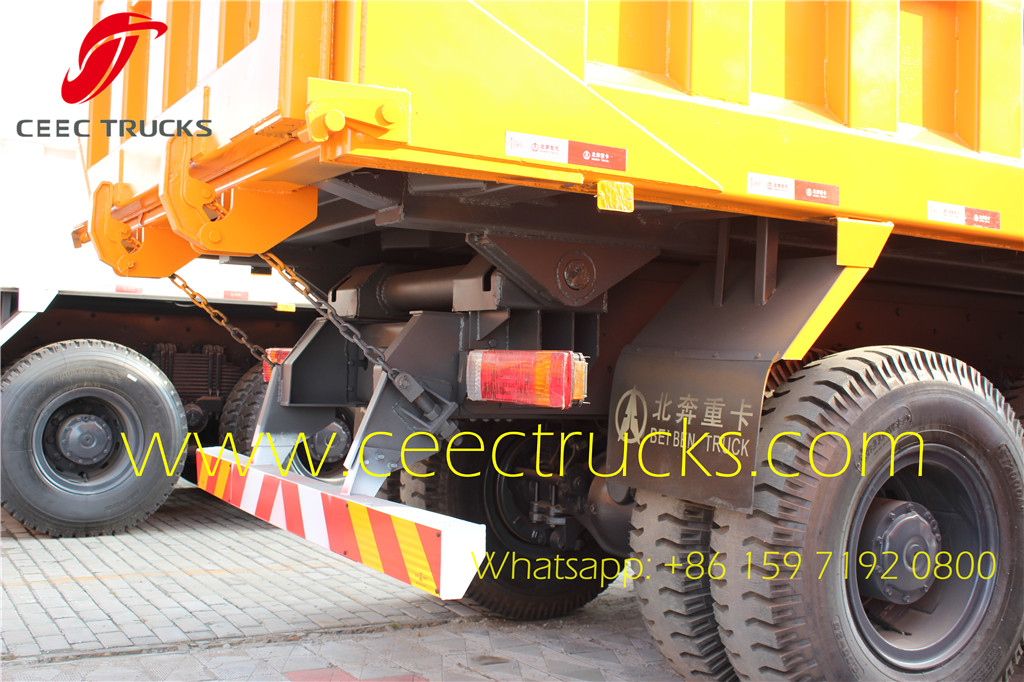

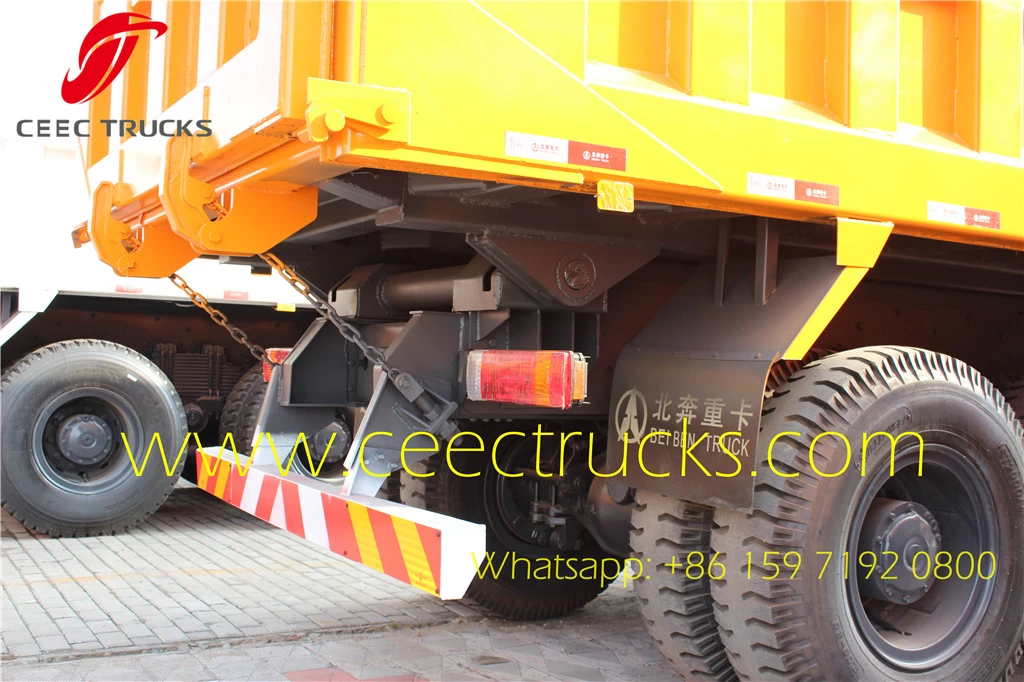

◆ Continuous welding throughout body for additional strength, Fulldepth rear corner post with full depth rear crossmember.
◆ Enhanced body, and the motherboard adopts variable cross-sectionbeams.
◆ Special maximum beiben 60 t Dumper Body Design are optional
◆ Other customer requirements are welcome
Similar key words: beiben
2538 dumper truck, north benz 2538 dump truck, beiben 2538 tipping truck, beiben 2538 dump truck
price, africa beiben dumper manufacturer, kenya beiben dumper truck,
congo beiben 6*4， 8*4 dump truck, baotou beiben 2538 dump truck supplier.
| Sales No.
|
Beiben 2538 tipper trucks
|
| Dimension（mm)
|
Long
|
8290
|
|
Wide
|
2500
|
|
High
|
3410
|
| Wheel base（mm）
|
3800+1450
|
| Drive
|
6×4
|
| Engine
|
Model
|
WP10.380E32
|
| Cabin
|
NG80B/short cab
|
| Clutch（mm）
|
Φ430
|
| Front Axle
|
7.5T
|
| Rear/Mid Axle
|
Model/speed radio
|
Double Reduction Driving Axle /5.263
|
| Steering System
|
ZF8098
|
| Braking System
|
Dual Circulation Air Brake System
|
| Fuel Tank（L）
|
400L
|
| Frame/mm
|
317×70×8.5+7+8mm
|
| Tire
|
315/80R22.5
|
| Front/Rear Overhang
|
1410/1630
|
| Transmission
|
Fuller 9JS180
|
| Curb Weight（kg)
|
12470
|
| Up Body Volume(m³)
|
5.8mx2.3mx1.5m
|
| Max Speed（km/h)
|
90
|
best selling model for beiben tipper trucks
