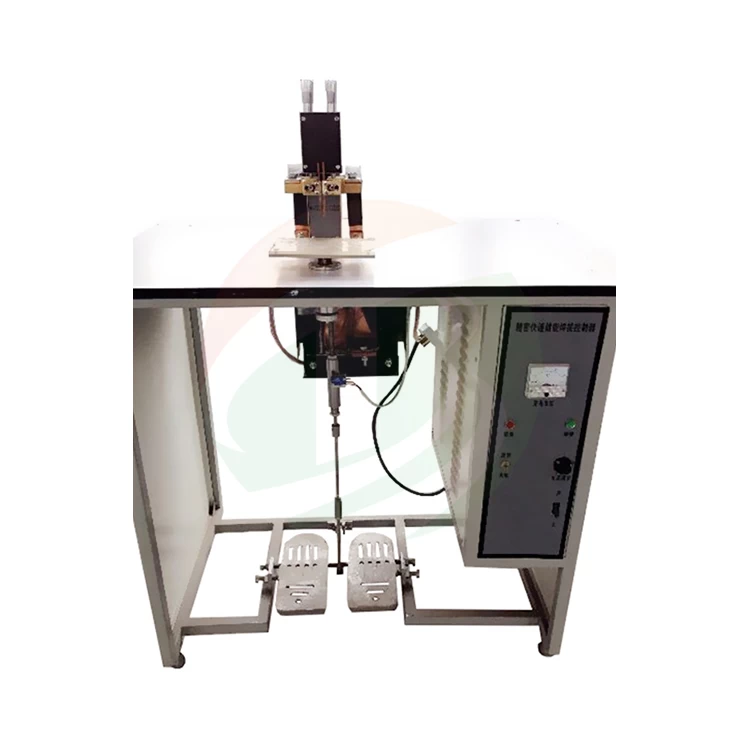

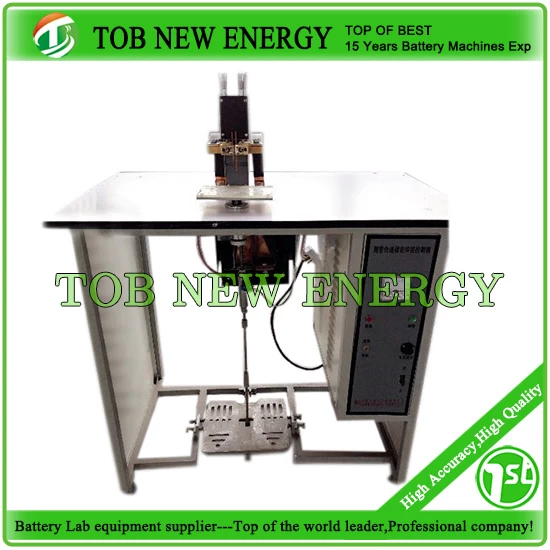

Desk-Top Micro-computer Control Capacitive Discharge Spot Welder For Lithium Battery Tab Up To 0.3mm
SPECIFICATIONS
1 TOB-PM118Kcapacitive discharge spot welderis the most popular pedal typebattery spot welding machine. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.
2 Thiscapacitive discharge spot welderadopts CPU control, it is a Capacitor energy storage Silicon controlled rectifier dischargingDouble point spot welding machinewith short welding time, Focused power and Workpiece is not easy to be oxidized.
|
Model
|
Capacitive Discharge Spot Welder TOB-PM118K
|
|
Source voltage
|
380V , 50HZ Double Phase
|
|
Energy storage capacity
|
800J
|
|
Welding ability
|
0.1-0.3mm Ni tab, 1.2+1.2mm stainless steel welding
|
|
Warranty
|
One year limited and lifetime support
|
|
Scope of application
|
18650, 26650, 32650 cylindrical battery,
NI-MH battery(nickel-metal hydride battery),
Nickel cadmium battery and EV Lithium battery pack Ni tab welding
|
|
Advantages
|
1 Allow independent adjustment for pressure
2 Ensure consistent welding pressure
3 Fully eliminates the phenomenon of low voltage or condensation
occurred to lithium batteries after welding
4 Homogeneous welding spot, small spark, and no black spots
|
|
Welding stroke
|
10mm
|
|
Electrode arm distance
|
90-100mm
|
|
Electrode pressure
|
160-500N
|
|
Weight
|
100kg
|
PRODUCT DISPLAY

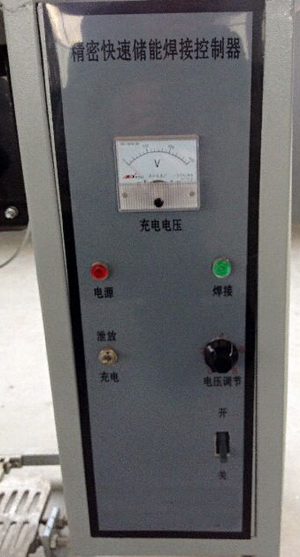

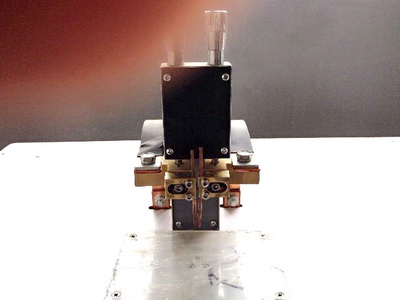

Control box and welding head for capacitive discharge spot welder
