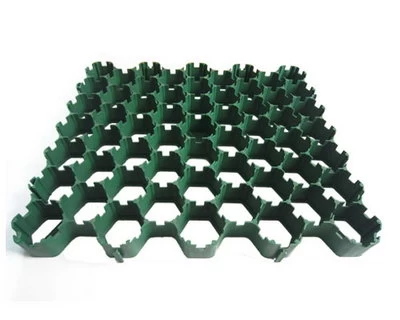

Car Parking Lot Interlocking Plastic Grass Grid

Plastic Grass grids is made of high molecular weight HDPE (high-density polyethylene), adopt high pressure injection forming technology to suppress the nest bee continuous shell. Special direct joining, saving time and quickly, can adjust the expansion joint. Grass grid is widely used in parking garage, fire exists, fire climbing surface, pavement etc.


  • Press Strength200ton/bundle
  • Total Volume0.1m3/bundle
  • Size465x535x50mm
  • ColorGreen
  • MaterialHDPE

Car Parking Lot Interlocking Plastic Grass Grid Specification:

 Item Code  MZ-450A
 Material  HDPE
 Size(L x W x H)  465 x 535 x 50mm
 Color  Green
 Grass Grid Details
 Application

  •  Grass driveways and grass shoulder;
  •  Overflow grass car parking lot;
  •  Fire truck access paths/fire lanes;
  •  Handicap access routes;
  •  Pedestrian paths;
  •  Golf buggy/trolley paths;
  •  Emergency vehicle access roads through fields;
  •  Modern factory building;
  •  Noble living communities;
  •  Truck maintenance and equipment yards;
  •  Construction entrance soil stabilization;
  •  Residential driveways;
  •  Roof garden greening etc.;

 Compressive Strength  1964KN/sqm (200ton/sqm)
 Working Temperature  Dimensionally stable for -40℃ to 90℃
 Weight  5.5kg/sqm
 Afforests Rate  95%~100%
 Porosity  90%
 Moisture Absorption  0.1%
 Environmental Compatibility  Non toxic, harmless to plants, animals, and microorganisms, inert material, groundwater neutral
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified
 Features and Benefits

 1. Manufactured from 100% recycled plastics, eco-friendly grass grids;

 2. Flat plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change

 3. Perfect greening, provides more than 95% grass area;

 4. High compressive strength and durable,the plastic grass grids is permanent and long lasting;

 5. Fast and easy to install, maintenance with low cost;

 6. Permeability drainage performance, high water culvert;

 7. Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure, anti-temperature -40℃ to 90℃;

 8. Grass grids has an open cell structure allowing unrestricted healthy grass root growth;

 9. The grass grids allow grass to grow with easy and binds firmly;

 10. Unique interlocking plastic grass paving grids are chemically inert, non-toxic and rot free.

 Packing  Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
 MOQ  100sqm
 Loading Capacity  700sqm=1x20ft container; 1420sqm=1x40ft container; 1628sqm=1x40HC container
 Shipping

 About 20 days after receipt the deposit.

 FOB Xiamen, appointed shipping-terms and port accept.

 Installation Guide







Manufactured from 100% recycled HDPE material, Leiyuan plastic grass grids are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.


Grass grids provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.

Plastic Grass Grids Construction:



Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
