Carbon Bike Tubeless Ready Road Rims 2024H

- Full Carbon T700

- Carbon Tubeless Road Rim

- Brake Track: Basalt, Disc Brake

- Weight: 440+/-15g

- ERD: 570mm


  • PaymentPaypal, Bank Transfer, West Union
  • Rim TypeTubeless
  • FinishUD/ 3K/ 12K/ 3K Twill/ 12K Twill
  • Brake SurfaceBasalt/ Disc Brake/ Twill/ 3K/ Special Design

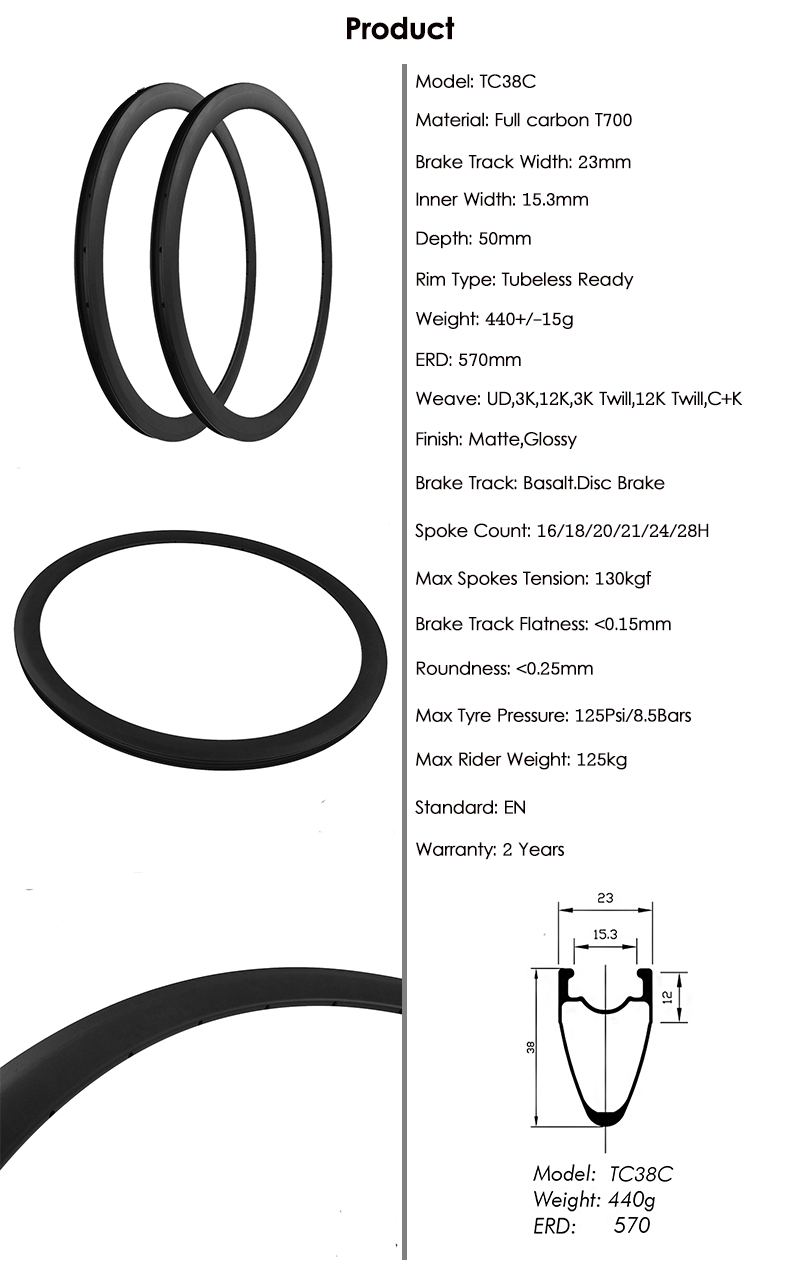

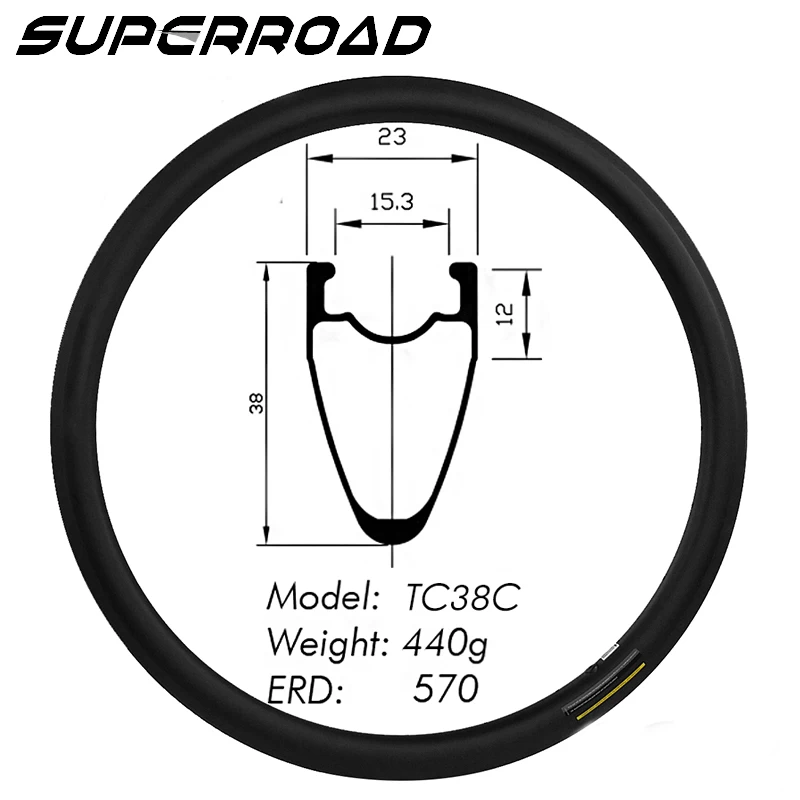

Model: TC38C Size: 700C
Material: Carbon T700+30%T800 Brand Name: Superroad
Brade Track Width: 23mm Drilling: Traditional/Internal
Inner Width: 15.3mm Spoke Hole: 16/18/20/21/24/28H
Rim Depth: 38mm Brake Track: Carbon,Basalt,3K,12K,Twill
Rim Type: Clincher Tubeless Reay Weave: UD/3K/12K,3K+Twill,12K+Twill,3K+Kevlar
Weight: 440+/-15g Finish: Matte/Glossy
ERD: 570mm Max Tyre Pressure: 125Psi/8.5Bars
Max Spokes Tension: 130kgf Roundness: <0.25mm
Brake Track Flatness: <0.15mm Max Rider Weight: 125kg
Decal: Customized Standard: EN
Business: OEM&ODM Warranty: 2 Years

carbon tubeless road rim


Features



1.One Piece Molding: Making by complete carbon fiber,stronger and more stable, better finish for rim.


2.Light Weight Design: Toray carbon fiber material,as far as possiable less weight and easier for ride.
3.High TG 255: High temperature TG resin, Prevents heat distortion, higher than general tech about 210 or 240 temperature.


4.TI Flange Design: Rim flange incl circle titanium,stronger and stabilized structure.


5.Basalt Brake Track: High temperature resistance, brake system is important for riding , more safety for cyclist.


6.U-Shaped Design: Making the rim less susceptible to cross winds and improves aerodynamics in a range of real life wind conditions.


7. Asymmetric Design:The asymmetric rim enables even spoke tension for increased durability. Our rim have 2.4-2.6 of offset, which we have found is the perfect spot.
