Nitrogen Purification Equipment
Brief Introduction

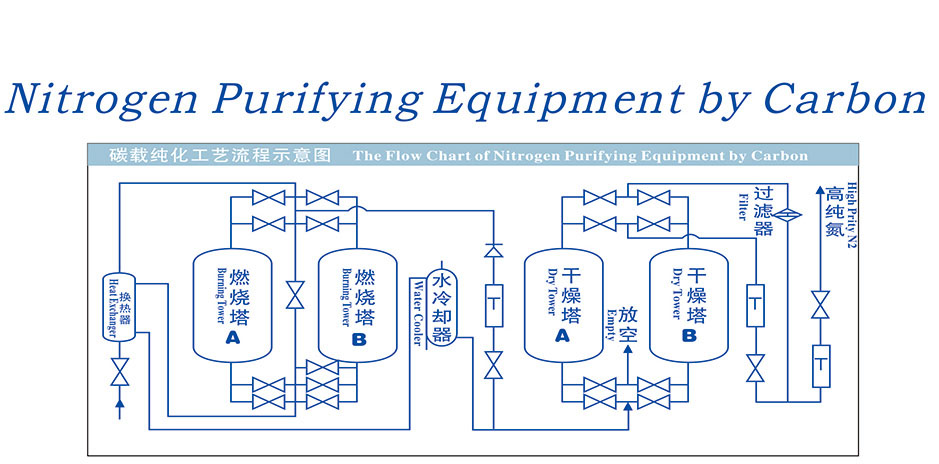

With the carbon supporter catalyst,carbon burning with little O₂ in the common N₂ to remove O₂.The chemical reaction is the formula of C + O₂->CO₂,and then remove H₂O,CO₂,dust and other impurities by adsorption drier device to get high-purity nitrogen.
Characteristics
The equipment produces N₂ with security and stability, N₂ purity could be maintained ≥99.9995% for a long time;
Automatic towers switch, repair or replacement of dehydration desiccant could be kept without halting production;
Automatic control drying tower, adsorption devices can be switched by computer at the setting time.
Specification
|
Model
|
N₂ Output(Nm³/h)
|
Consumption Flow(Nm³/h)
|
N₂ Dew Point
|
|
WG-CPURE-20
|
20
|
24
|
≤-60 ℃
|
|
WG-CPURE-60
|
60
|
66
|
|
WG-CPURE-80
|
80
|
88
|
|
WG-CPURE-100
|
100
|
110
|
|
WG-CPURE-150
|
150
|
165
|
|
WG-CPURE-200
|
200
|
220
|
|
WG-CPURE-300
|
300
|
330
|
|
WG-CPURE-400
|
400
|
440
|
|
WG-CPURE-500
|
500
|
550
|
|
WG-CPURE-600
|
600
|
660
|
|
WG-CPURE-800
|
800
|
880
|
|
WG-CPURE-1000
|
1000
|
1100
|
Usage:Use condition of above form:common N₂ purity is 99.9%,working pressure designed 0.6Mpa.
Application
1. Purify nitrogen to get 99.9995% nitrogen.
2. It is applicable to the industry of ultra-high purity nitrogen or other special industries.
Why choose us
1. We have more than 10 years of experience in air separation equipment and have rich experience in facing all difficulties.
2. Our delivery cycle is short. The soonest we can deliver the goods is 15 working days since we pay the deposit.
3.We have professional engineers in charge of after-sales service, which can be provided anywhere in the world.
4, we have a unique technology, so that the life of the molecular sieve more than 10 years.
All our machines are fully automated and there is no need for guards.
6. Our machines save 10%~20% more energy than our counterparts.
