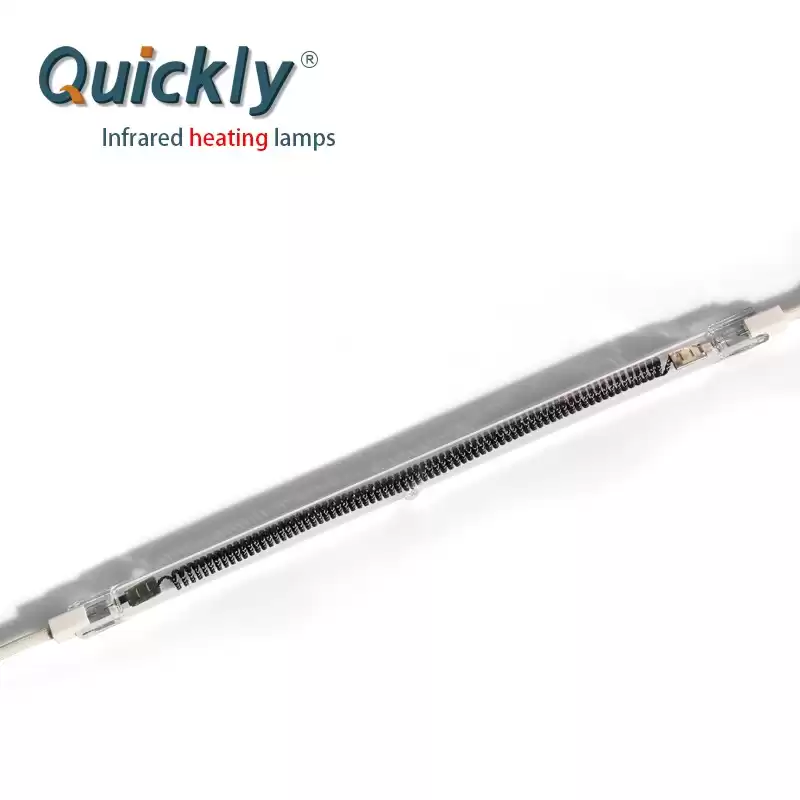

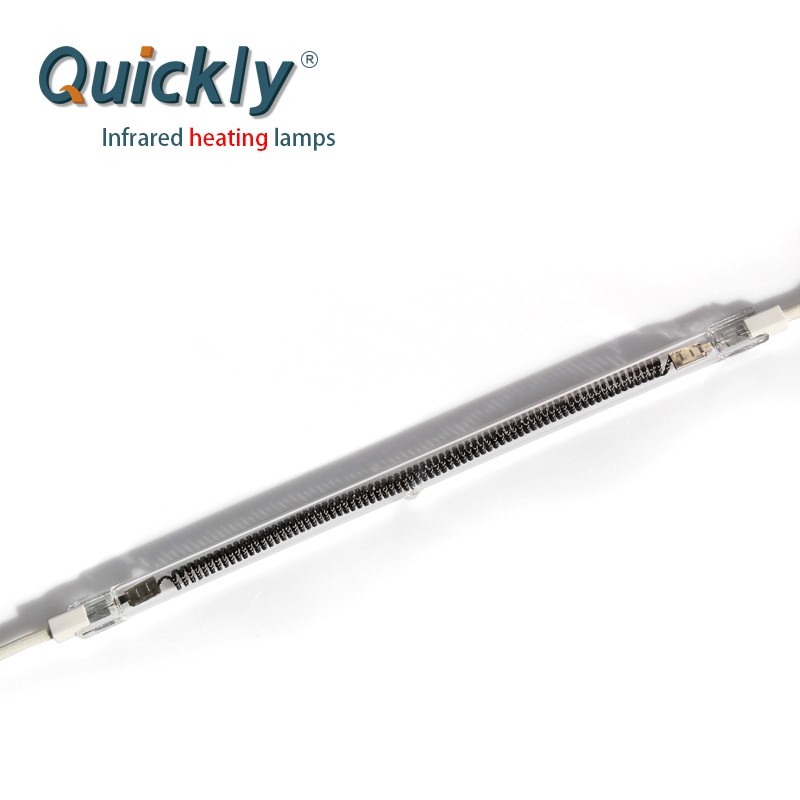

Carbon Fiber Medium Wave Heating Tube Infrared Lamp 380V 2000W
Quick introduction
Carbon fiber medium wave infrared heaters operate at around 1,200C and emit medium wave infrared. The carbon fibers produce gentler heat, and their light is less intense than tungsten. They also have long service lives. These emitters are produced as single round tube or twin tube emitters, in lengths up to 3 meters. This unique lamp is ideal for drying applications that don’t require high, intense heat of short-wave and long drawn-out heat of medium-wave, but rather falls in between. And it is available with white ceramic reflector and golden coating.
Carbon-based Medium-Wave Infrared Emitters dry water-based coatings more efficiently than short-wave infrared radiators. Materials such as glass and plastic, are more suitable for medium wave radiation.
| Parameters |
single tube infrared heater lamps |
| Tube Diameter(mm) |
10 |
10.5 |
11 |
12 |
13 |
13.5 |
15 |
18 |
| Overall Length(mm) |
80-1700 |
80-1700 |
80-1700 |
80-1700 |
80-1700 |
80-2100 |
80-2500 |
80-3000 |
| Tube Thickness(mm) |
1.3 |
1.3 |
1.3 |
1.3-1.5 |
1.5 |
1.5-1.75 |
1.8 |
2.0 |
| Heated Length(mm) |
30-1650 |
30-1650 |
30-1650 |
30-1650 |
30-1650 |
30-2050 |
30-2450 |
30-2950 |
| Max Power(w/cm) |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |

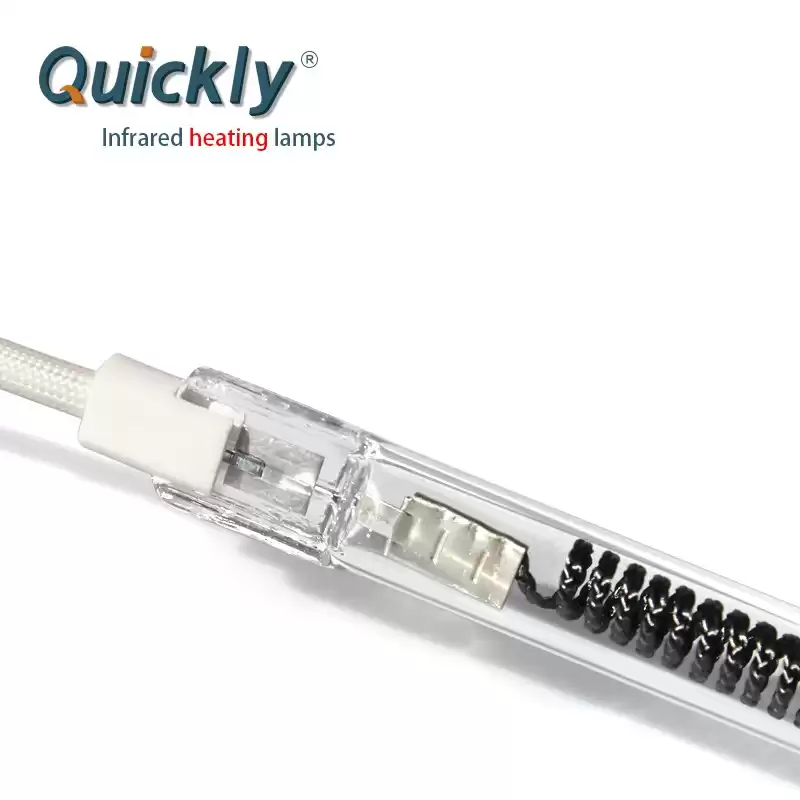

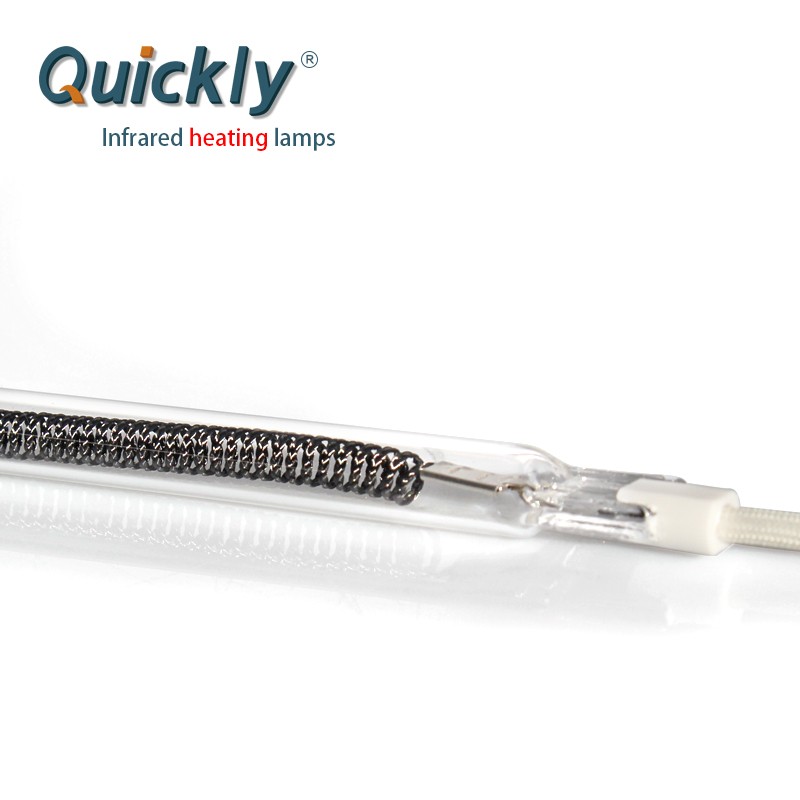

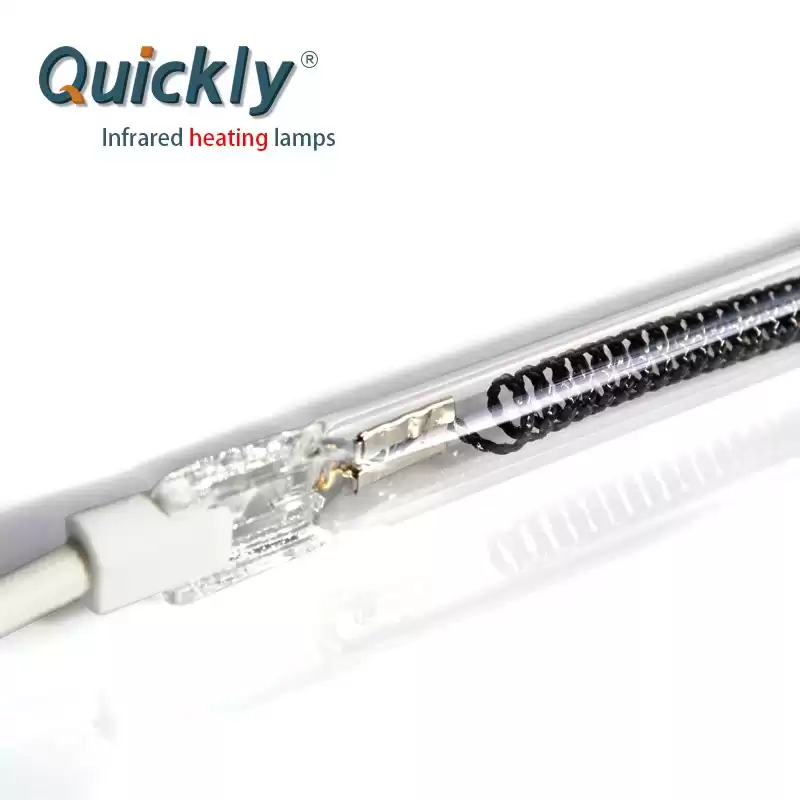

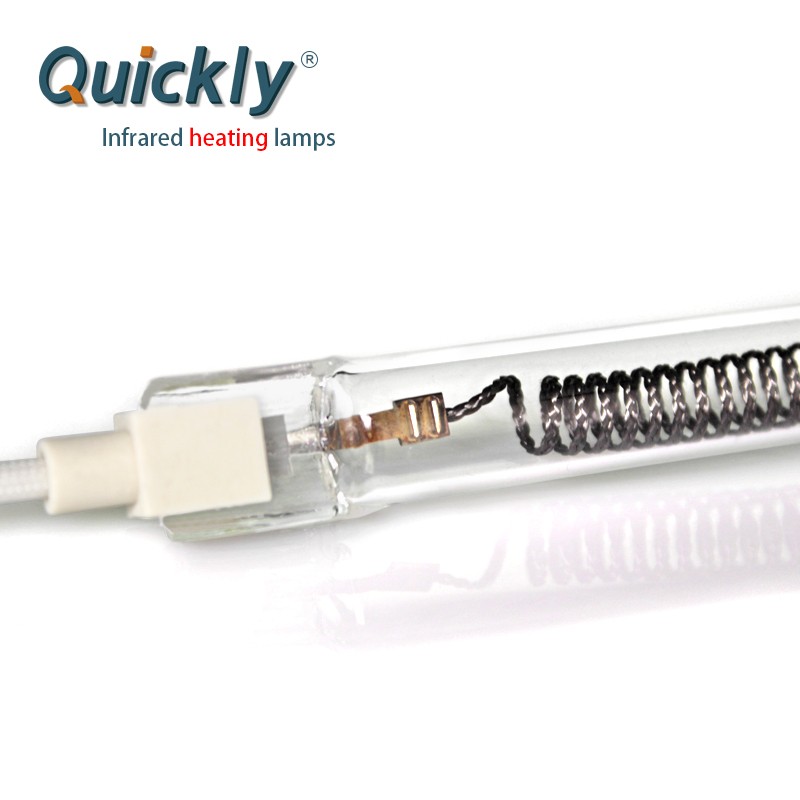

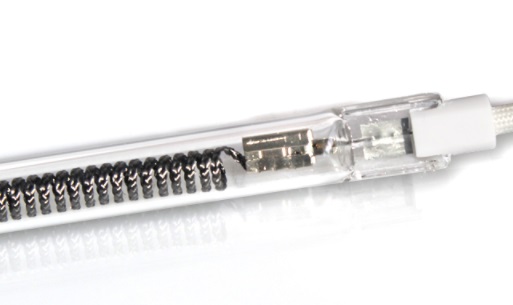

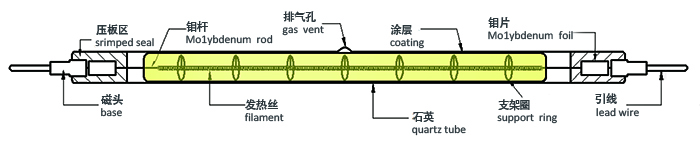

Construction Of single tube carbon fiber IR heater

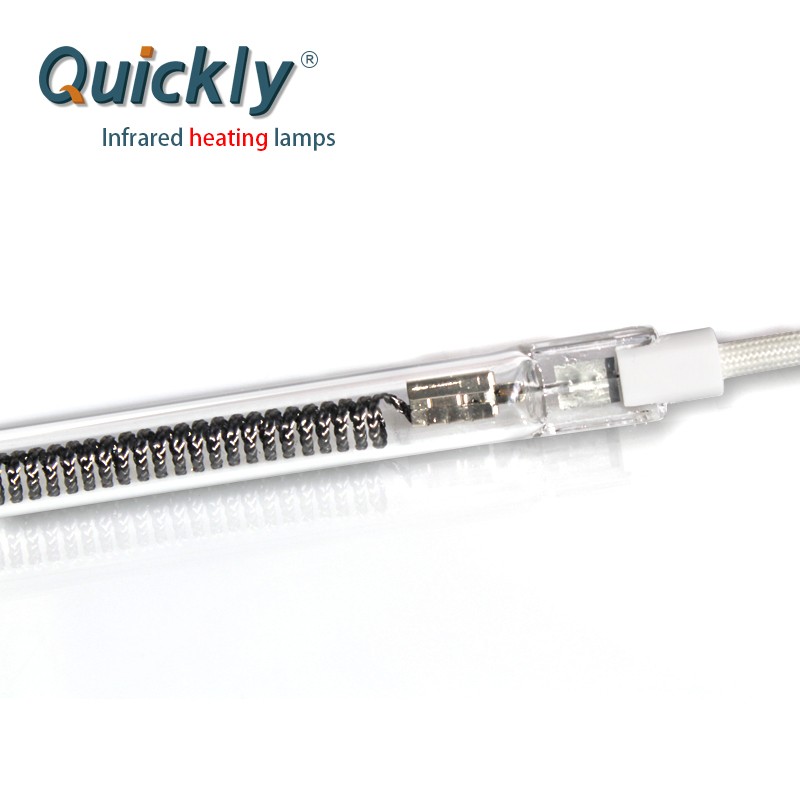

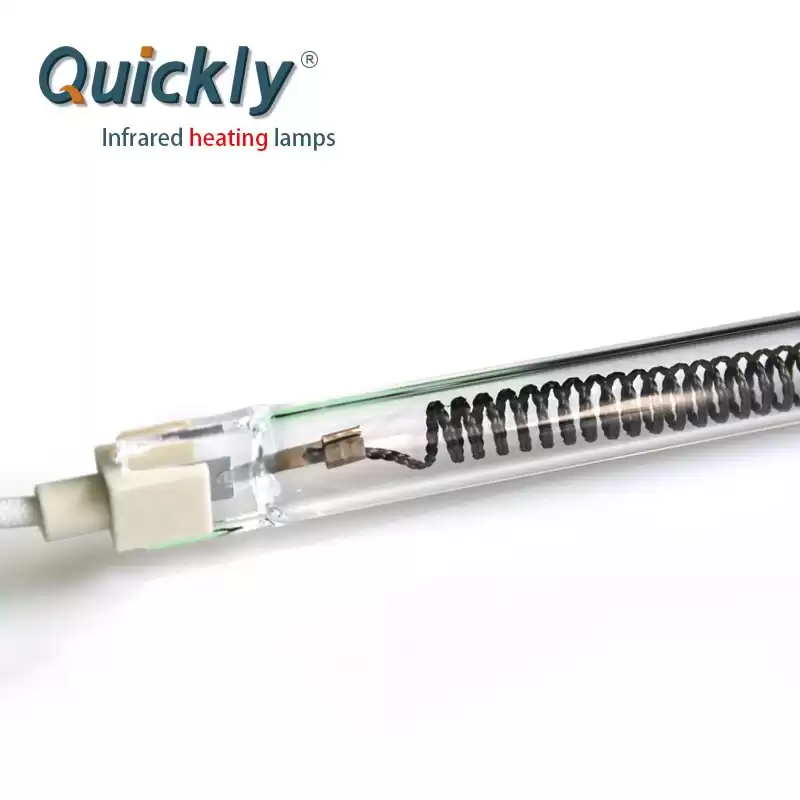

Carbon infrared heaters have heating elements made from woven carbon fibers which are housed in quartz. They are also filled with halogen gas like quartz heaters.
Application
Food - Pasteurization / Sterilization
Paper Industry - Humidity Control
Industrial Drying - Paint , Varnishes , Dyeing
Semi Conductor Industries - Heating of wafers
Printing - Printing ink drying in screen and offset machines
Plastic welding
Drying of Water-Repellent Coating on Fabric
Textile Embossing and Laminating
PET preform heating in Stretch blow moulding machines
Powder coating curing
Resins Hardening, Rubber coating drying
Adhesives - End polymerization
Advantages
· Short heating times with maximum efficiency
· High operational reliability
· Optimum customization options and controllability
· Long average lifespan
· Immediately full heat output
· Space-saving, maintenance-friendly installation
· Impressive reliability
· Low running costs
· Also with reflector for directed heat radiation

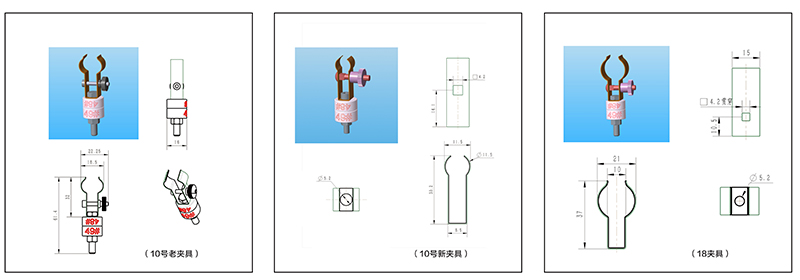

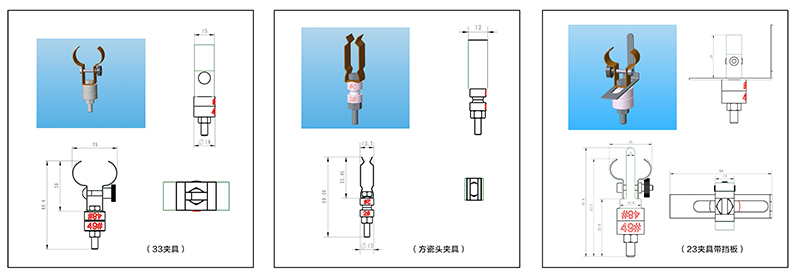

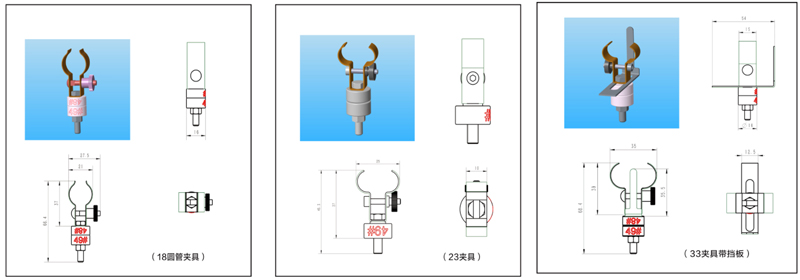

We also provide clips for lamps installing
Why QUICKLY ?
- The materials used for our lamps are at good quality approval UL testing
- As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

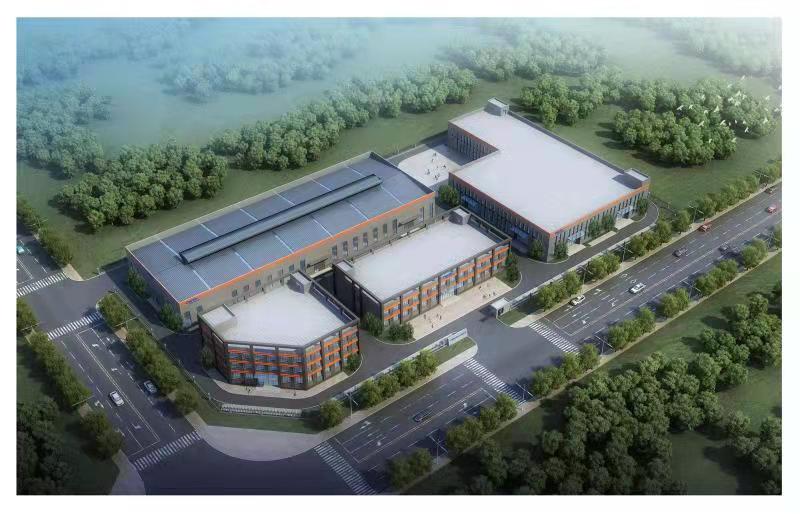

- We are factory, so we can control the delivery date, material, quality directly
- For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming
- Safe package to protect lamps from being broken during shipping
- we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)
- Various Payment methods like wire transfer, paypal, western union
- Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea
FAQ:
- how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
- Why Quartz Glass as the one main of material?
The choice of quartz glass is not a coincidence: this extraordinary material is totally transparent at IR radiation, can withstand constant
working temperatures of more than 1000°C and it is resistant to chemical corrosion.
- could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
- Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
- How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.
- why coating on quartz tube surface ?

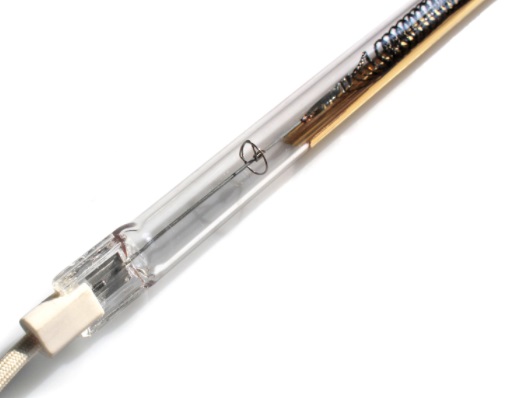

QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output. The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C . In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
 |
 |
