Overview

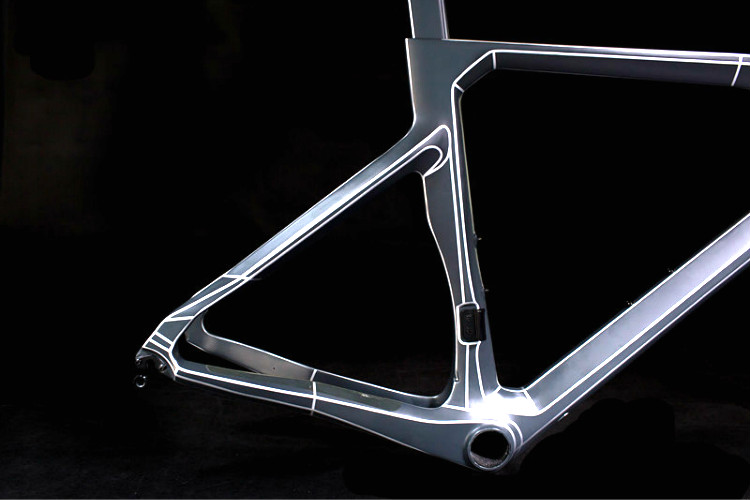

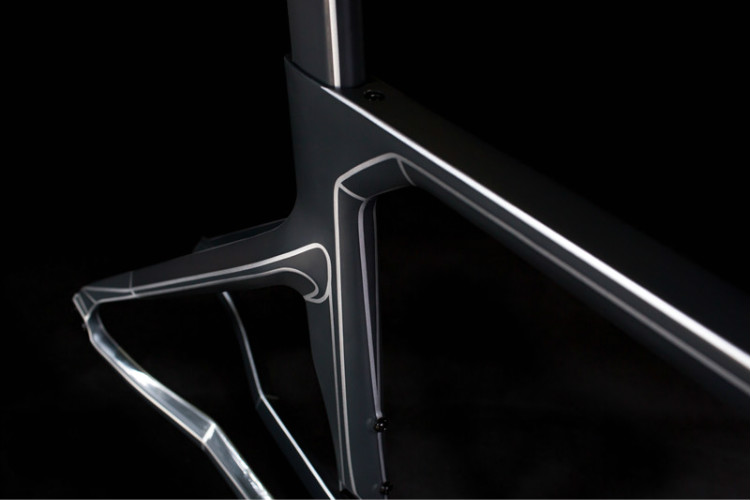

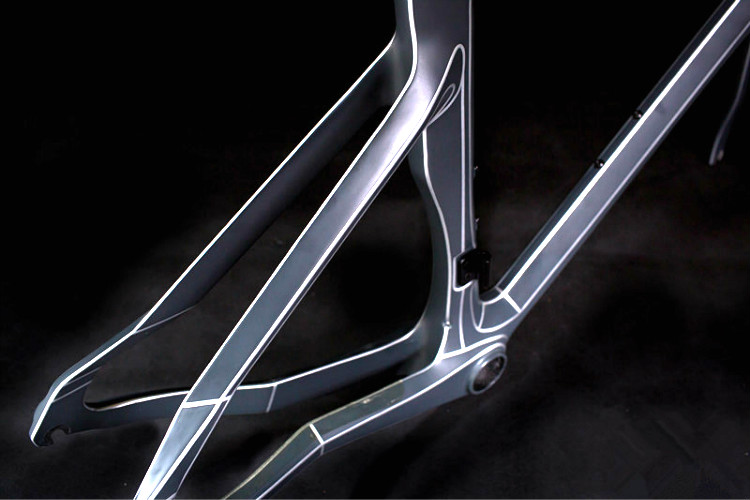

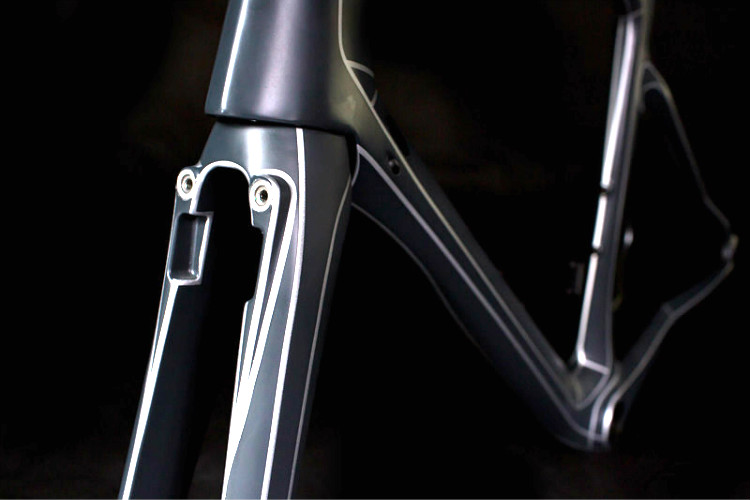

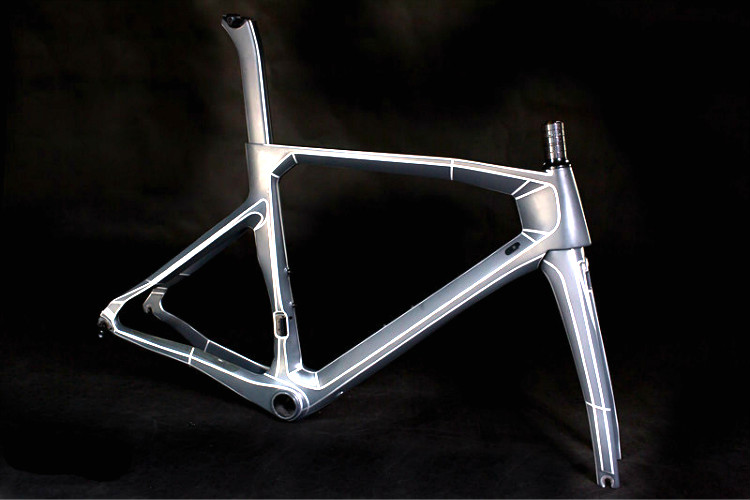

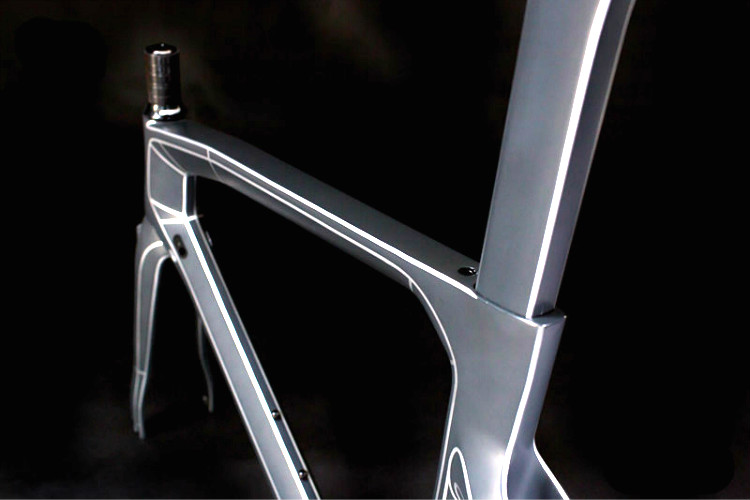

The SC-R28V has improved monocoque design with increased cross-section of the top and down tube. The internal routing of the cable of the rear brake contributes to the simplicity of the design and the improvement of the aerodynamic characteristics of the road bikes that will be built from this stiff but yet lightweight and comfortable frameset. The frame has been designed with internal cable routing and is electronic groupset ready.
Specification
Material: Toray carbon fiber
Type: 700C Road
Appearance: UDM
Finish: Glossy/Matt
Headset: 1 1/8" - 1 1/2"
BB: BB386
Frame Weight: 1180g (M)
Size: 42cm/45cm/48cm/51cm/54cm
Di2 Compatible: Yes
Cable Routing: Full internal
FD Mount: Brazed-on
Tire: 25c

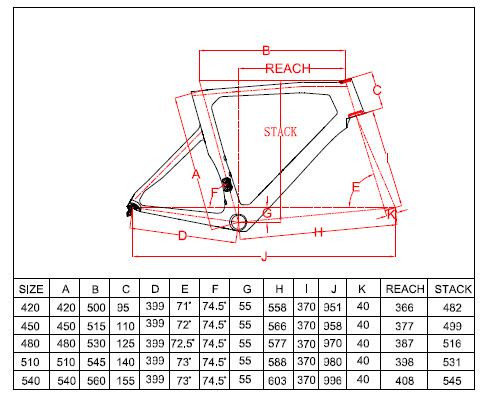

Geometry
