Feature

EPS technology with latex double molds guarantees maximum control of internal and external surfaces and thickness, it results a smooth frame, free of excess materials and fully compliant with design specifications.

Higher modulus of carbon fiber is applied to reduce the weight without sacrificing the strength and rigidity.

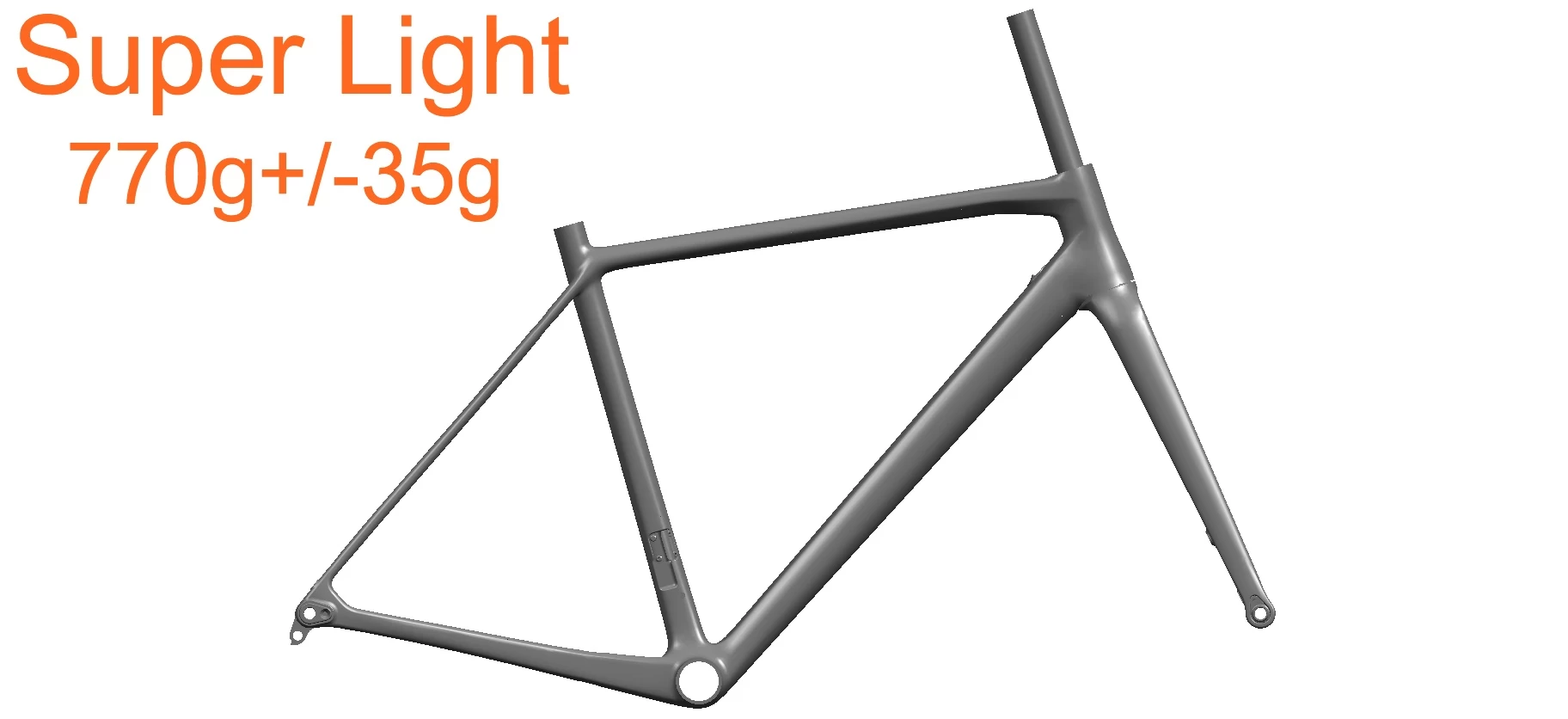

Super light layup design, weighs from 770g+/-35g including all alloy parts needed / excluding final color painting.


Specification

Material: Toray M40J T800 / T1000

Type: 700C Road Disc

Appearance: UDM

Finish: Glossy / Matt

Headset: 1 1/8" - 1 1/2"

BB: BB86.5

Weight: From 770g+/-35g (Including all alloy parts needed / excluding the final color painting)

Seat Post: 27.2mm

Size: 45cm / 47cm / 49cm / 52cm / 55cm / 58cm

Di2 Compatible: Yes

Disc Mount: Flat mount

Tire: 28c

TA: 12x100mm / 12x142mm

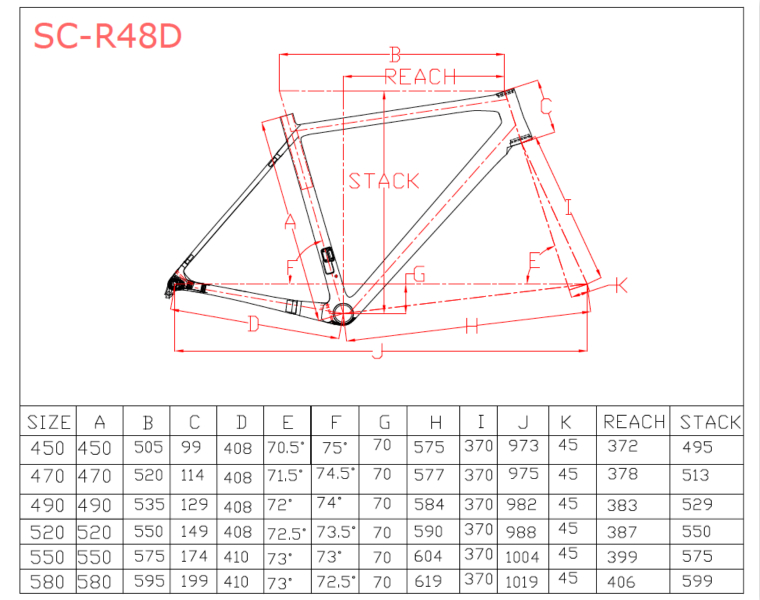

Geometry
