ITEM: Carbon Steel 40000 Liters 3 Axle Fuel Tanker Trailer
Feature
Tanker semi-trailers from SUNSKY are perfectly tailored to the demanding requirements facing petrol station supply and haulage company.They are ideal for transporting fuel,diesel,gasoline etc. The trailer can be fitted with or without a dipstick measuring system. Weight-optimised trailers considerably reduce the empty weight and thus reduce heating consumption and tyre wear during transportation.
Advantages of 40000 Liters 3 Axle Fuel Tanker Trailer
1..The gravity center of SUNSKY fuel tanker trailer is designed as low as possible to minimize the risks of overturns .More suitable use in rush roads. More safe for fuel transport.
2. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
3.The axle, tire and other accessories of fuel tanker trailer are the well-known brand like Fuwa, Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers.Keep a better performance and reduce your maintain cost in fleet operation.
4.The capacity of fuel tanker trailer can be made from 30000 liters to 50000 liters capacity. Compartments from 1 to 8.To meet the clients' different requirements.
Specification
|
40,000L 3-axle Fuel Tanker Semi-trailer
|
|
Feature:
|
Carry Fuel,Oil,petroleum
|
|
Dimension(L*W*H):
|
11500*2500*3750 mm (40,000L)
|
|
Model
|
XM9400GRY
|
|
Material:
|
Carbon Steel
|
|
Compartment:
|
3 (12000L + 16000L + 12000L)
|
|
Capacity(kgs):
|
40,000L
|
|
Tare weight(kgs):
|
9,200kgs
|
|
Kingpin
|
JOST BRAND bolt-in 3.5”
|
|
Landing gear
|
JOST BRAND 19”
|
|
Tire size
|
Triangle brand 11R22.5（14 sets）
|
|
Rim size
|
9.00*22.5（13 sets）
|
|
Axle
|
BPW brand 12 Tons,3 Axle
|
|
Leafs spring
|
Steel suspension with 8pcs of leafs spring
|
|
Brake system
|
RE 6 relay valve
|
|
Manhole:
|
Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
|
|
Discharge Valve
|
Aluminum alloy discharge valve with cover
|
|
Foot Valve
|
Pneumatic control DN80 aluminum alloy foot valves
|
|
Pneumatic Control system
|
1set Pneumatic Control combined switch
1unit emergency switch
|
|
Discharge Hose
|
2 units 3”×6M factory PVC hose with quick coupling on both ends
|
|
Vapor Recovery & Overfill system
|
Optional
|
|
Fire Extinguisher Carrier
|
2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
|
|
Electric system:
|
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
|
|
Prime & Topcoat painting
|
S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
|
|
We can build the trailers according to customer’s design and requirement
|
Quality Guarantee
1. More than 30 years experience in manufacturing
semi-trailers since 1984.
2. One year warranty on the chassis of semi-trailer.
3. Spare parts support service.
4. The best brand-Wabco brand of braking system to
ensure the brake performance and keep the driver safe.
5. Heavy duty design especially for the bad road
condition in Africa.

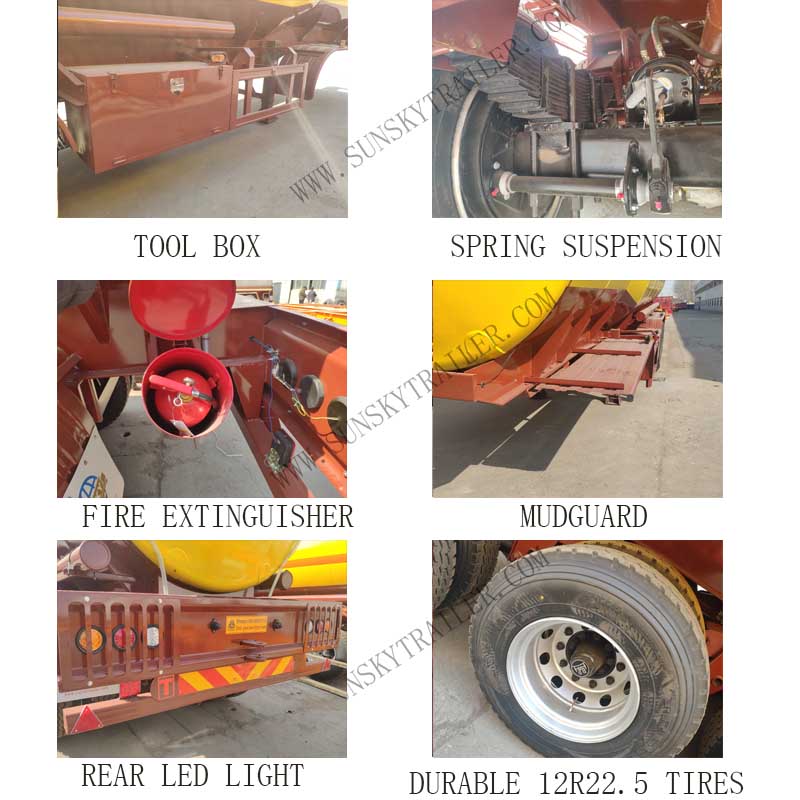

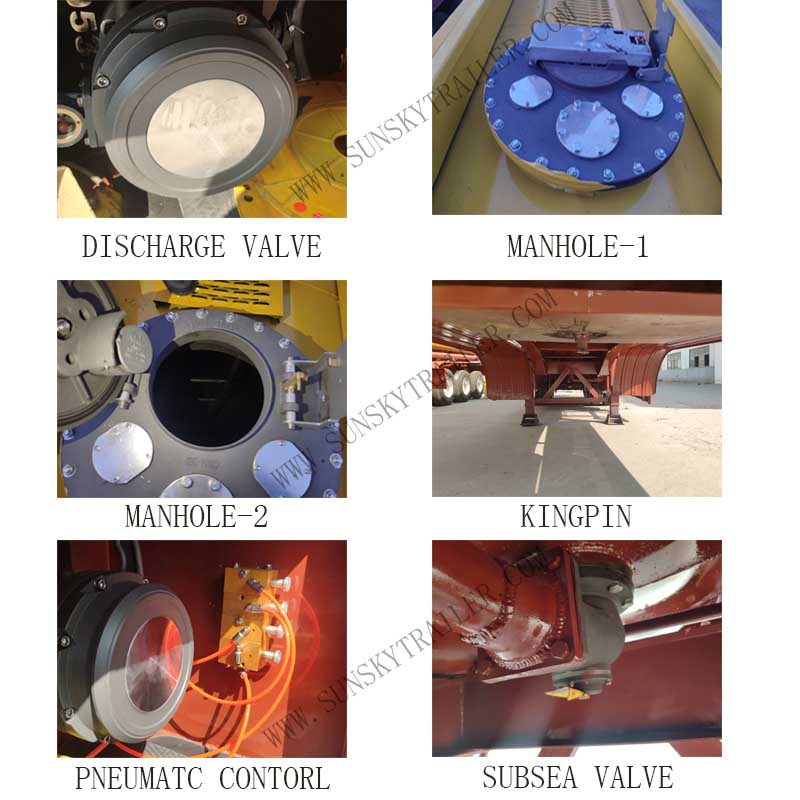

Detail Photo of china fuel tanker trailer
