| Product name |

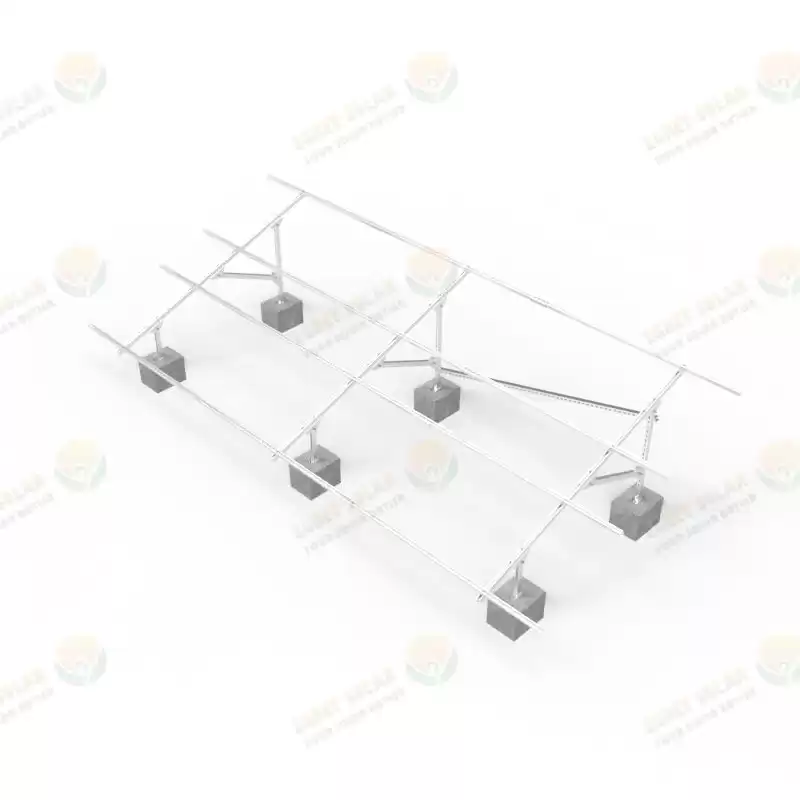

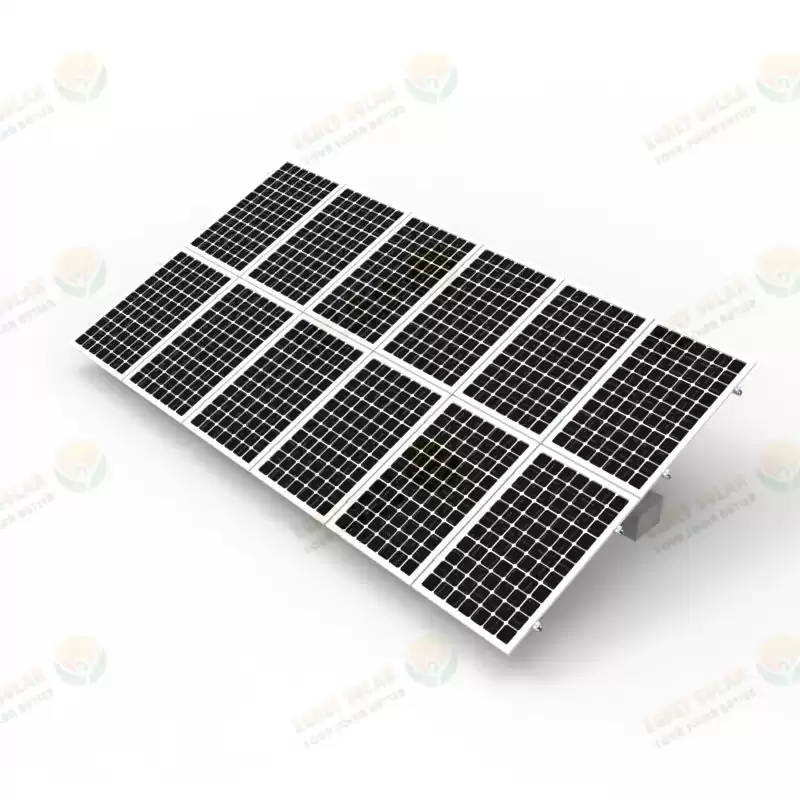

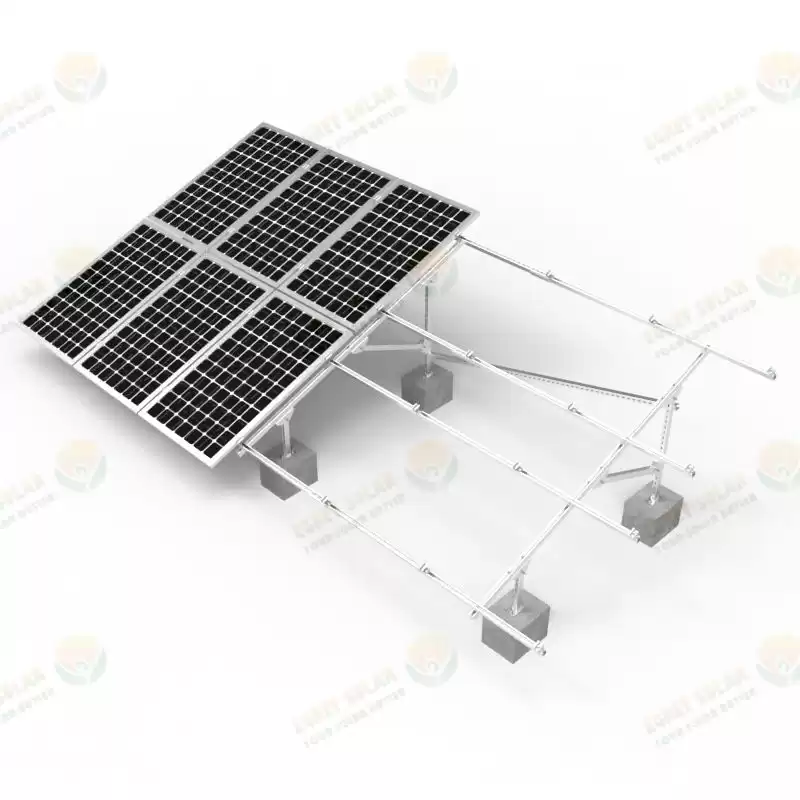

Flat Roof Carbon Steel Bracket Float Mounting System |
| Model Number |
EG-RM02 |
| Installation Site |
Flat Roof Mounting System |
| Surface Treatment |
Aluminum Andized |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
25 YEARS |
| OEM Service |
Avaliable |
Product Description
The flat roof carbon steel bracket scheme is suitable for the installation of flat roof concrete foundation or expansion bolts of solar photovoltaic power stations, with simple structure, convenient installation and transportation, and cost saving.

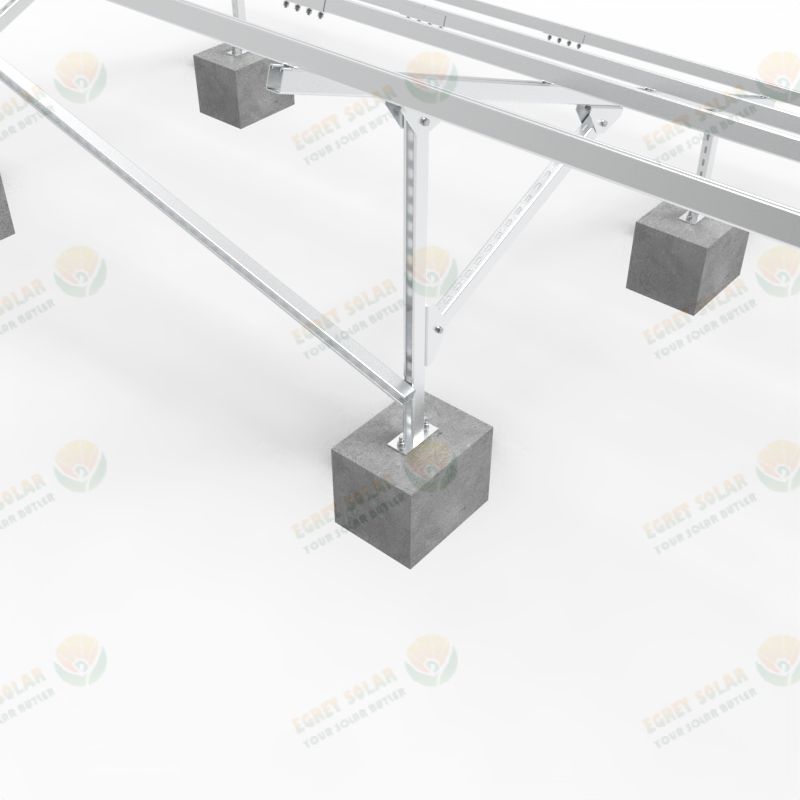

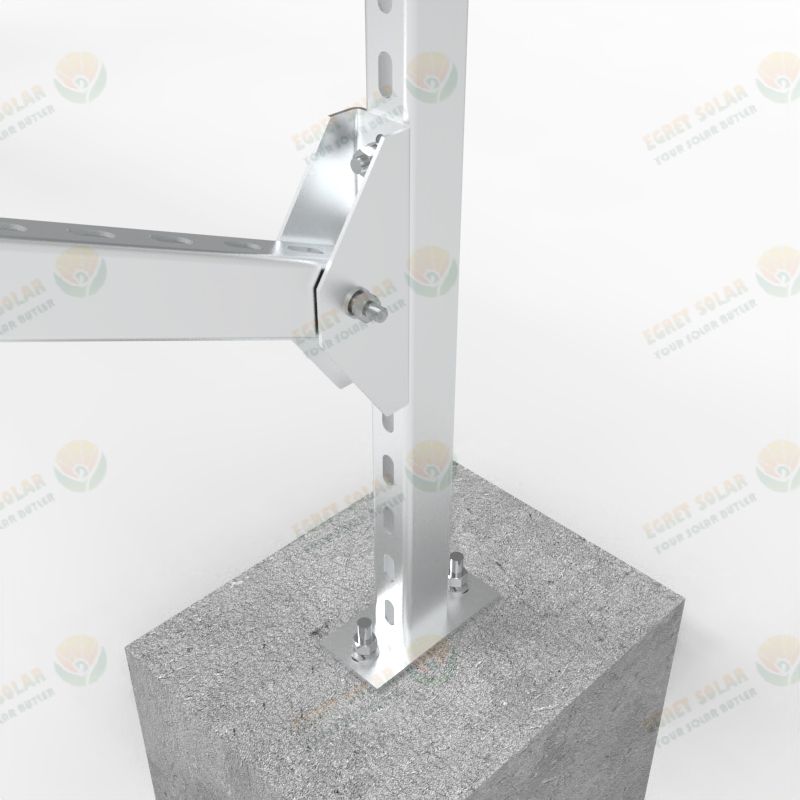

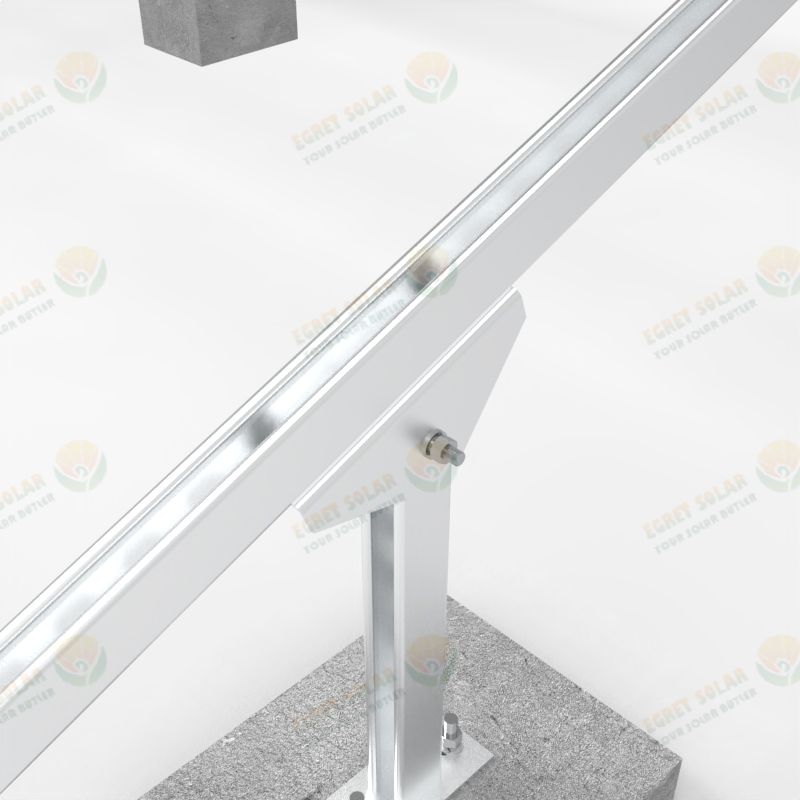

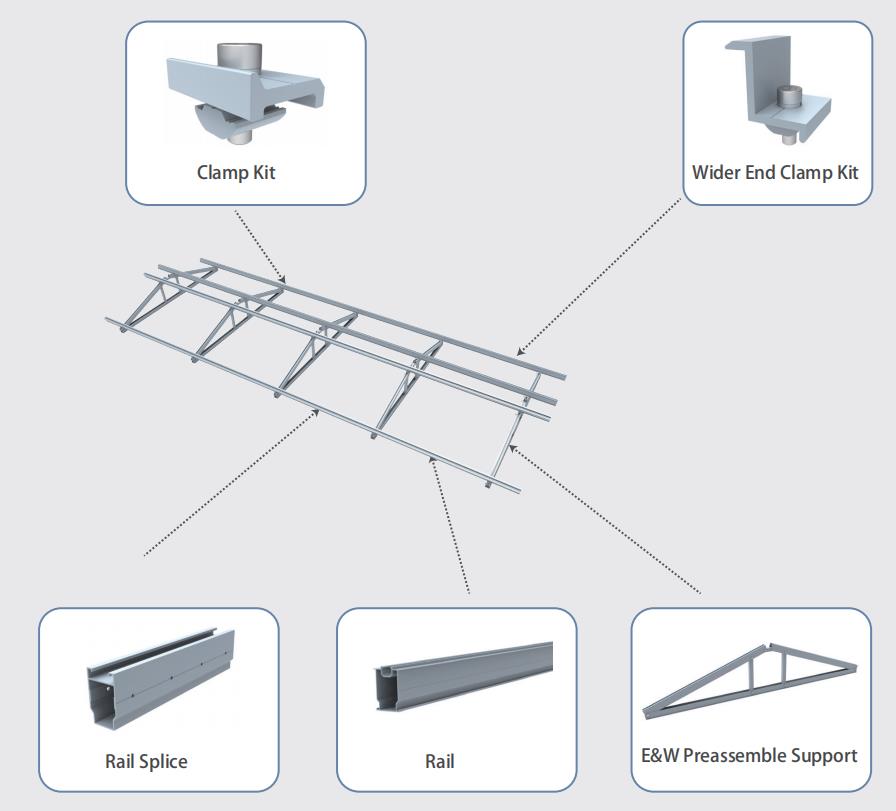

Exploded View

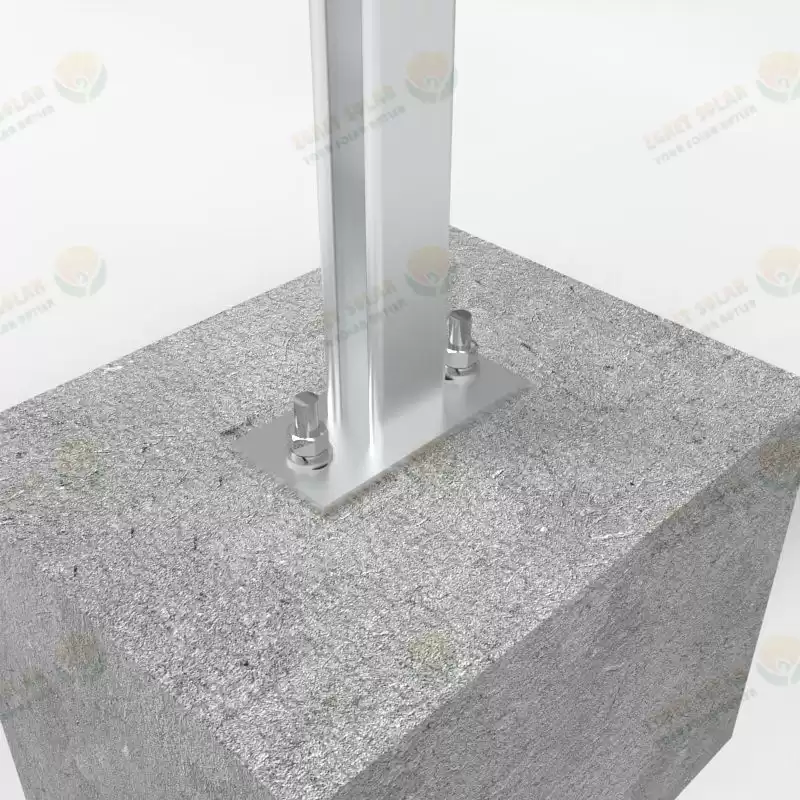

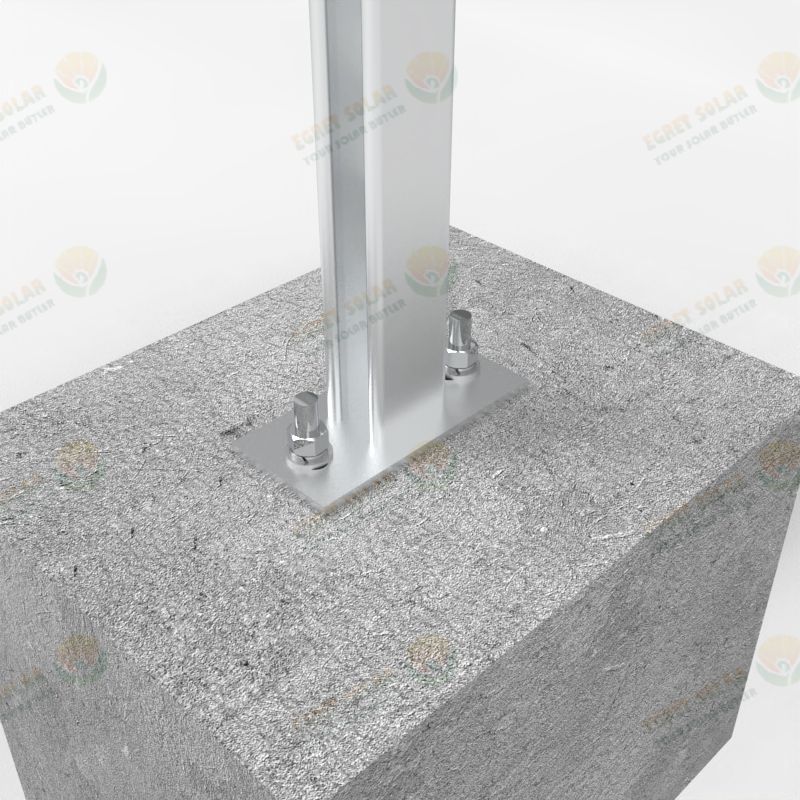

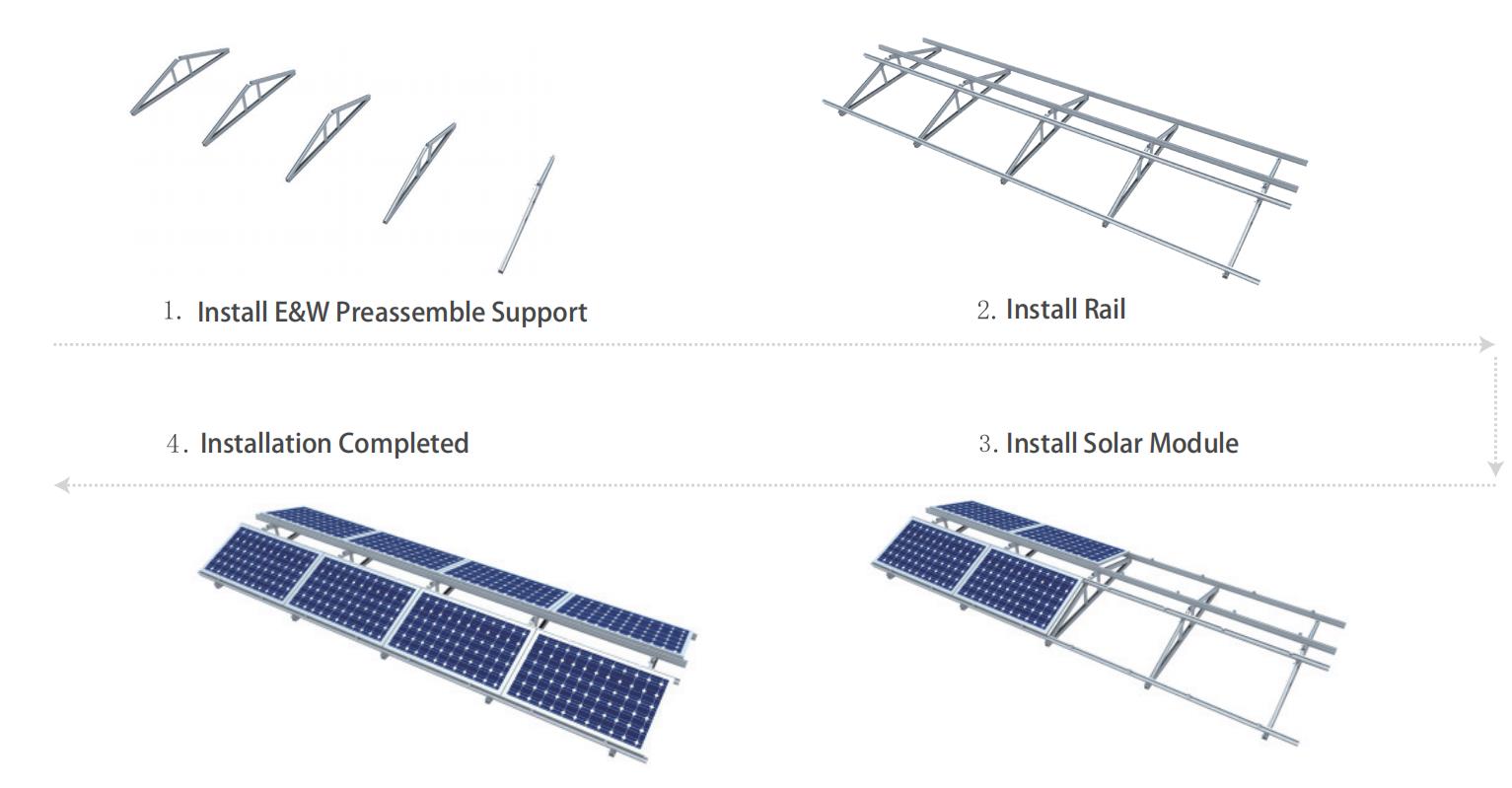

Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
