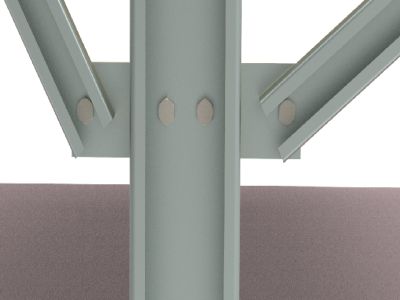

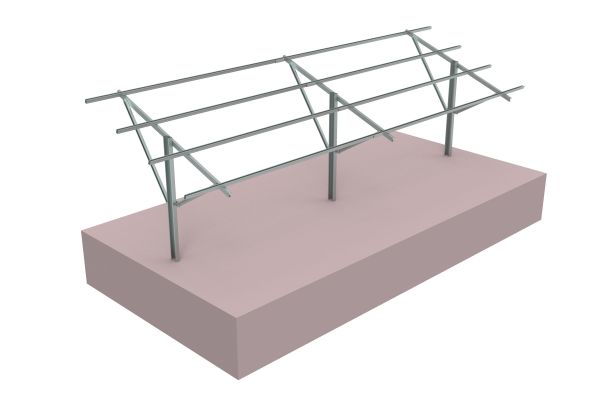

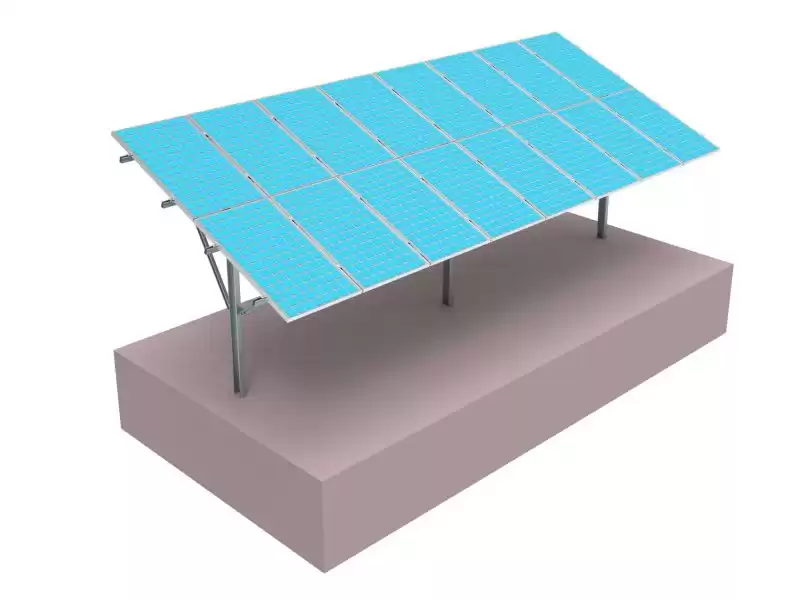

Our Pole Ground Mounting uses steel beams for vertical supports.it support beams bolt to a base with leveling bolts
and is seasonally adjustable with 0-45°。We provide broad installation flexibility and offer unmatched durability .
It can Stand up to extreme weather.
|

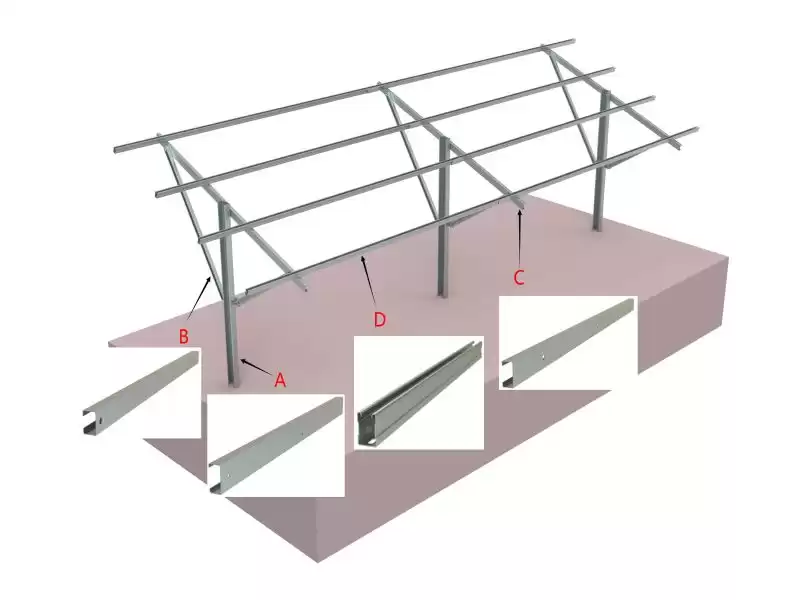

A
XHF-SG3-L, support leg
|
B

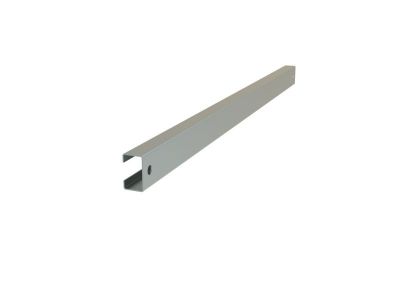

XHF-SG3-B, steel beam
|
C

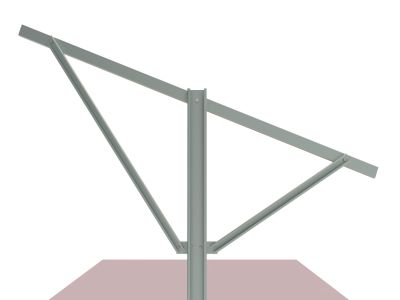

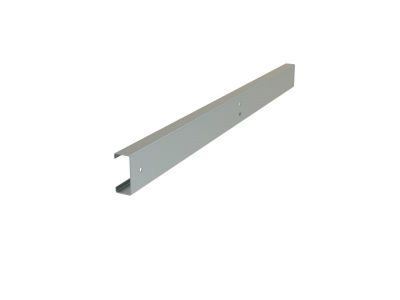

XHF-SG3-TL, tilt leg
|
|
D

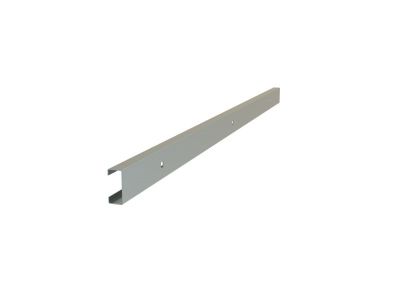

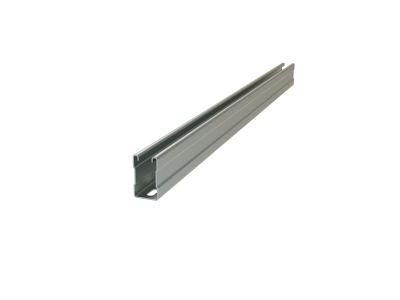

XHF-R04, steel ground rail
|

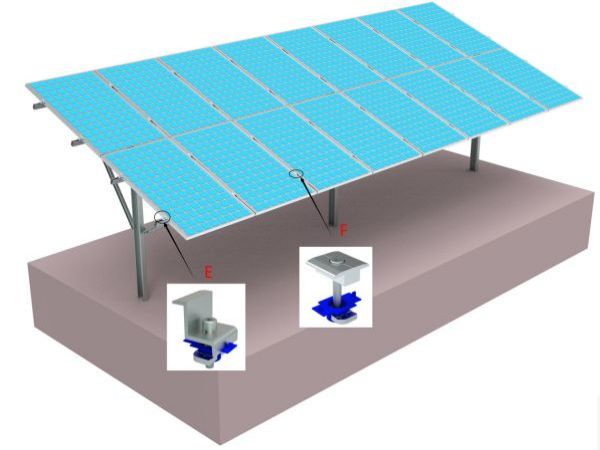

E

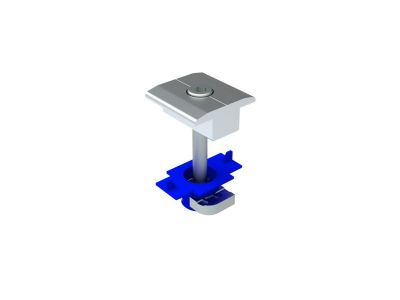

XHF-IC-40C, middle clamp
|
F

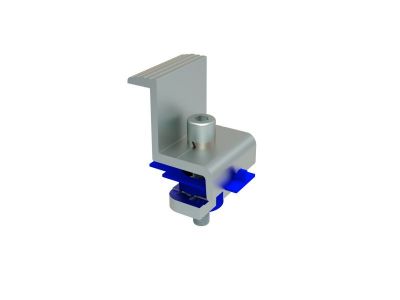

XHF-SC-40C, end clamp
|
|
Parameters
|
|
Application
|
Open ground field Module Tilt Angle: 5-40 degree
|
Max Wind Speed
|
60 m/s
|
Snow Load
|
1.4 KN/m2
|
Material
|
Hot dipped galvanized steel
|
Foundation
|
Ground screw or concrete block
|

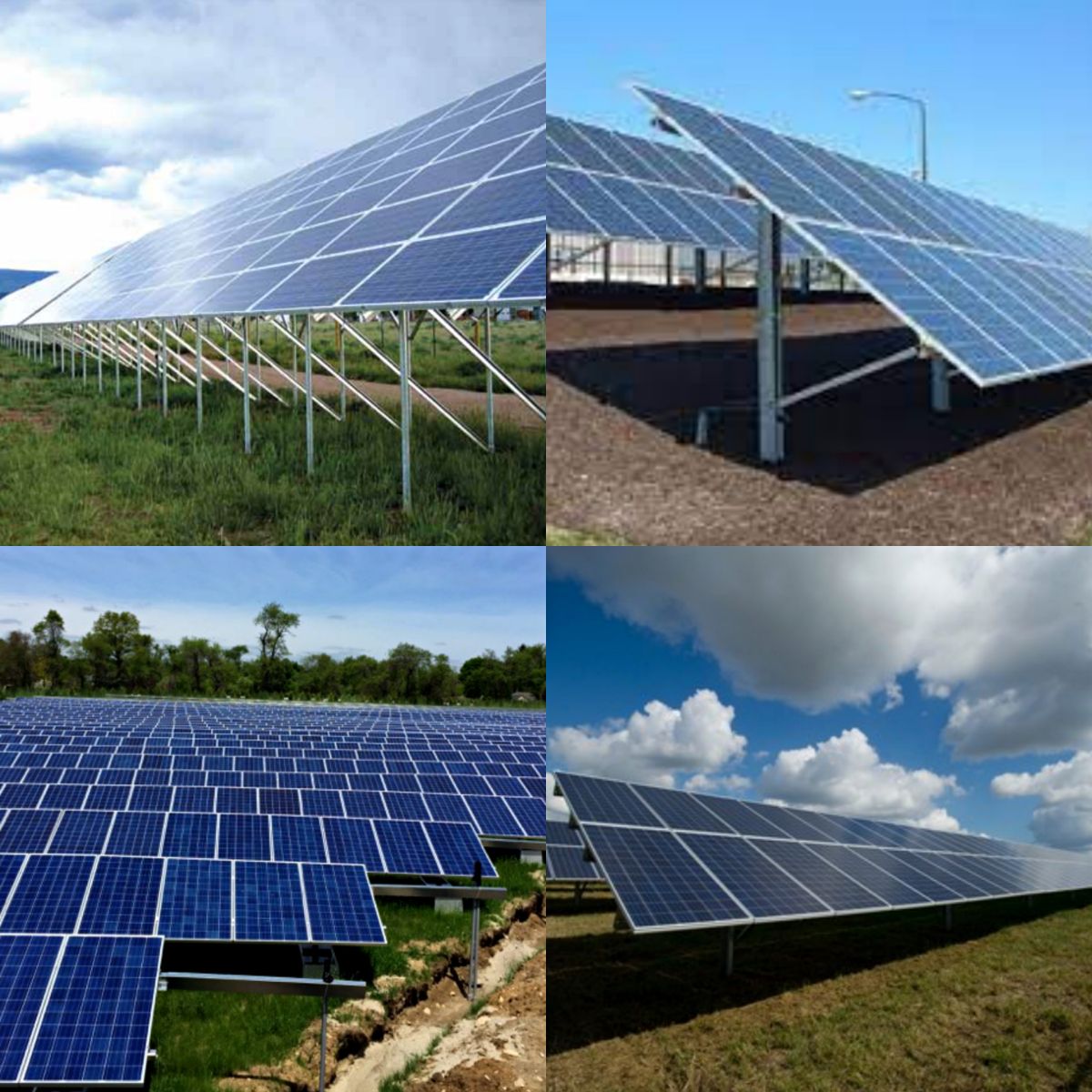

Pole mount solar systemsare often found on rural properties with large tracts of cleared land and can be applied to large commercial scale installations.Structure is made by hot dipped galveaniz
They are also a good choice for university and corporate campuses, government facilities, healthcare centers and more.
Pole mountingis one of the easiest and most straightforward types of solar installation. With pole mounting, there are fewer restrictions on where and how you can set up your solar system.
A pole mount solar installation is also the easiest to equip with a sun tracking system that will ensure maximum exposure — and maximum productivity — over the course of the day.
Because the panels are raised off the ground, pole mount systems allow for easier maintenance and cleanup.
|

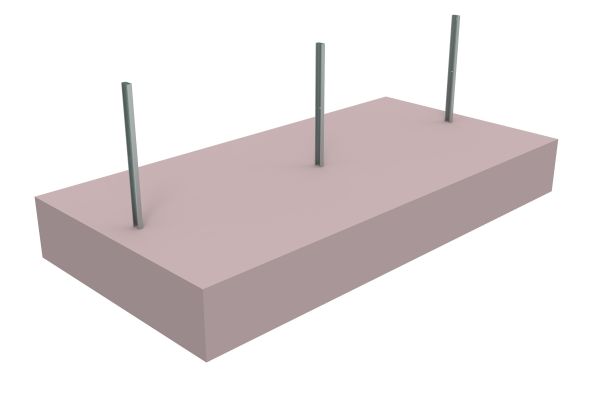

Step 1:
Install support leg on ground.
|

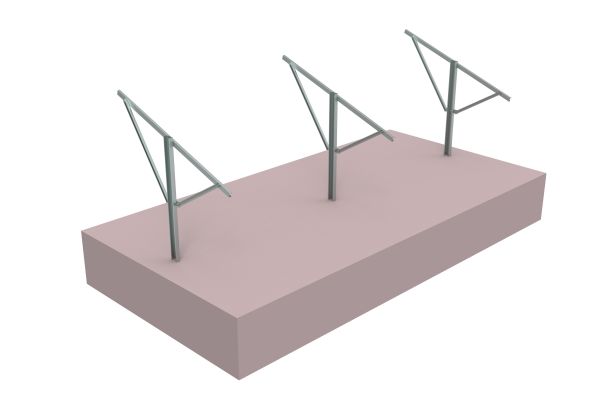

Step 2:
Fix steel beam and tilt leg on support.
|
|
Step 3:
Fix steel ground rail on beam one by one.
|
Step 4:
Fix panel on rail until finish.
|
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
Price
|
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
|
Quality
|
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
|
Market
|
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
|
Delivery time
|
7-30 days
|
Payment term
|
Flexible
|
Tech support
|
OEM,OGM
|
After Service
|
10 years warranty+ 25 long service
|
