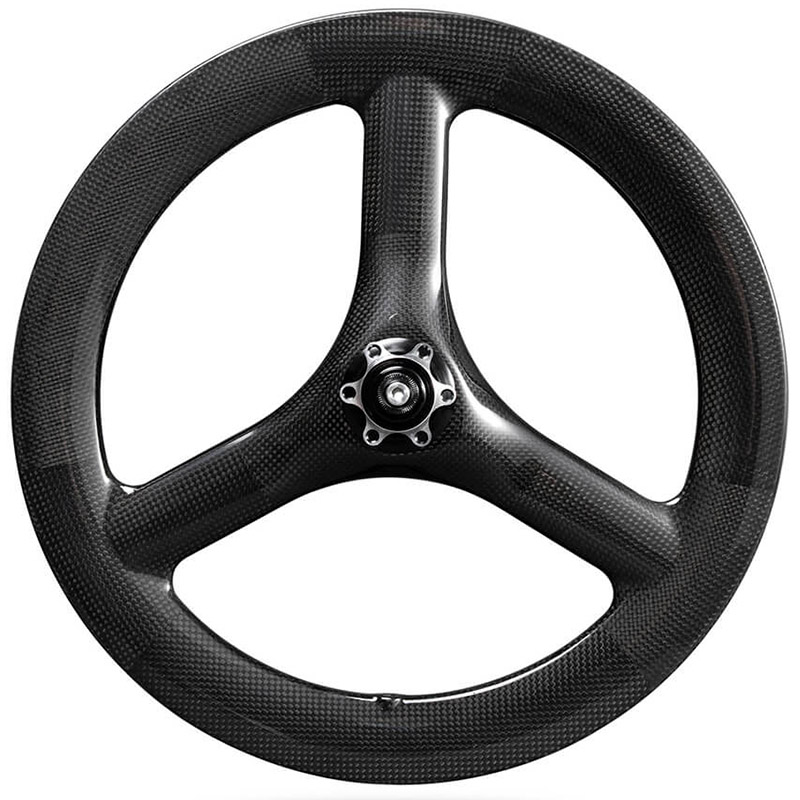

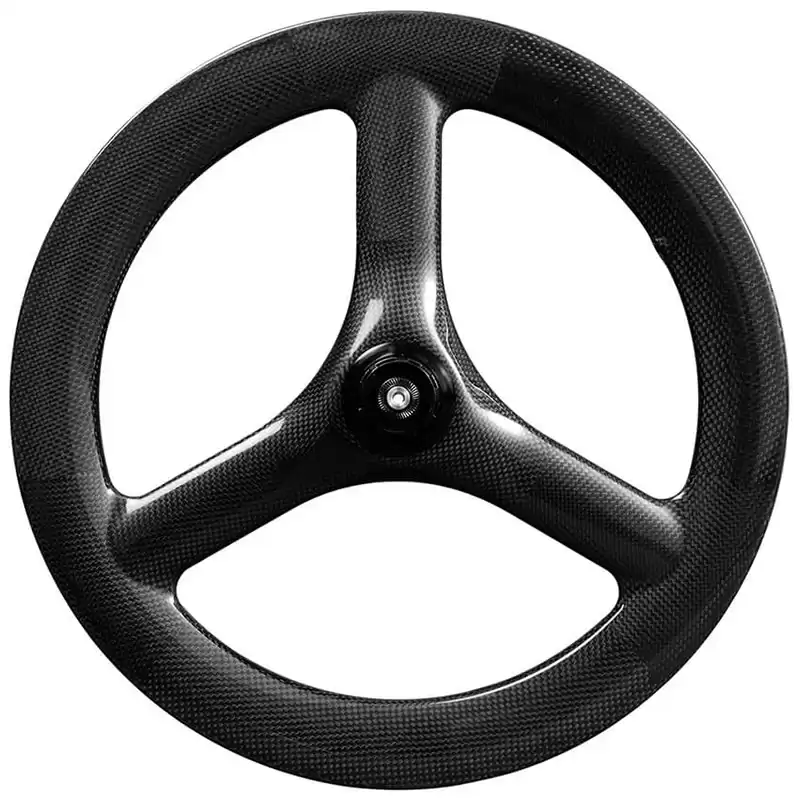

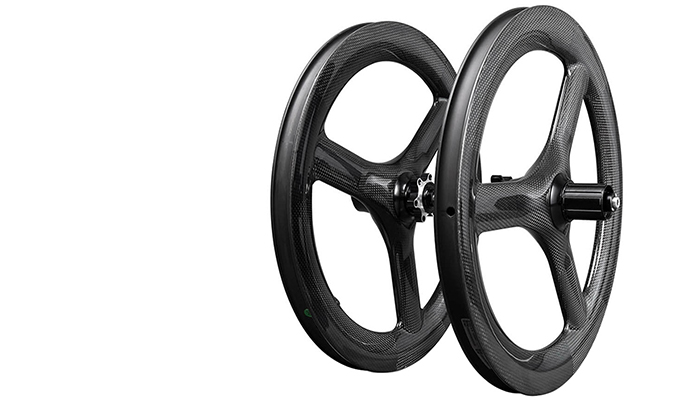

CARBON TRI SPOKE WHEELS 16 INCH 349 DISC BRAKE
DESCRIPTION
Lightweight with more capabilities than you can imagine the 16 inch 349 folding ride carbon tri spoke wheels disc brake has you covered from commuting to recreational fun, it was designed to tackle all types of riding and styles.
Disc brake version: E-Thru Axle 142mm or 6-Bolt 135mm optional.
There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with a air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels.

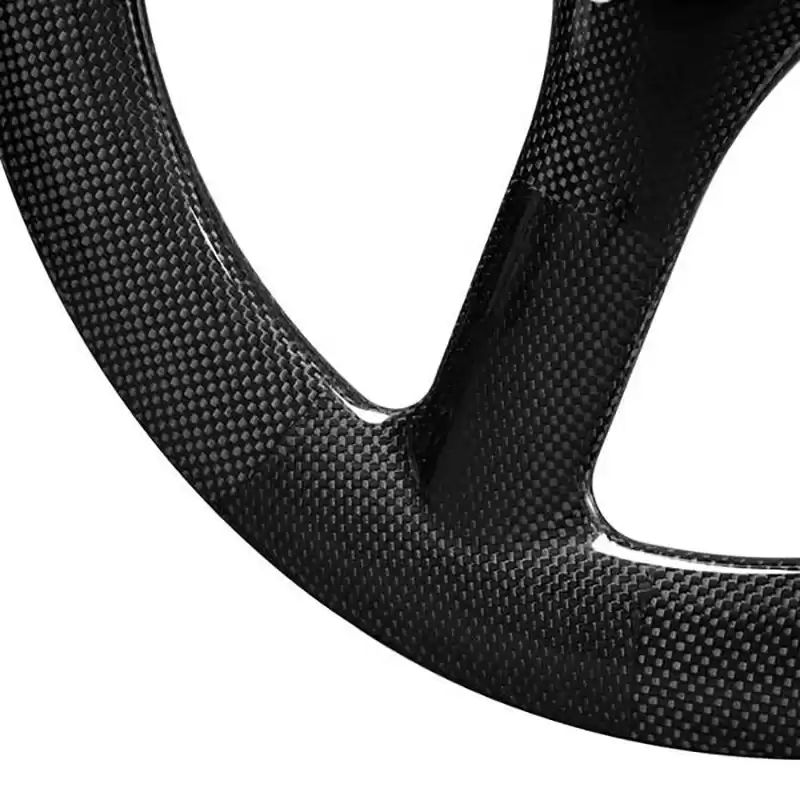

CARBON WEAVE PICTURE DISPLAY
WHEELSET SPECS
|
Model
|
Orn3-16"-349-D
|

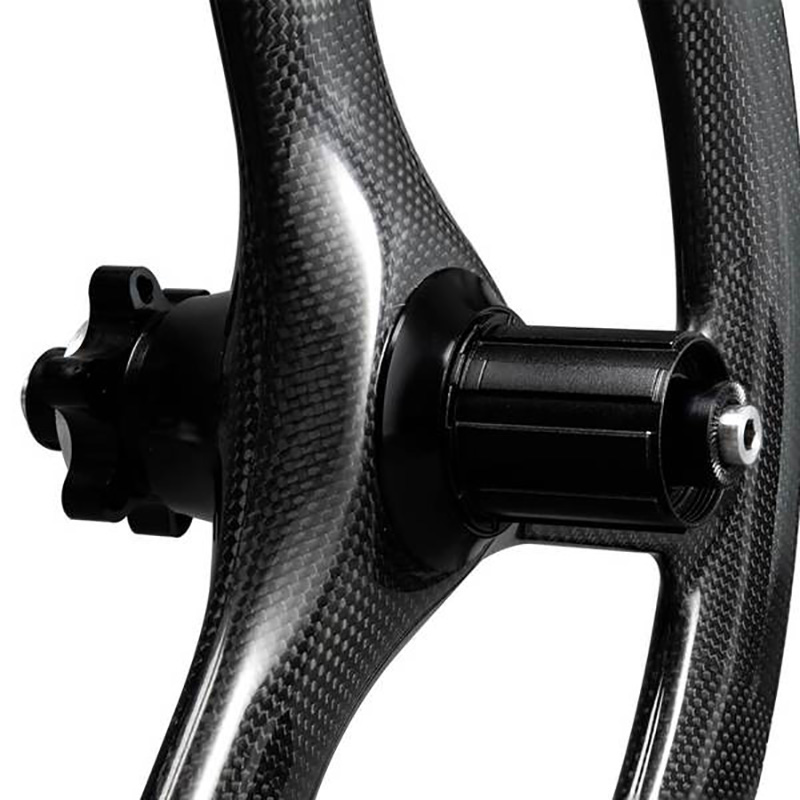

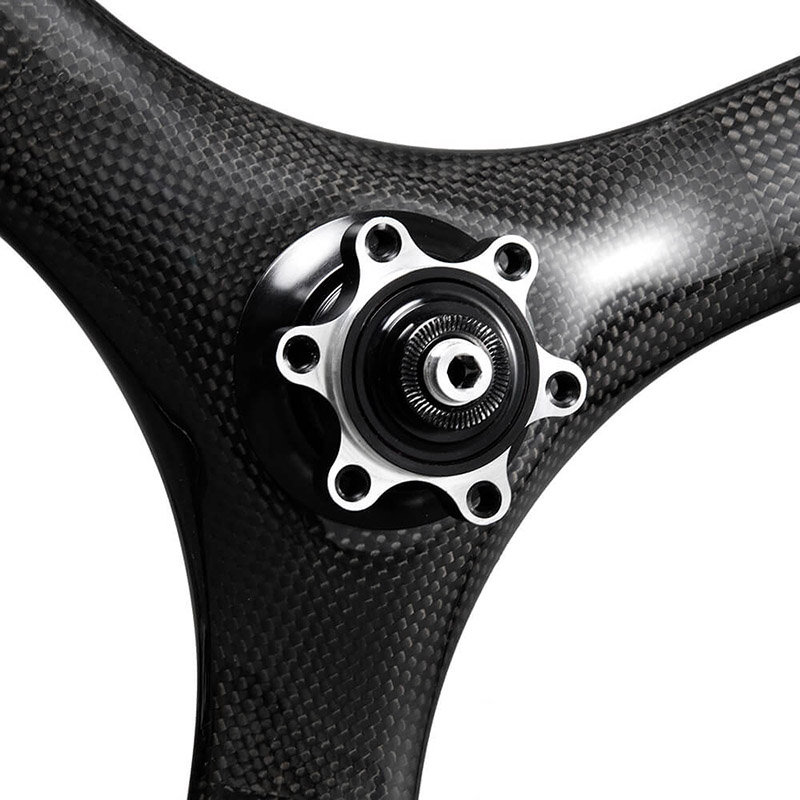

Hub Specifications
|
Sectional Drawing
|
|
|
|
|
Use
|
Folding/Brompton/Road
|
Hub
|
Fastace
|
Fastace
|
|
Type
|
Clincher
|
Bearing
|
Front: Japan EZO, Rear: Germany FAG
|
Front: Japan EZO, Rear: Germany FAG
|
|
Tubeless
|
NO
|
Material
|
AL6061
|
AL6061
|
|
Internal/External Width
|
16mm/23mm
|
Front Axle Size
|
12 x 100mm
|
9 x 100mm
|
|
Depth
|
40mm
|
Rear Axle Size
|
12 x 142mm
|
10 x 135mm
|
|
OD
|
361mm
|
Driver Body
|
Shimano 11S or Sram XDR
|
Shimano 11S or Sram XDR
|
|
Spoke
|
3S
|
Brake System
|
Disc E-Thru Axle
|
Disc 6-Bolt
|
|
Weight Limit
|
130kg
|
|
|
|
|
Tire Recommended
|
16" x 1-1/4, 1-3/8
|
|
|
|
