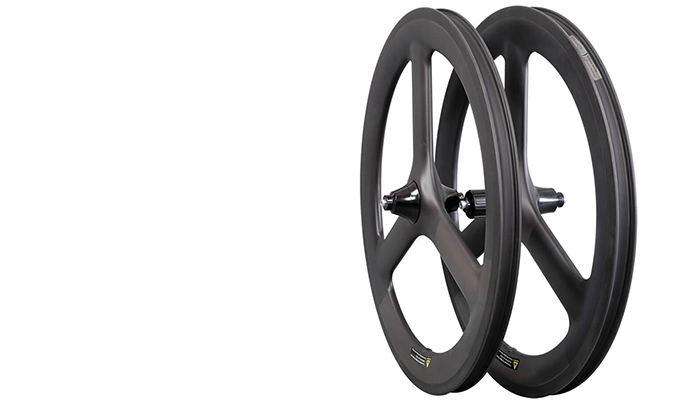

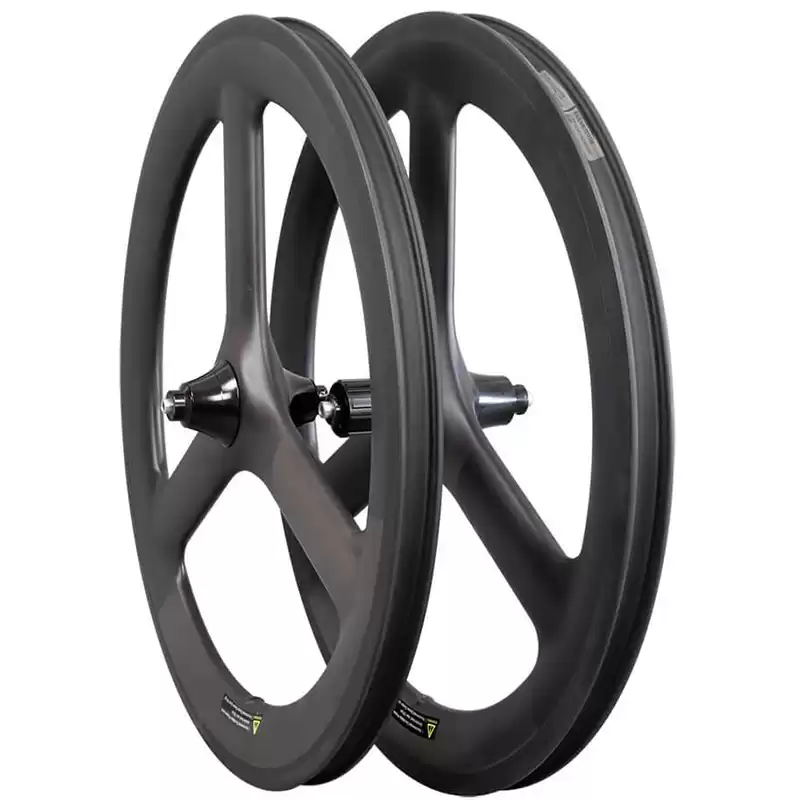

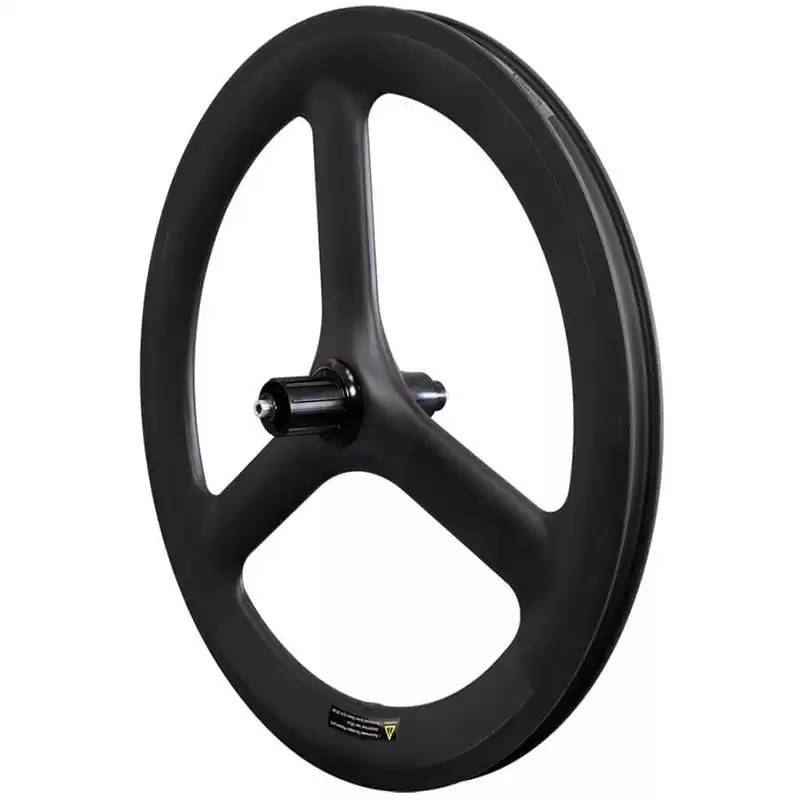

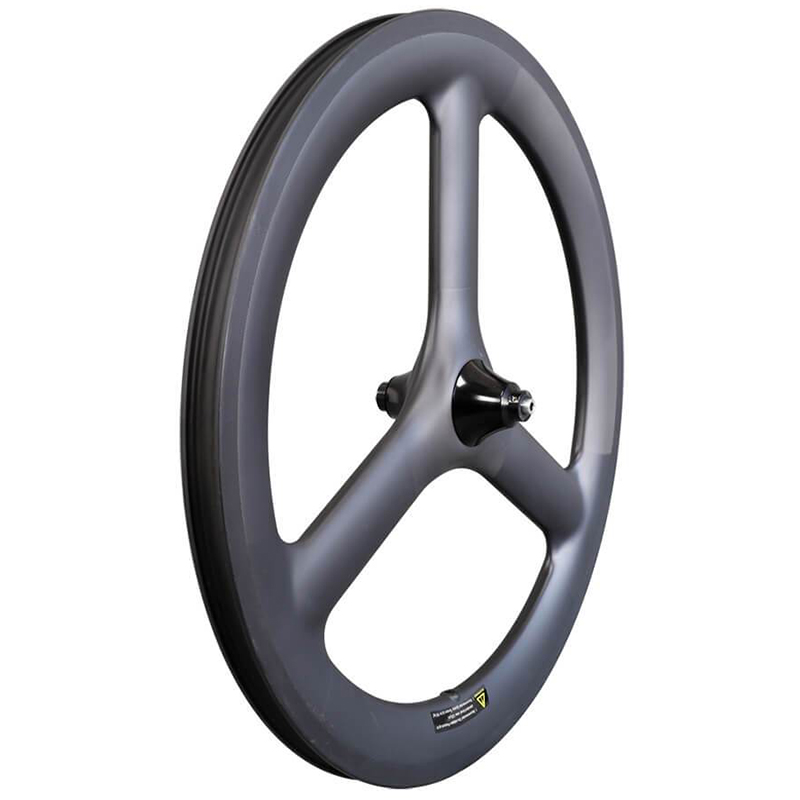

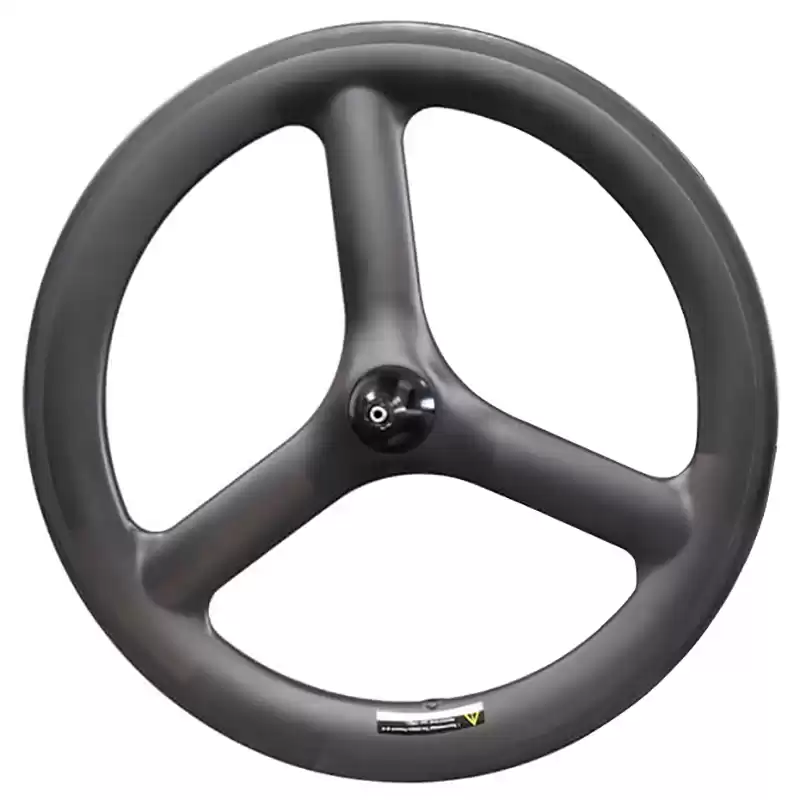

CARBON TRI SPOKE WHEELS 20 INCH 406 RIM BRAKE
DESCRIPTION
Whether you're riding to work, around town, or through the park. 20 inch 406 folding riding carbon tri spoke wheels rim brake has excellent performance, Let you reach your destination fast. suitable for advanced aerodynamic manufacturing and compatible with the design of tubeless tires.
There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with a air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels.
CARBON WEAVE PICTURE DISPLAY
WHEELSET SPECS
|
Model
|
Orn3-20"-406
|
Hub Specifications
|
Sectional Drawing
|
|
|
|
Use
|
Folding/Brompton/Road
|
Hub
|
Fastace
|
|
Type
|
Clincher
|
Bearing
|
Front: Japan EZO, Rear: Germany FAG
|
|
Tubeless
|
Ready
|
Material
|
AL6061
|
|
Internal/External Width
|
18mm/25mm
|
Front Axle Size
|
9 x 100mm
|
|
Depth
|
48mm
|
Rear Axle Size
|
10 x 130mm
|
|
OD
|
418mm
|
Driver Body
|
Shimano 11S or Sram XDR
|
|
Spoke
|
3S
|
Brake System
|
Rim Brake
|
|
Brake Surface
|
Basalt / 3K Twill
|
|
|
|
Weight Limit
|
130kg
|
|
|
|
Tire Recommended
|
20" x 1-1/8, 1-1/4, 1-3/8
|
|
|
