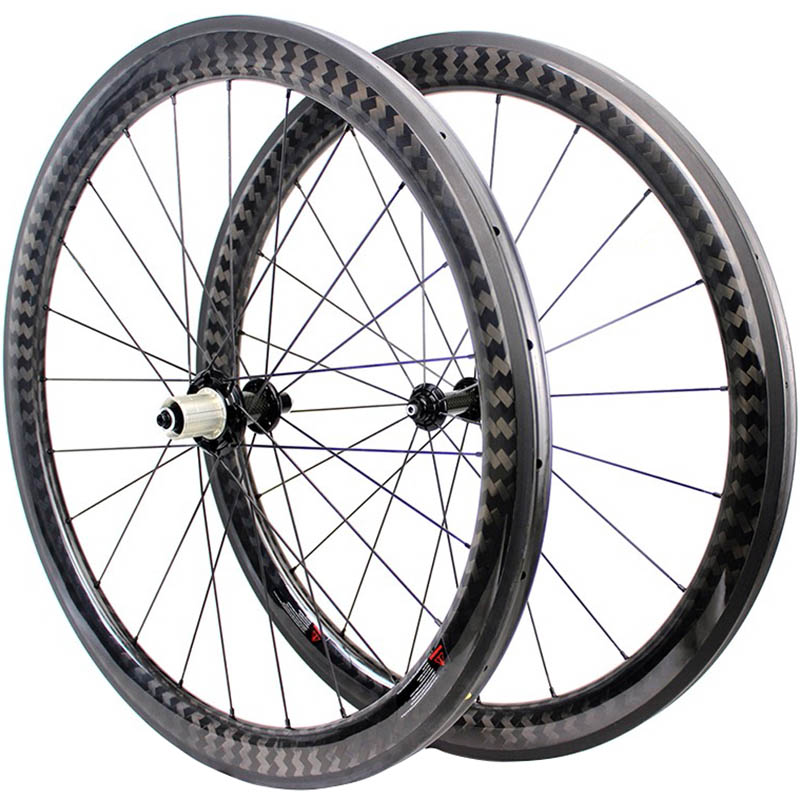

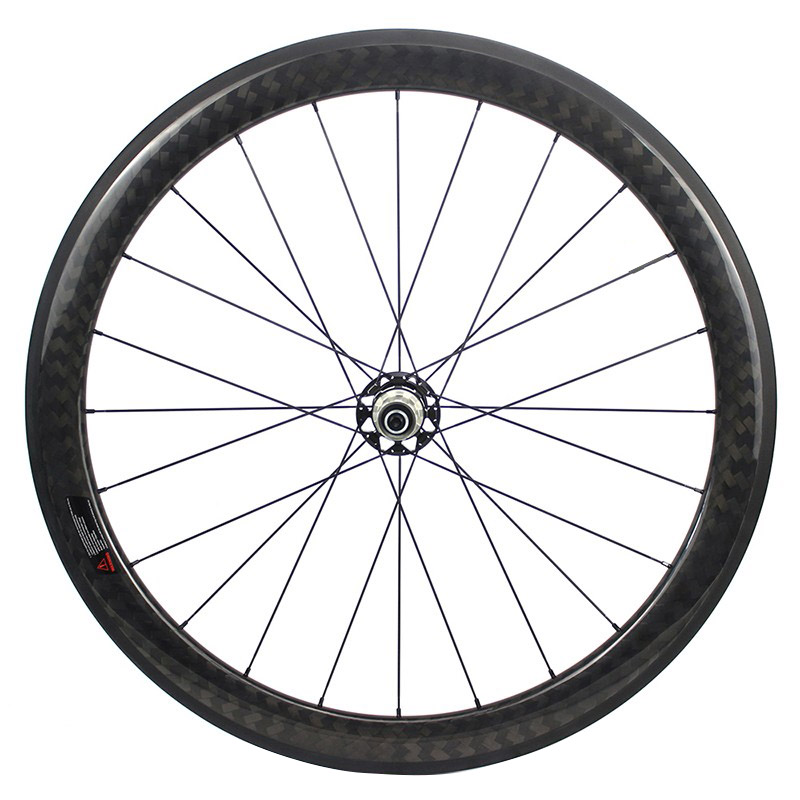

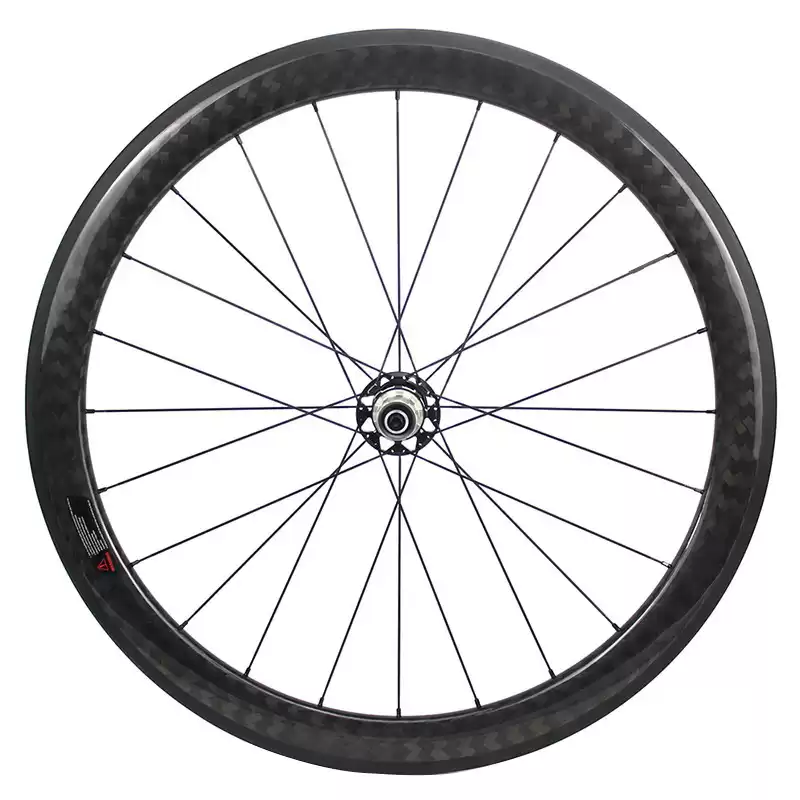

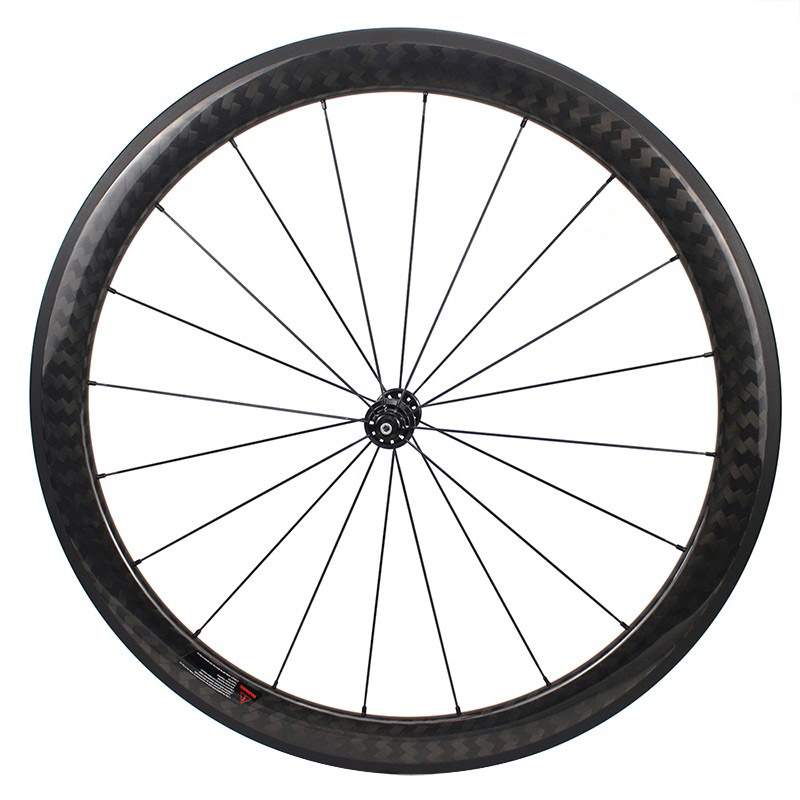

Carbon Wheelset 700C Road Bike Rim Brake Carbon Tubular 27mm Wide

The U-shaped cross-section design, carbon road rim brake 700C wheels with Powerway R36 hubs, 20mm internal width run into 25~35C tires in daily riding. Wheels with Powerway hub is with more economic price for carbon bike beginner or someone on a tight budget. The carbon 700C road bike wheels 27mm outer width and 20mm inner width with 38/50/60/88mm depth, Whatever you want the shallow rim to save the rim weight or higher profile for time trials. There will be one to meet your need. perfect for your daily training, riding use.

FEATURES:

- Aerodynamic advantage

- Double wall design, for better strength and stiffness

- High TG 255°C braking surface

- Hubs optional: DT Swiss or Powerway hubs

- Sram XDR or Shimano 11S and Campy 11S driver bodies

- 2 years' quality warranty

SPECIFICATIONS

Model	Orn727-38T	Orn727-50T	Orn727-60T	Orn727-88T
Cross Section
Sectional Drawing
Material	T800	T800	T800	T800
Use	Road	Road	Road	Road
Type	Tubular	Tubular	Tubular	Tubular
External Width	27mm	27mm	27mm	27mm
Depth	38mm	50	60	88mm
ERD	568mm	544	524	468mm
Weight	365+/-15g	420+/-15g	450+/-15g	540+/-15g
Weight Limit	125kg	130kg	135kg	145kg
Spoke Tension	100 ~ 110kgf	100 ~ 110kgf	100 ~ 110kgf	100 ~ 110kgf
Tire Recommended	25C ~ 32C	25C ~ 32C	25C ~ 32C	25C ~ 32C

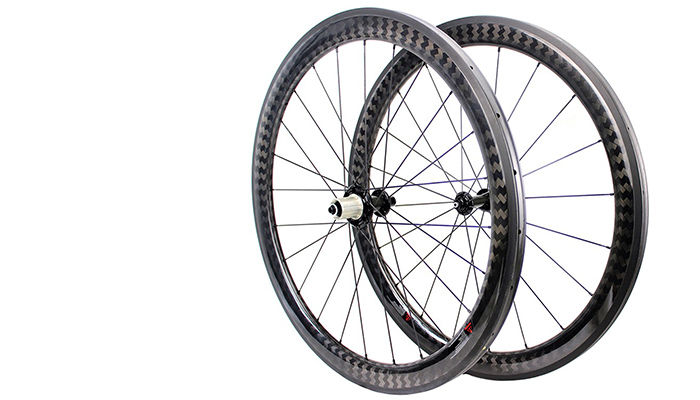

700C CARBON WHEELSET R36 HUB RIM BRAKE WITH 27MM WIDE TUBULAR RIM

* Complete wheelset weights are subject to a ±3% variance.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.

* Choose your favorite carbon rim model and Hubs, leave a message below with the wheels item number (such as R36-ORN727/38T-Pillar 1423) to get the best quote for your next carbon road wheelset!

TECHNOLOGY

1. High TG 255°C Brake Surface

High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.

2. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.

3. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.

4. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.

CARBON 700C RIM BRAKE WITH DIFFERENT BRAKING SURFACES

BRAKE SURFACE:

We have 5 different brake systems for professional cyclists to choose from. The high TG resin temperature of the 250° brake track solves the heating problem on the bicycle wheel of the rim brake.

If you have special requirements for the brake system, Grooved 3K twill will be your best choice.

The grooved track helps to evacuate trapped moisture between the brake pad and carbon rim under wet. it bears a higher temperature while braking, but for faster braking heat elimination. More friction, less lever force needed, and shorten about 30% braking distance. More friction to shorten the braking distance.

MANUFACTURING PROCESS:

Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here

100% QUALITY INSPECTION:

In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here

WARRANTY POLICY:

Coverage: 2-year warranty from the date of purchase.

Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.

2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.

3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.

Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).

2. Improper assembly or maintenance, including maintenance by an unauthorized technician.

3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.

CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:

Please thoroughly inspect the package before signing.

1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.

2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.

3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.

WHEEL BUILDING TECHNOLOGY:

Our carbon wheels are precise hand built.

Then trued by Holland Mechanics Pro Truer.

The perfect allocation of spoke tension in every spoke

relatively high spoke tension give many advantages:

- High radial, lateral and torsional stiffness.

- Less spoke tension loss over time.

- Longer durability.

- Less maintenance needed.

Wheel roundness tolerance: ≤0.3mm

Wheel lateral tolerance: ≤0.3mm

Wheel center tolerance: ≤0.3mm
