Carbonated Drinks and Syrup Water Cooled Screw Type Chiller

Carbonated Drinks and Syrup Water Cooled Screw Type Chiller

Introduction

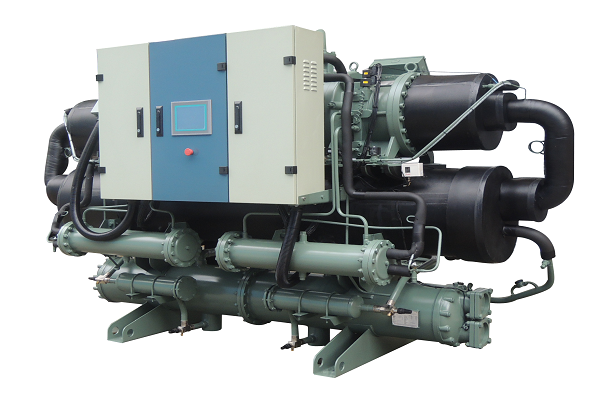

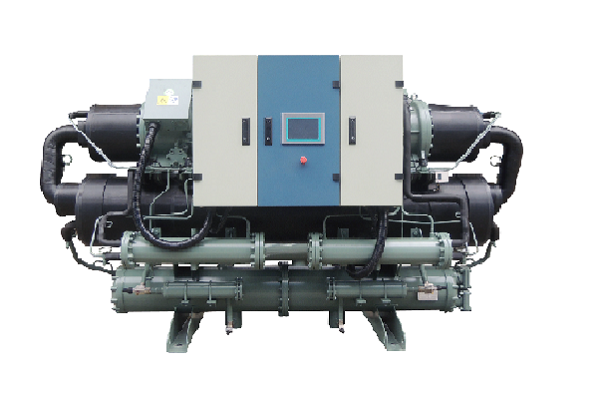

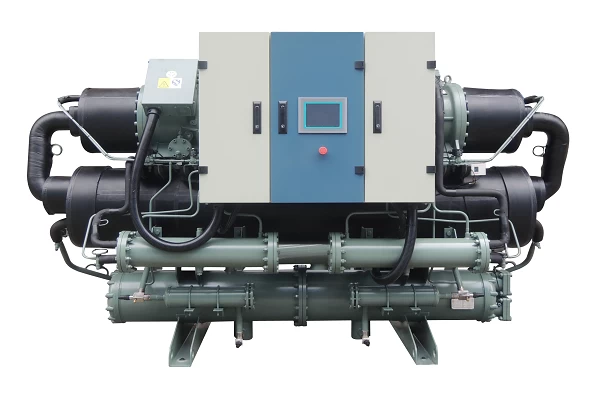

40STD series low temperature chiller is a series of products developed, designed and manufactured by H.Stars for refrigeration, refrigeration, food processing, quick freezing, industrial cooling and other industries. The unit has 350 standard specifications and is divided into five types according to the evaporation temperature. Each model has 70 standard specifications. The cooling range is 14200 kcal/h ~2036600 kcal/h, and the frozen aqueous solution temperature range is -35~10 °C. In addition to the standard specifications, various non-standard units can be customized according to user requirements. In addition, we can also produce salt water, high voltage and other power supply products.

Unit features:

1, Efficient

◆ The unit adopts twin-screw compressor to match the high-efficiency condenser produced by the star with the evaporator and the inlet expansion valve. The four components are perfectly matched.

◆ The unit is equipped with a stellar patented heat recovery unit. The heat recoverable under low temperature conditions is 30%-80% of the cooling capacity, and the maximum water temperature of the hot water can reach 70°C.

◆ When heat is recovered, the overall efficiency of the unit can be increased by 5%.

2, Reliable operation

◆ The unit has 7 kinds of safety protection measures to ensure the normal operation of the unit.

◆ The unit is designed for double circuit and double compressor. When a single compressor fails, the other compressor can still operate normally without affecting the customer's use.

◆ All units are tested by the national safety inspection system before leaving the factory to ensure that the unit performance meets national standards.

3, Intelligent management

◆ The unit adopts the microcomputer touch control system to provide the simplest and most thoughtful operation interface and timely feedback of various maintenance information.

◆ The unit control system can be connected to the user's central control system, and the customer can understand the unit's operation at all times.

4, Easy to install and maintain

◆ The unit has been filled with refrigerant and lubricating oil before leaving the factory. The customer only needs to connect the inlet and outlet pipes and the power supply to run.

◆ The control interface directly displays the fault content, which is convenient for timely understanding of the fault and elimination.

5, A variety of refrigerant options to meet the different needs of customers

   The unit can also provide R407C, R404a and other refrigerants according to customer needs.

Sample Project (Personalized customization)

1. Place: Cooling syrup and Carbonated Drinks

2. Capacity:260KW (According to customer requirement)

3. Compressor Type: Hanbell screw type

4. Power supply: 380v-3p-50Hz (According to customer requirement)

5. Refrigerant: R22, R404a, R407c, etc(Acoording to customer requirement)

6. Evaporator in/outlet temperature: 2℃/-3℃

7. Condenser in/outlet temperature: 30℃/35℃

8. Three water pump

(1) Internal circulation frozen water pump: Flow rate 60m³, Head 16.2m, Power 4KW

(2) External circulation frozen water pump: Flow rate 60m³, Head 16.2m, Power 4KW

(3) Cooling water pump: Flow rate 60m³, Head 16.2m, Power 4KW

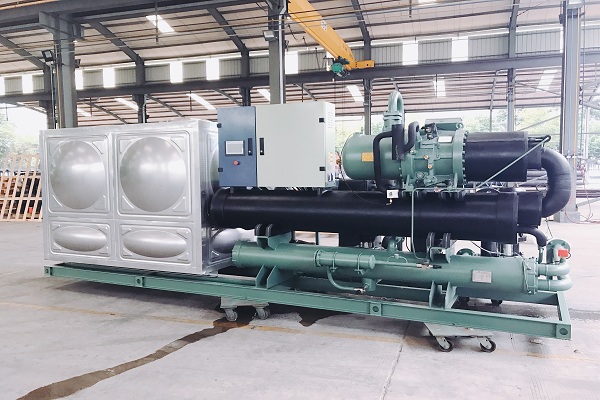

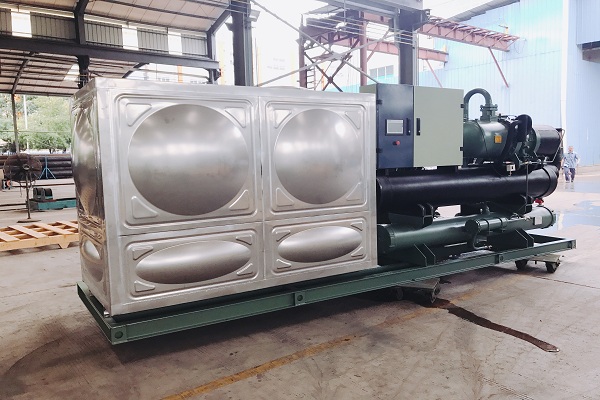

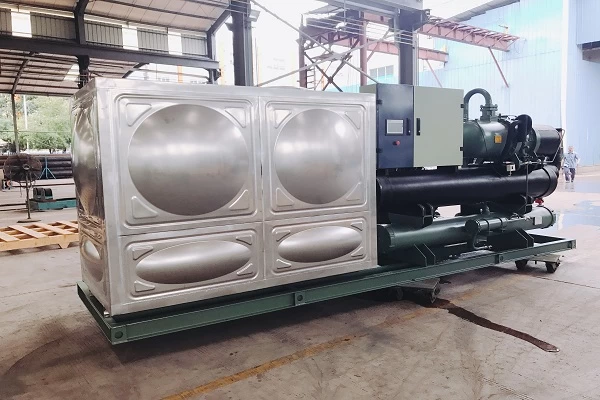

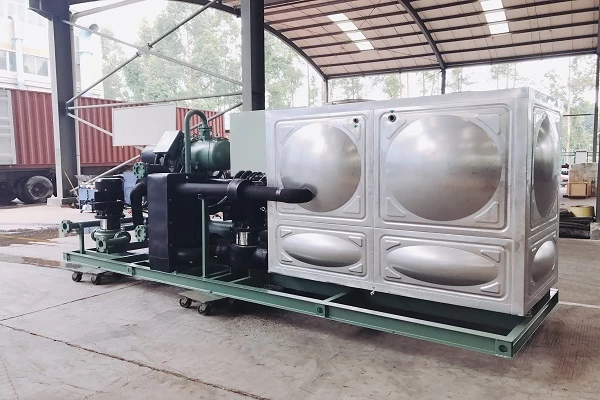

9. Chiller with a 3m³304# stainless water tank

10. Chiller with a 100m³/h cooling tower

11. Chiller with a stainless food level plate type heat exchanger.
