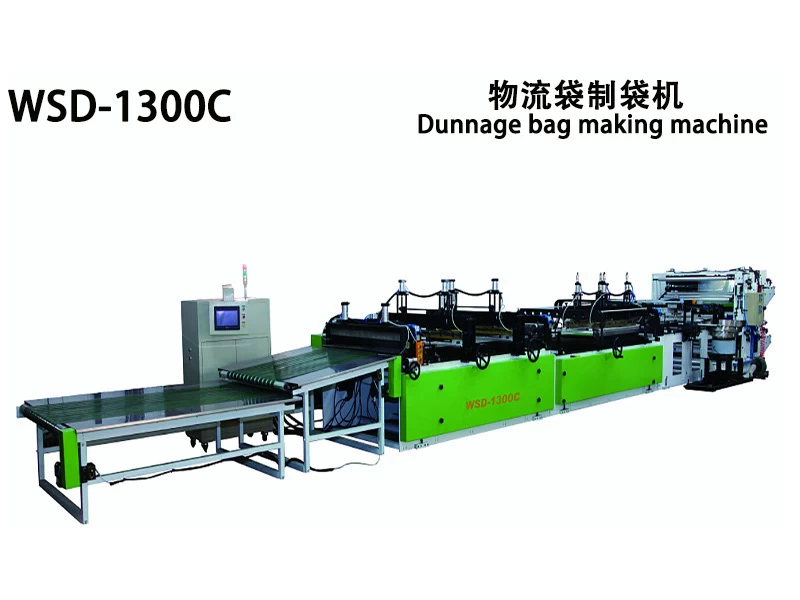

Four-side-sealing Welding tip & PA Bag Machine (Dunnage Air Bag Machine)
Application:
Four side sealing welding tip and PA bag machine is widely used to produce dunnage bag for ocean transportation, shippment, loading and others to guarantee machines or goods to be intact. Dunnage air bags made in our machine do well in buffering and absorbing shock, which is an ideal air pillow to protect goods.

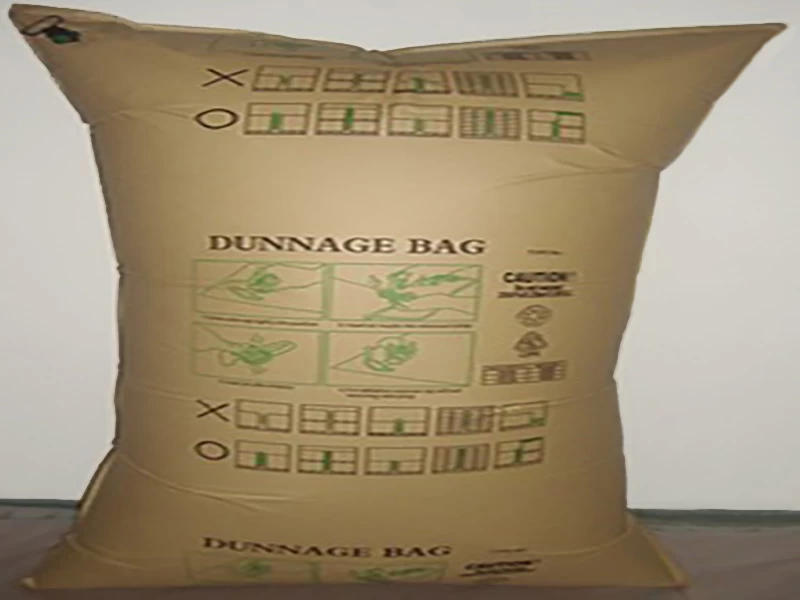

Cargo Cushion Air Bag :
Structure and its function

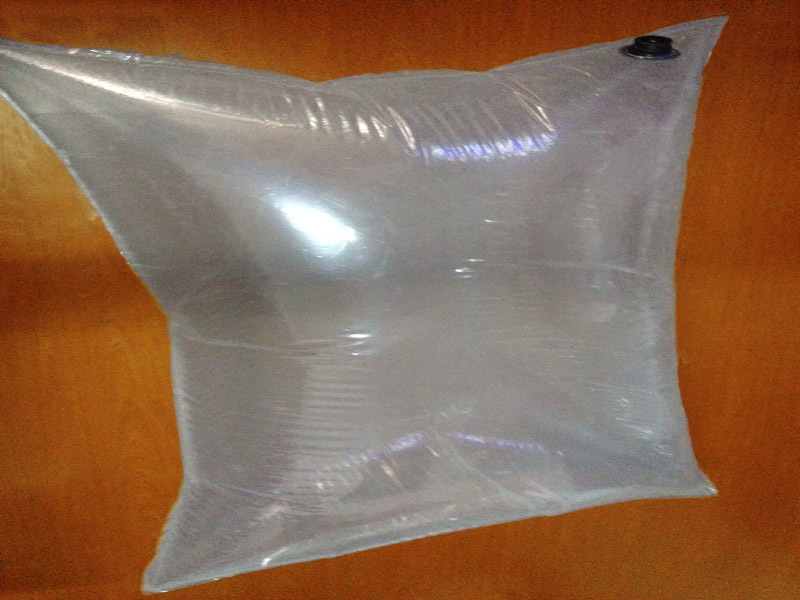

The inner bag is a plastic bag made of low-density polyethylene LDPE, and the outer bag is a composite material of kraft paper and plastic woven bag. It is assembled with air valve, which is tough and firm, airtight, waterproof and penetrating. It can fully fillthe gap between the goods,support the weight caused by goods-shaking, absorbs the vibration, and effectively prevents the collapse and movement of the cargo during transportation.
●Bag-making type: four-side sealing with welding tip
●Original film’s diameter and width:
Lmax(length of film roll)=1300mm
Dmax(diameter of film roll)=600mm
Max bag-making width=1200mm
●Bag-making length: 300-1200mm (to make the secondary hot press smooth, keep max traction length within 1200mm, and adopt multiple in-feed within 2 multiple material when traction length goes beyond 1200mm)
●Bag-making width: 700-1200mm
●Bag-making speed: 5-13 cuts/min

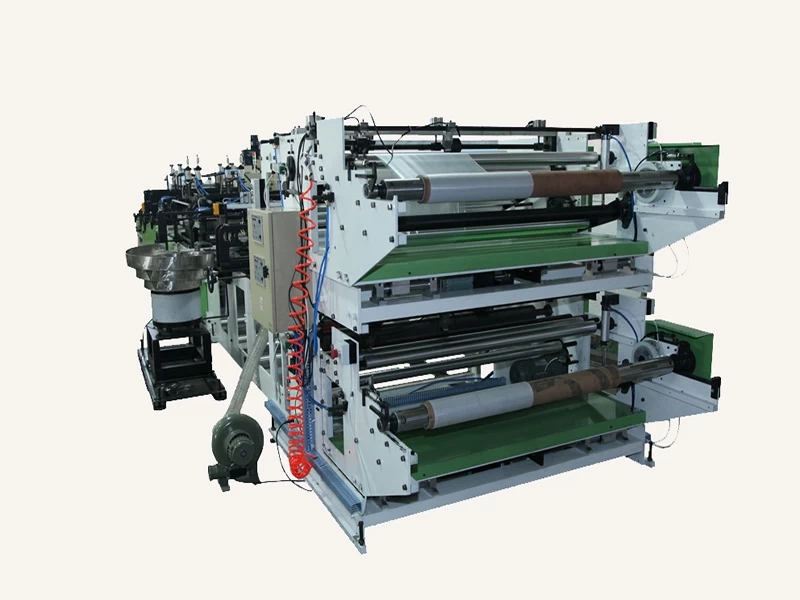

Unwinding devices:
●Unwinding motor: 750w reducer made in Taiwan
●Unwinding frequency conversion motor: 750w
●Deviation correction for unwinding: ultrasonic deviation correction
●Unwinding tension: two sets of automatically consistent tension devices, two rotary encoders and two magnetic powder brakes
Heating devices:
●Heating device for traverse-sealing: 1 group, length of 1700mm, cooling by cutter
●Heating device for longitudinal-sealing: 2 groups, heating on hot cutter with length of 1250mm, cooling by cutter
●Welding tip heating device: 1 group (dimension of tip will be provided by clients)
Control devices:
●Automatic control system with consistent tension
●Temperature control: PC control temperature in 16 lines
●Temperature control: precision of PC keeps within±2℃
●Electrical control: Panasonic PLC control & touch screen
Accessory:
●Feeding speed: 15 m/min (range by bag length)
●Traction: protraction with 3000w AC servo, mid-traction with 2000w AC servo and backward traction with 2000w AC servo
●Feed port: position of vibrating hopper (one set) port can be adjusted according to real sample bags
Machine parameters:
●Machine body is in silvery white and under orange cover
●Voltage: three-phase alternating current for 380V 50Hz
●Total power: 28kw
●Dimension: around 13000*3100*1860mm (length*width*height)
●Weight: 8000kg
