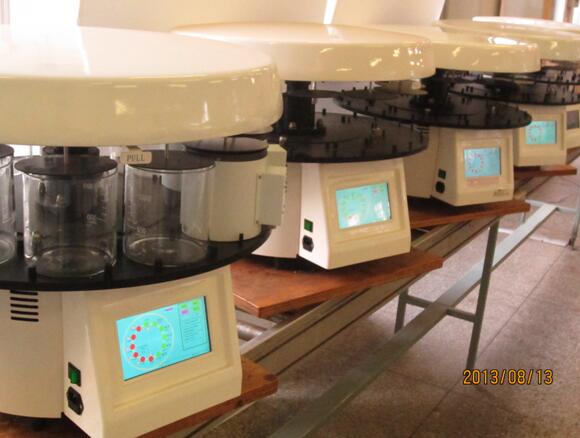

Carousel shape Automatic Tissue Processor :
Capacity: 1.3L and 2.3L
Model: one baskets ; two baskets
Feature:
--- Adopting computer to control whole work process,operate brief work stabilization.
---Having exchange jar and change place control draw perch,operate agility brief.
--- If lose electric give an alarm,protecting tissue in liquid,obstache,protect function and so on.
---Adopting agitation dehydrate mode,so tissue and solvent,paraffin meet,thereby well effect.
---Screen showing information is English,easy to use.
---Time design range wide:delay time 59hr59min. Each jar working hours longest 59hr59min,Time design least distance 1 min.
--- Wax jar adopt constant temperature control system. Temperature precision high:defend pollution,defend canker.
--- Adopting 9 slices 1.2Lmedicine aquarium,at any moment observe tissue change at work.
--- According to users need to tailor standby electrical source,after power cut it can work in great,working hours can reach 4-16hours.
Main Technical Data:
1: Steps of processing tissue: 12 steps

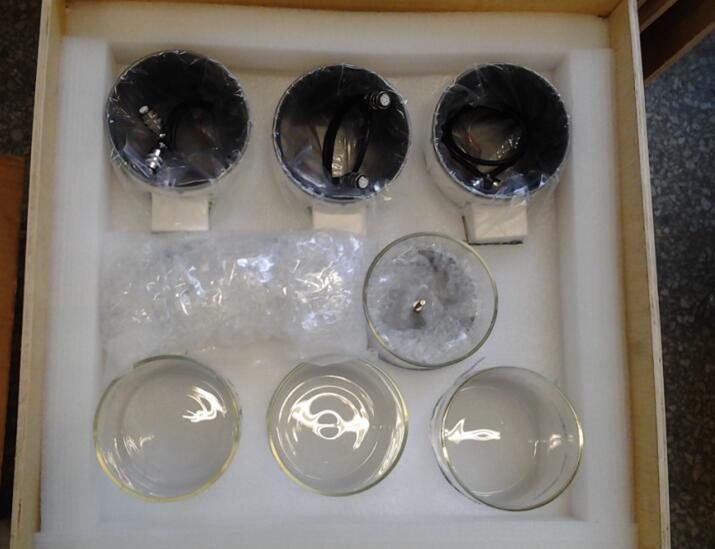

2: Glass container: Quarntity-9,
Capacity---1.3L
Capacity----1.3L x2 baskets
Capacity ----2.3L
Capacity ----2.3L x 2 baskets
3: Wax cup: Quarntity-3, Capacitance-1L
4: Temperature range: 45-85℃
5: Process: Each cup working hours: 0-59hr59min
Delay process:0-59 hr 59min
6: Vertically reciprocative motion of tissue basket: 3time/min
7: Tissue basket specification:
Barrel tissue basket- Φ95x80mm
layer nacelle-Φ95x80mm Five layers
8: Weight:60Kgs
External dimension: (Diameter)660mmx(Highness)550mmx680(Tiptop)mm
Rated voltage:220v,50Hz
