Carpet Cushion Dynamic Fatigue Tester GT-LE04
The purpose of this test is to determine: (1) retention of load bearing (65 % IFD), (2) a loss in thickness, and (3) structural breakdown as addressed by visual inspection.

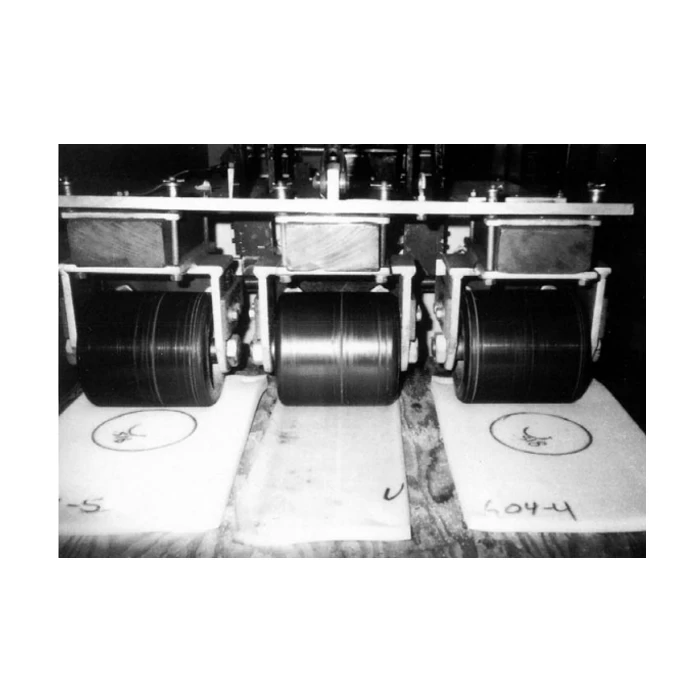

This procedure describes tests that evaluate the specimen by repeatedly deflecting the carpet cushion by a 152 mm diameter and 152 mm wide rubber covered roller exerting a force of 266±5N on the test specimens.
Carpet Cushion Dynamic Fatigue Tester GT-LE04
Product Introduction
Application: The purpose of this test is to determine: (1) retention of load bearing (65 % IFD), (2) a loss in thickness, and (3) structural breakdown as addressed by visual inspection.
|
Theory
This procedure describes tests that evaluate the specimen by repeatedly deflecting the carpet cushion by a 152 mm diameter and 152 mm wide rubber covered roller exerting a force of 266±5N on the test specimens.
Key Specifications
Model |
GT-LE04 |
Station |
3 |
Roller Length |
152mm |
Roller Diameter |
152mm |
Test Load |
266±5N |
Test Speed |
0-31cpm (adjustable) |
Base Platen |
19 mm thick plywood |
Stroke Length |
330 ± 10 mm |
Specimen Size |
380×230×13mm |
Dimension(WxDxH) |
130*68*115cm |
Weight(Kg) |
≈200Kg |
Power |
1∮ AC 220V 50Hz |
