Corrugated Printing Machine China Factory
Corrugated Cardboard Printing Machines Features：

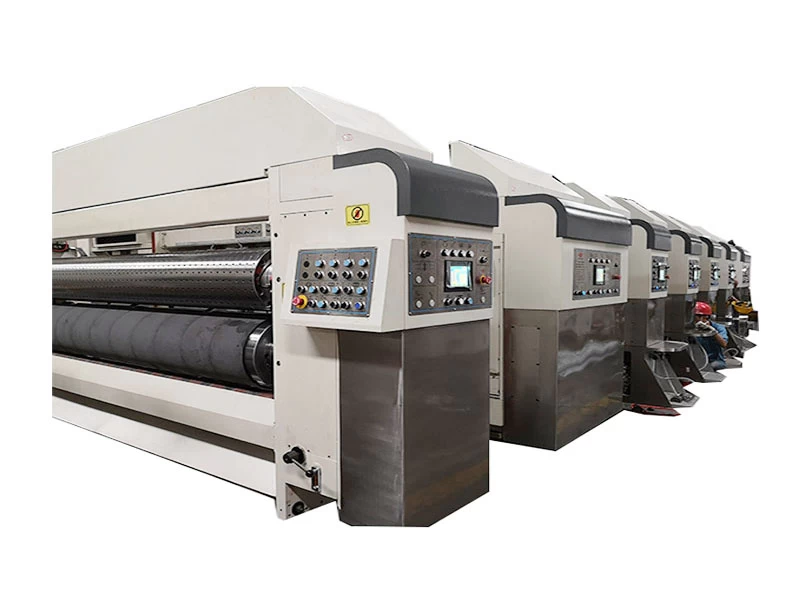

·This full-automatic flexographic printing machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are computerized and/or motorized control.
·Vacuum transfer system used in all printing sections.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

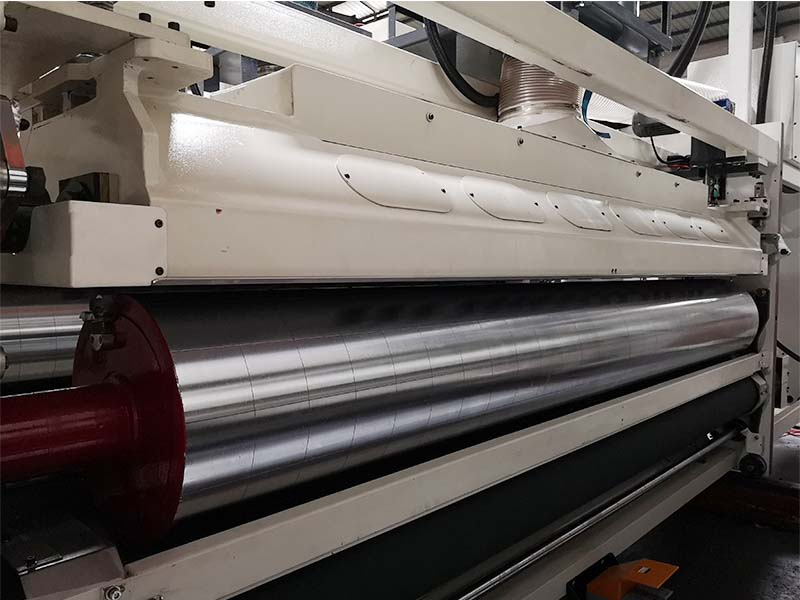

·All cylinders and rollers are chromed plated for ideal hardness.

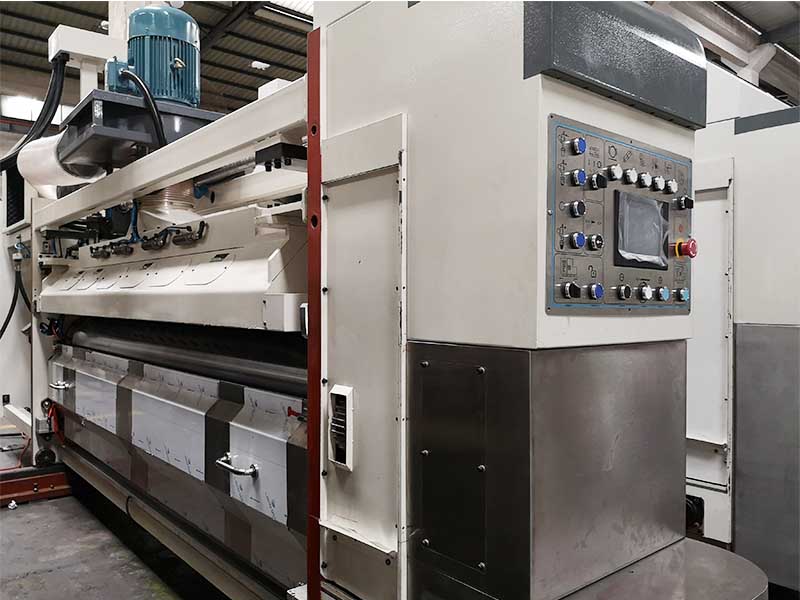

·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Corrugated Board Printing Machine Specifications：
Data/Model
|
900x2000
|
900x2400
|
1200x2000
|
1200x2400
|
1200x2800
|
1600x2800
|
1600x3200
|
1600x3600
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
160
|
Max Machine Speed(pcs/min)
|
300
|
300
|
250
|
250
|
220
|
200
|
180
|
120
|
Max Feeding Size(mm)
|
880x2000
|
880x2400
|
1180x2000
|
1180x2400
|
1180x2800
|
1540x2800
|
1570x3200
|
1570x3600
|
Min Feeding Size(mm)
|
280x640
|
280x640
|
320x700
|
320x700
|
320x700
|
420x760
|
420x760
|
420x760
|
Skip Feeding(mm)
|
1100x2000
|
1100x2400
|
1500x2000
|
1500x2400
|
1500x2800
|
1540x2800
|
1540x3200
|
1540x3600
|
Max Printing Area(mm)
|
800x2000
|
800x2400
|
1150x2000
|
1150x2400
|
1150x2800
|
1540x2800
|
1540x3200
|
1540x3600
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
Min Panel(mm) Slot Type L.
|
240x80x240x80
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
280x100x280x100
|
280x100x280x100
|
280x100x280x100
|
Max Slotting Depth(mm)
|
250
|
250
|
320
|
320
|
320
|
560
|
560
|
560
|
Max Thickness of Sheet(mm)
|
8
|
8
|
12
|
12
|
12
|
12
|
12
|
12
|
Dimension(LxWxH)
T
F
|
T:11659x4240x3200
F:12079x4240x3200
|
T:11659x4800x3200
F:12079x4800x3200
|
T:13015x4400x3500
F:13550x4400x3500
|
T:13015x4800x3500
F:13550x4800x3500
|
T:13015x5220x3500
F:13550x5220x3500
|
T:14021x5220x3500
F:14071x5220x3500
|
T:14021x5719x3500
F:14071x5719x3500
|
T:14021x6119x3500
F:14071x6119x3500
|
Corrugated Carton Digital Printing Machine Advantages:
1.CNC control system (Intelligent Control)
2.Environmental Protection and Energy Saving, use washable ink;
3.Satisfy the needs for exquisite printing in both sides, also be able to die-cut at the same time. It’s specially suit for products that have personalized or anti-fake requirements.
Our Team:
For the time being, we have more than 300 employees in our team, and have our own R&D, manufacturing, sales and after-sales service department, with our strict production and experienced construction team, taking the professional route and providing one-stop service for our customers.
