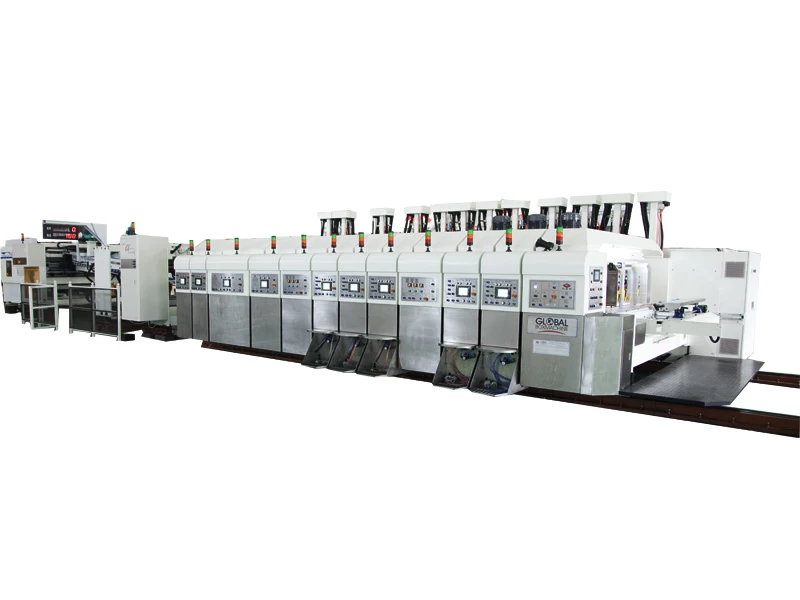

Carton Box Printing Slotting Die Cutting Machine
Pizza Box Flexo Printing Machine Features：
·This printing slotter machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are computerized and/or motorized control.
·Vacuum transfer system used in all printing sections.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Printing Machine with Cardboard Specification：
Data/Model
|
900x2000
|
900x2400
|
1200x2000
|
1200x2400
|
1200x2800
|
1600x2800
|
1600x3200
|
1600x3600
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
160
|
Max Machine Speed(pcs/min)
|
300
|
300
|
250
|
250
|
220
|
200
|
180
|
120
|
Max Feeding Size(mm)
|
880x2000
|
880x2400
|
1180x2000
|
1180x2400
|
1180x2800
|
1540x2800
|
1570x3200
|
1570x3600
|
Min Feeding Size(mm)
|
280x640
|
280x640
|
320x700
|
320x700
|
320x700
|
420x760
|
420x760
|
420x760
|
Skip Feeding(mm)
|
1100x2000
|
1100x2400
|
1500x2000
|
1500x2400
|
1500x2800
|
1540x2800
|
1540x3200
|
1540x3600
|
Max Printing Area(mm)
|
800x2000
|
800x2400
|
1150x2000
|
1150x2400
|
1150x2800
|
1540x2800
|
1540x3200
|
1540x3600
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
Min Panel(mm) Slot Type L.
|
240x80x240x80
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
280x100x280x100
|
280x100x280x100
|
280x100x280x100
|
Max Slotting Depth(mm)
|
250
|
250
|
320
|
320
|
320
|
560
|
560
|
560
|
Max Thickness of Sheet(mm)
|
8
|
8
|
12
|
12
|
12
|
12
|
12
|
12
|
Dimension(LxWxH)
T
F
|
T:11659x4240x3200
F:12079x4240x3200
|
T:11659x4800x3200
F:12079x4800x3200
|
T:13015x4400x3500
F:13550x4400x3500
|
T:13015x4800x3500
F:13550x4800x3500
|
T:13015x5220x3500
F:13550x5220x3500
|
T:14021x5220x3500
F:14071x5220x3500
|
T:14021x5719x3500
F:14071x5719x3500
|
T:14021x6119x3500
F:14071x6119x3500
|
Printing Machine for Corrugated Board Advantages:
1. CNC control system (Intelligent Control)
2. Environmental Protection and Energy Saving, use washable ink;
3. Satisfy the needs for exquisite printing in both sides, also be able to die-cut at the same time. It is specially suit for products that have personalized or anti-fake requirements.
Our Research and Development:
KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment. If you are interested in HD flexo printing slotting machine, Contact us now!
We are professional carton packing machine manufacturer, specialized in manufacturing carton printing machinery and carton packaging machinery over 20 years. You can tell us your needs, we can give you wonderful solution!
