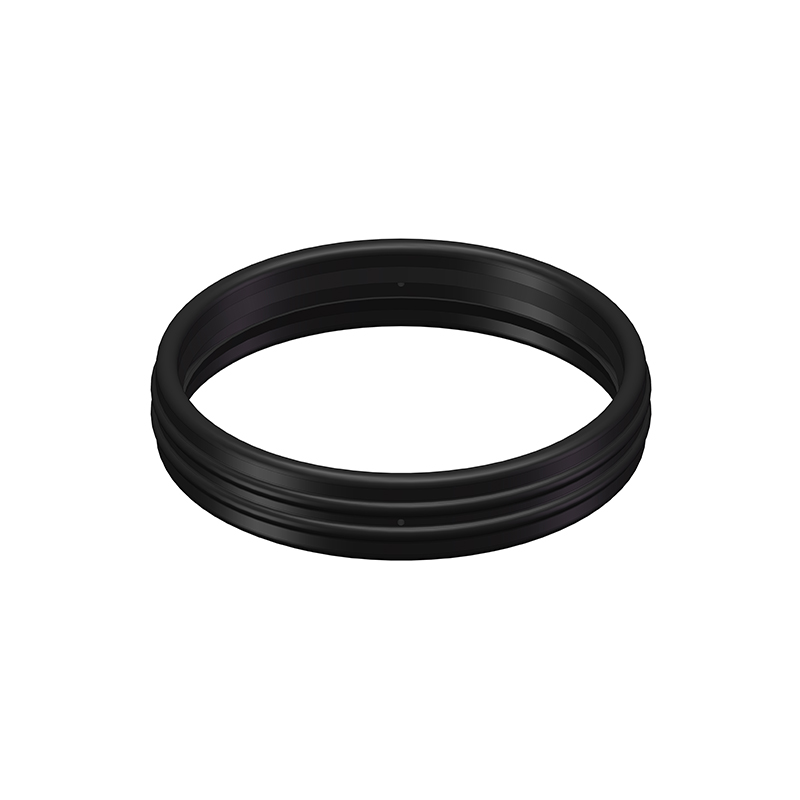

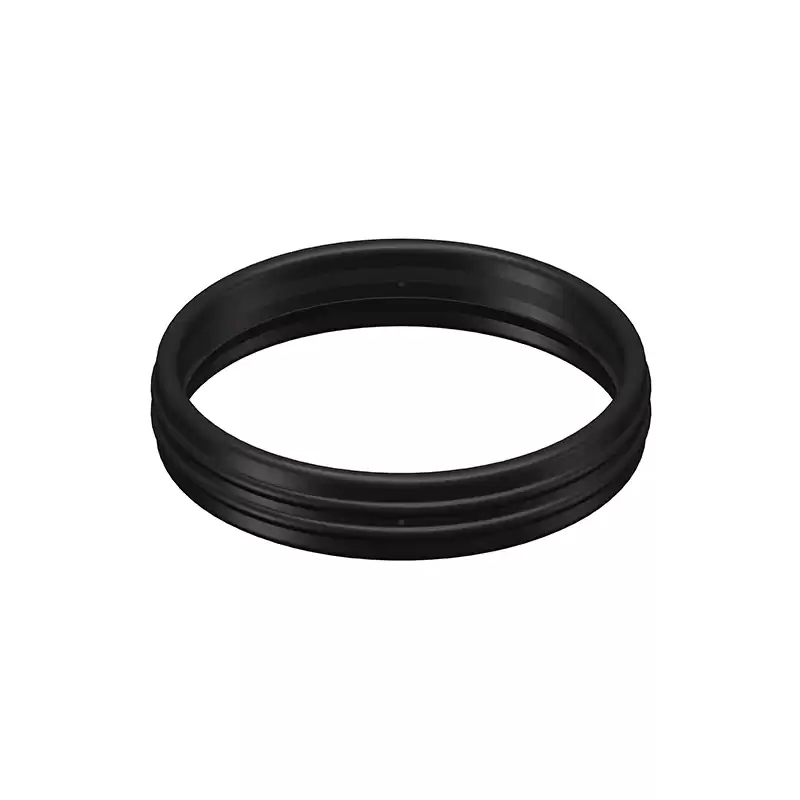

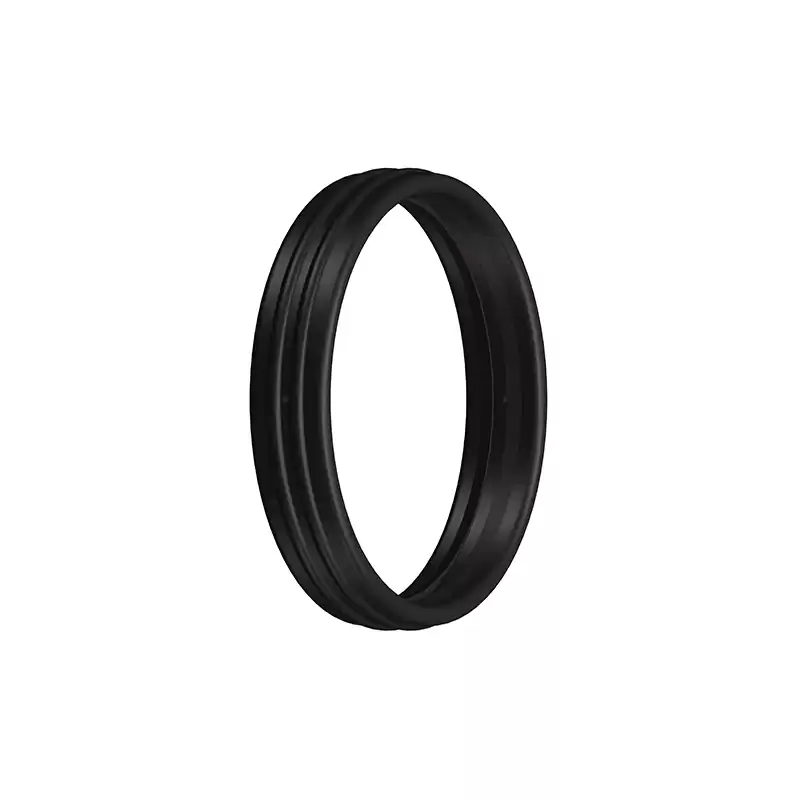

Casing secondary BT seal

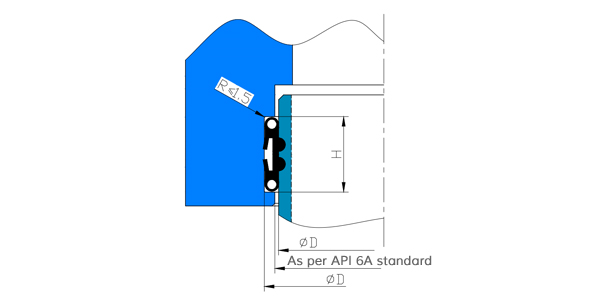

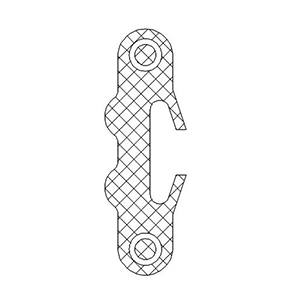

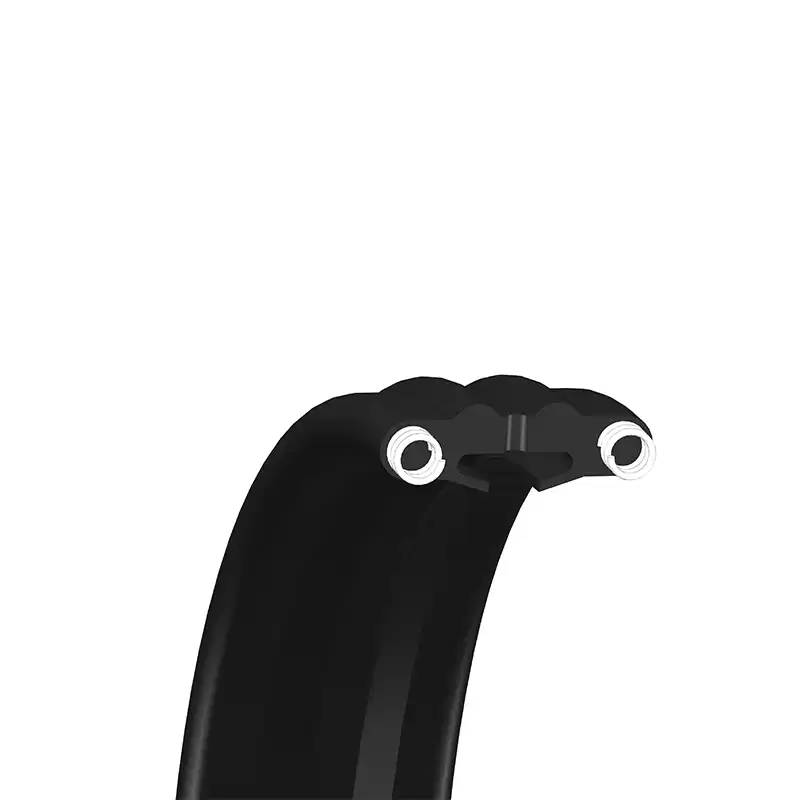

BT Seal is a static seal that is used to seal rough casing and tubing. It is constructed from an elastomer with anti-extrusion spring bonded within it. Springs are available in stainless steel, elastomer could be HNBR or NBR.
|
Advantages:
Anti-high pressure and Anti-extrusion.
|
Working Conditions
|
Temperature range
|
Pressure
|
Medium
|
-50°C~121°C
|
≤15000PSI
|
Oil, water, Gas, H2S, CO2 etc
|
|
|
Nominal Wellhead Casing
|
|
Inch
|
MM
|
|
Inch
|
MM
|
|
3.500
|
88.90
|
9.625
|
244.48
|
|
4.000
|
101.60
|
9.875
|
250.83
|
|
4.500
|
114.30
|
10.000
|
254.00
|
|
4.750
|
120.65
|
11.750
|
298.45
|
|
5.000
|
127.00
|
11.875
|
301.63
|
|
5.500
|
139.70
|
13.375
|
339.73
|
|
5.750
|
146.05
|
13.625
|
346.08
|
|
6.000
|
152.40
|
14.000
|
355.60
|
|
6.250
|
168.28
|
16.000
|
406.40
|
|
7.000
|
177.80
|
18.625
|
473.08
|
|
7.650
|
193.68
|
20.000
|
508.00
|
|
7.750
|
196.85
|
24.000
|
609.60
|
|
8.625
|
219.08
|
30.000
|
762.00
|
|
9.000
|
228.60
|
|
|
