Product Introduction:

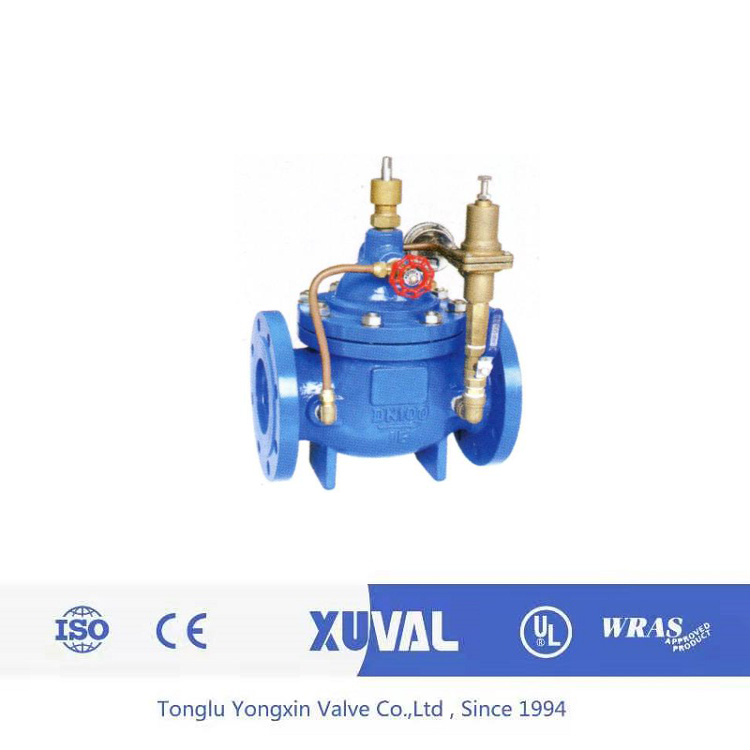

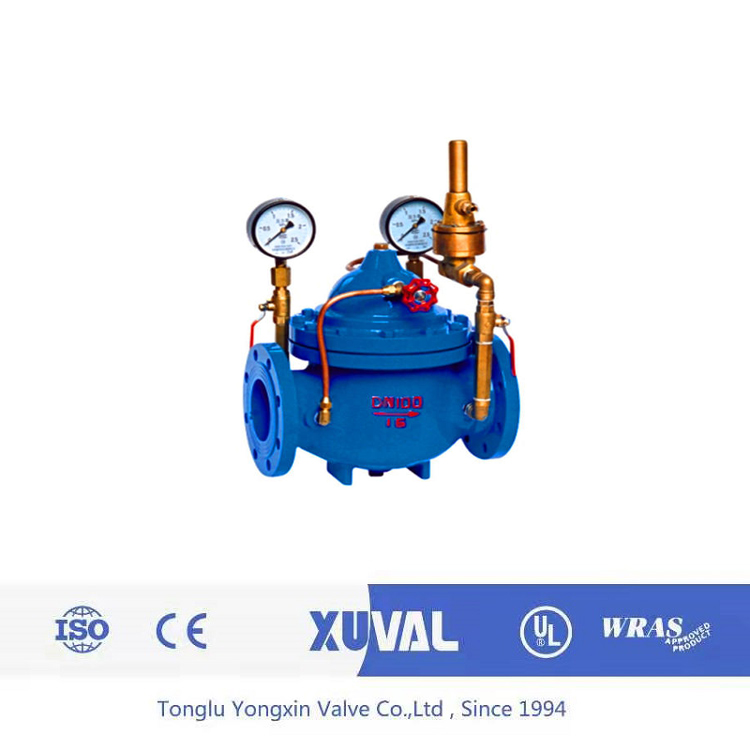

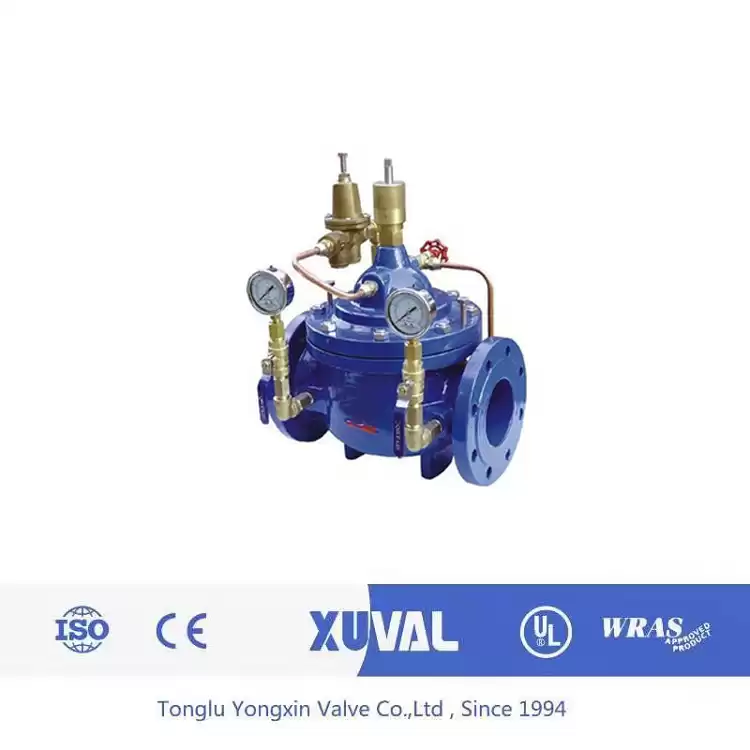

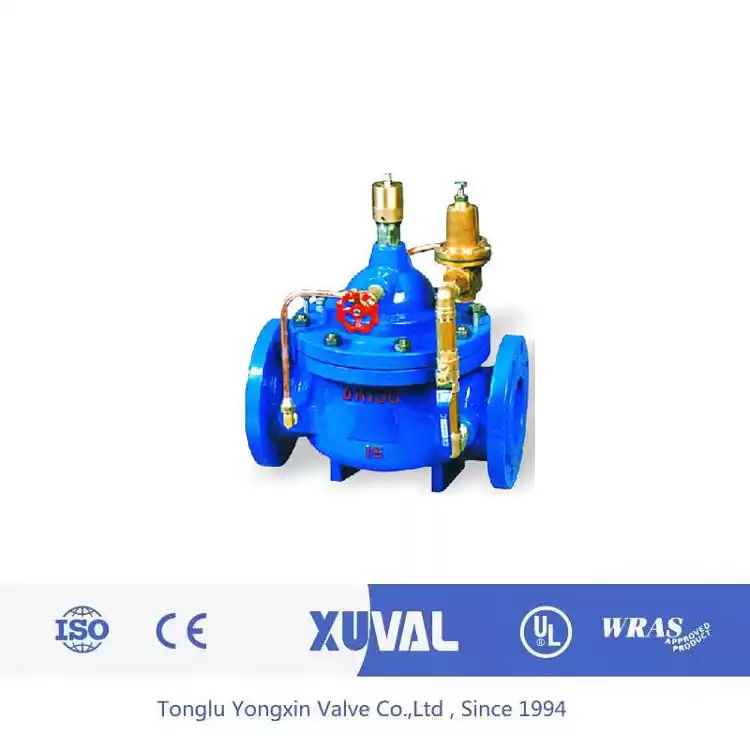

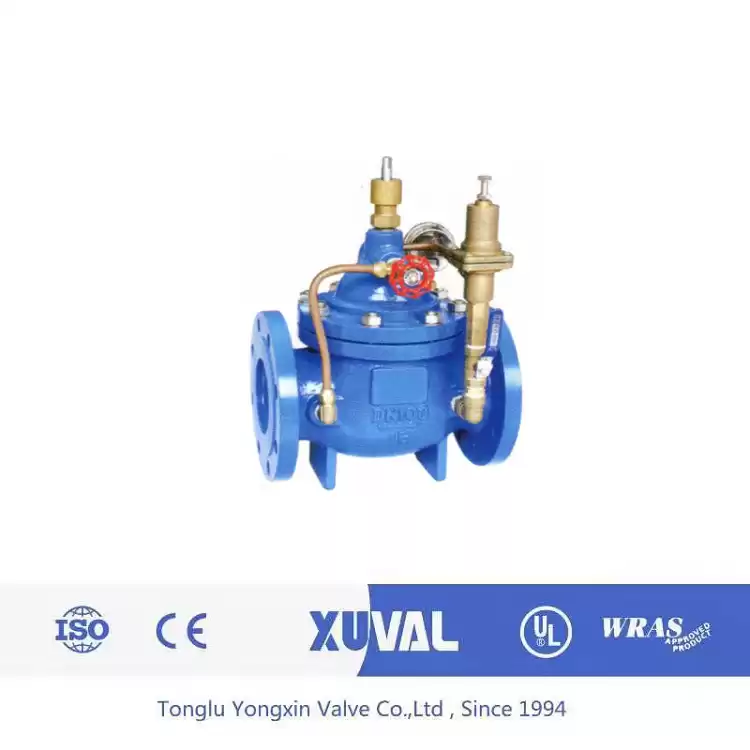

400X flow control valve is kind of multifunctional valve, using advanced pilot method to control flow rate of fluid. It is used in the pipeling whose flow rate and pressure need to keep stable and keep the flow rate stable and limit the over large flow rate to the preset flow rate value and reduce the upstream pressure, and even the upstream pressure of the main valve change, the flow rate in the downstream do not change. This kind of valve is different general throttle valve that reduce flow area to control flow rate, it uses related pilot valve to reduce energy loss when throtting. In emergency 400X flow control valve can shut off the fluid and avoid loss. It's sensibility is very high and it is very safe and reliable and it's life is very long and it is very easy to maintain.
Specification
|
|
Work pressure
|
1.0Mpa
|
1.6Mpa
|
2.5Mpa
|
|
Shell Test
|
1.5Mpa
|
2.4Mpa
|
3.75Mpa
|
|
Seal Test
|
1.1Mpa
|
1.76Mpa
|
2.75Mpa
|
|
The range of
Outlet pressure
|
0.09~0.8Mpa
|
0.10~1.2Mpa
|
0.15~1.6Mpa
|
|
Pressure characteristics
|
P2x8%
|
P2x10%
|
P2x12%
|
|
Flow characteristics
|
P2x15%
|
P2x20%
|
P2x25%
|
|
Temperature
|
0~80℃
|
|
Medium
|
Water
|
Main Demisions
|
|
DN
|
L
|
A
|
A1
|
H
|
H1
|
F
|
|
50
|
230
|
330
|
155
|
395
|
278
|
170
|
|
80
|
260
|
365
|
175
|
430
|
313
|
210
|
|
100
|
320
|
410
|
195
|
510
|
350
|
275
|
|
150
|
410
|
475
|
230
|
585
|
420
|
355
|
|
200
|
480
|
530
|
255
|
675
|
450
|
460
|
|
300
|
690
|
700
|
340
|
760
|
490
|
580
|
|
400
|
860
|
880
|
430
|
910
|
570
|
715
|
|
600
|
1100
|
1060
|
530
|
1270
|
725
|
920
|
|
800
|
1850
|
1230
|
610
|
1640
|
975
|
1050
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
