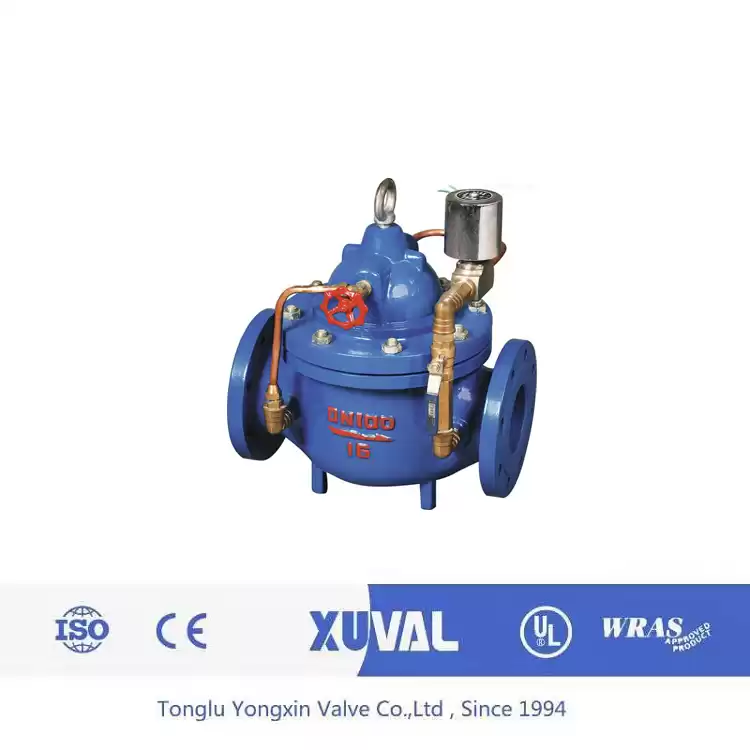

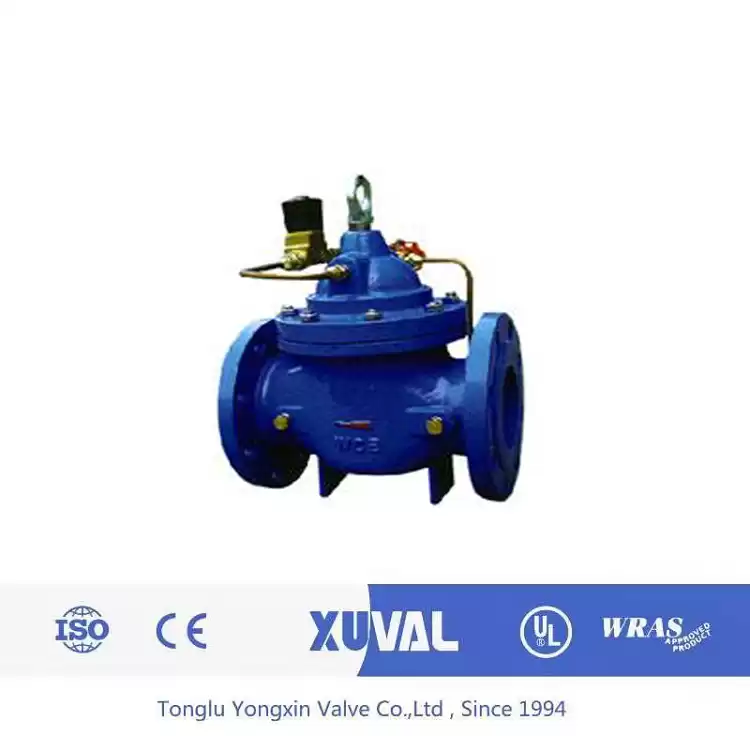

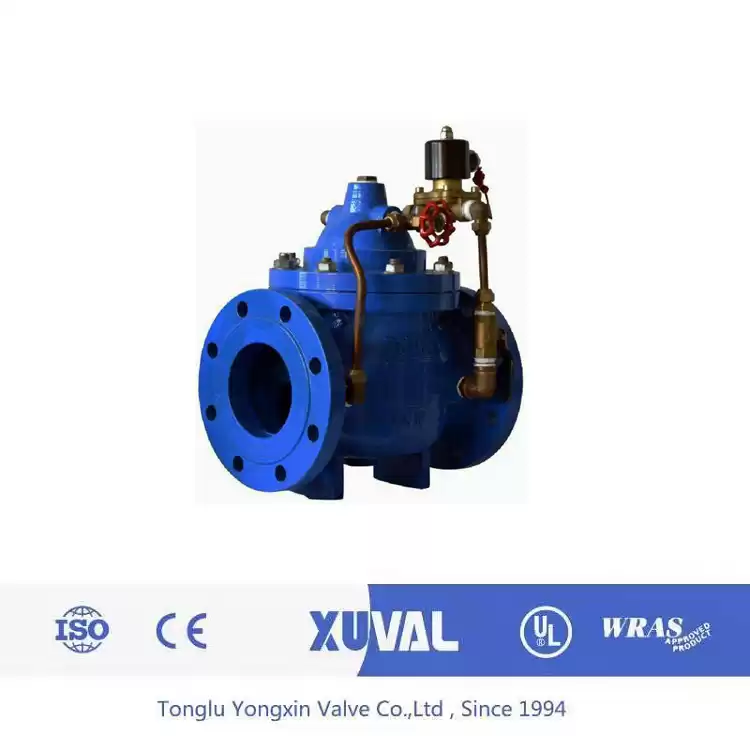

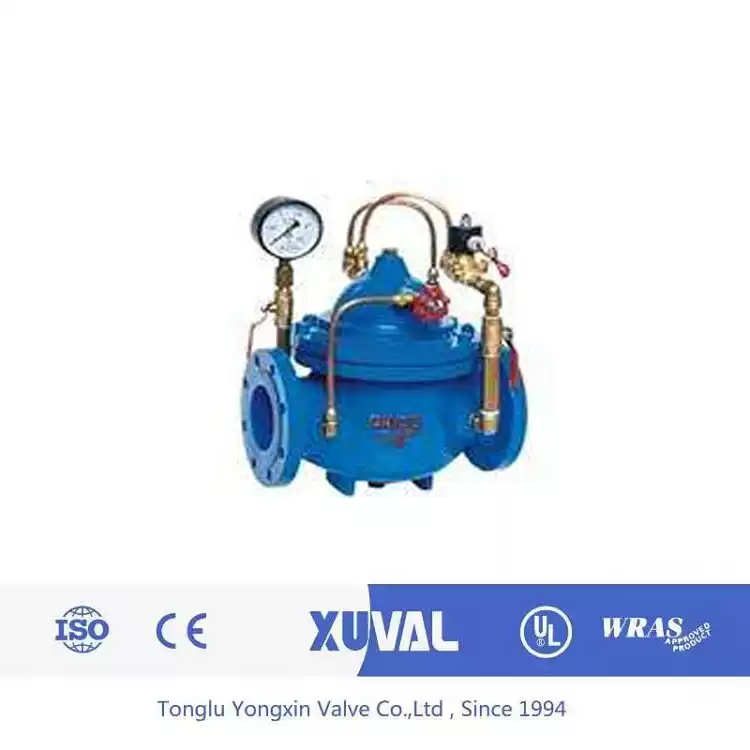

The 600X electric control valve is a hydraulic operated valve with solenoid valve as the guide valve.
It is often used for automatic control in water supply and drainage system and industrial system. The control response is accurate and fast. It can open and close the pipe road system remotely according to the electrical signal to realize remote operation.And can replace gate valves and butterfly valves for large electric operating systems.Valve closing speed can be adjusted to close smoothly without pressure fluctuation.The valve is small in size, light in weight, simple in maintenance, convenient in use, safe and reliable.Solenoid valve can be used ac 220V, or DC 24V, can be used according to various occasions often open or closed type can be.
Specification
|
|
Work Pressure
|
1.0Mpa
|
1.6Mpa
|
2.5Mpa
|
|
Shell Test
|
1.5Mpa
|
2.4Mpa
|
3.75Mpa
|
|
Seal Test
|
1.1Mpa
|
1.76Mpa
|
2.75Mpa
|
|
Minimum
Movement pressure
|
P1≥0.07Mpa
|
|
Electromagnetic valve
a.c.voltage
|
220V
|
|
Electromagnetic valve
d.c.voltage
|
24V
|
|
Temperature
|
0~80℃
|
|
Medium
|
Water
|
Main Demisions
|
|
DN
|
L
|
A
|
A1
|
H
|
H1
|
F
|
|
50
|
230
|
240
|
155
|
395
|
278
|
170
|
|
65
|
250
|
255
|
165
|
405
|
298
|
180
|
|
80
|
260
|
280
|
175
|
430
|
315
|
210
|
|
100
|
320
|
332
|
195
|
510
|
350
|
275
|
|
125
|
370
|
375
|
220
|
560
|
365
|
310
|
|
150
|
410
|
408
|
230
|
585
|
420
|
355
|
|
200
|
480
|
485
|
255
|
675
|
450
|
460
|
|
250
|
580
|
550
|
300
|
730
|
470
|
500
|
|
300
|
690
|
630
|
340
|
760
|
490
|
580
|
|
400
|
860
|
788
|
430
|
910
|
570
|
715
|
|
500
|
980
|
905
|
490
|
1135
|
665
|
830
|
|
600
|
1100
|
970
|
530
|
1270
|
725
|
920
|
|
700
|
1650
|
1050
|
560
|
1460
|
865
|
980
|
|
800
|
1850
|
1135
|
610
|
1640
|
975
|
1050
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
