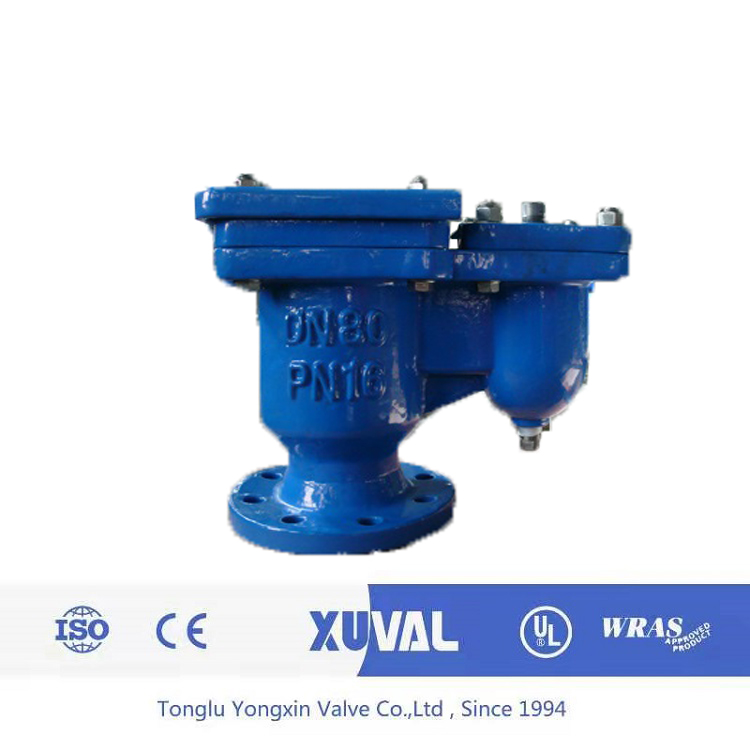

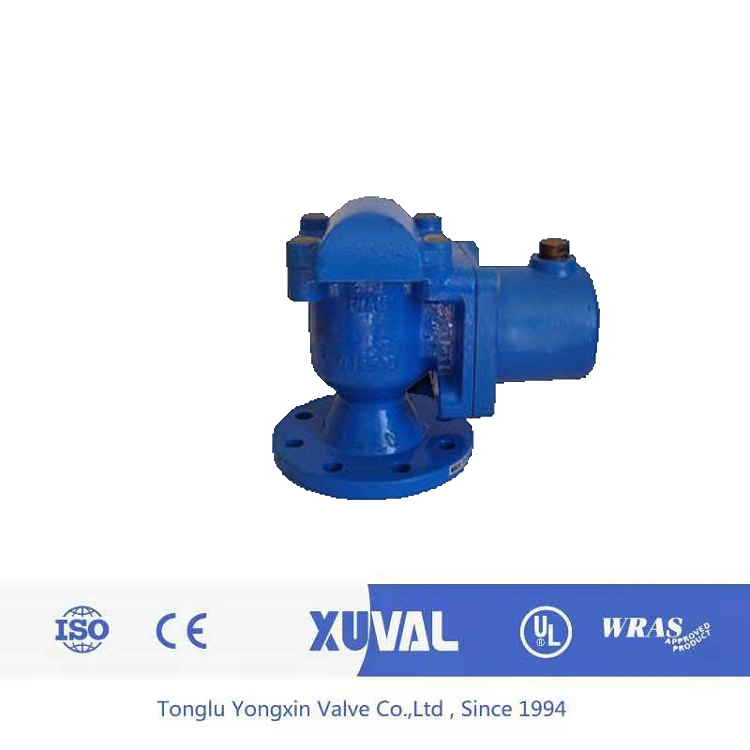

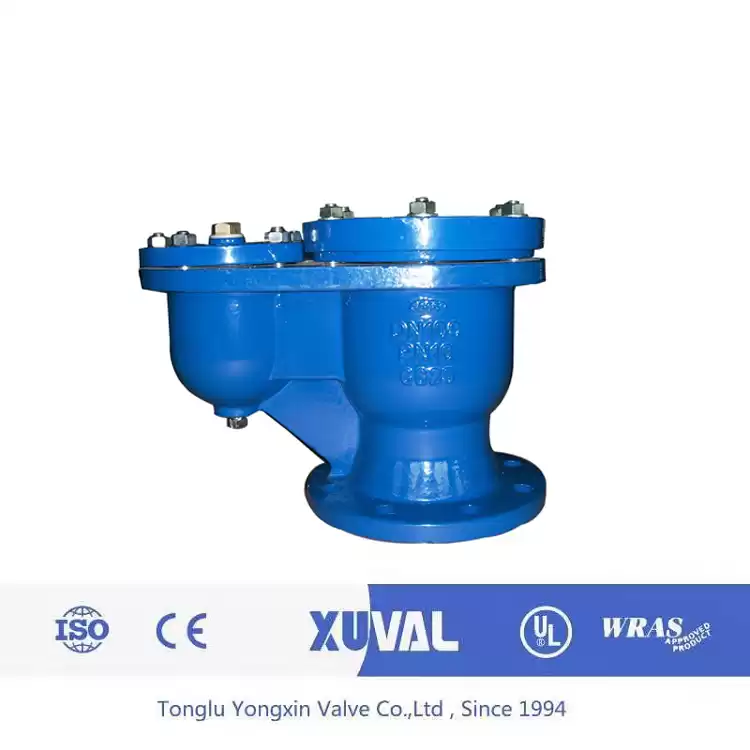

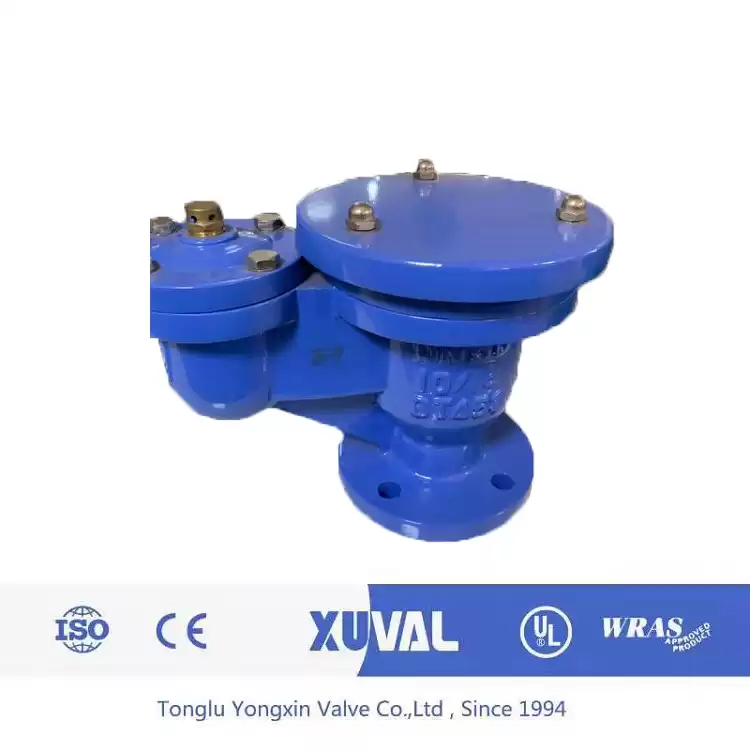

Cast iron double orifice kinetic air valve
Product Description:
I. Application of QB2 double-port exhaust valve:
P2,QB2 double-port (inlet) valve is suitable for the pipeline with industrial medium as water, and it is necessary for the pipeline to remove the gas in the pipeline quickly to improve the efficiency of the water conveying equipment and to protect the pipeline from deformation and rupture.
II. Features of QB2 dual-port exhaust valve:
1. can remove the gas in the pipeline and reduce the resistance to save c source.
2. when the pipe negative pressure, this product can quickly and automatically inhale air to prevent pipe rupture.
3. exhaust capacity is more than double hole exhaust valve.
4. float bracket is stainless steel, long service life, safe and reliable.
III. QB2 performance technical parameters of the double-port exhaust valve:
1. media: clear water
2. temperature: room temperature
3. shell strength test pressure :1.5 MPa, no damage.
4. float seal test pressure :0.05∽1.1 MPa No leakage
5. body material: gray cast iron HT200 6. float bracket: stainless steel
Category: Air Valve
Description of tables:
Application
|
|
Available Standard
|
JKR/AWWA/BS/JIS/DIN
|
Working Pressure
|
1.6
|
|
Body Test Pressure
|
2.4
|
|
Seat Test Pressure
|
1.76
|
|
Reseat Pressure
|
1.6~0.35
|
Main Parts And Materials
|
|
Parts Name
|
Material
|
Body
|
Cast Iron
|
Large Float Ball
|
NBR
|
Small Float Ball
|
NBR
|
|
Large Cover
|
Cast Iron
|
|
Small Cover
|
Cast Iron
|
Plate
|
Cast Iron
|
Gasket
|
Rubber
|
|
Air Release Nipple
|
Brass
|
Main Dimensions
|
DN
|
D
|
C
|
K
|
b
|
n-d
|
H
|
E
|
F
|
|
50
|
165
|
125
|
99
|
20
|
4-Φ19
|
215
|
115
|
187
|
|
100
|
220
|
180
|
156
|
24
|
8-Φ19
|
285
|
145
|
300
|
|
150
|
285
|
240
|
211
|
26
|
8-Φ23
|
385
|
190
|
369
|
|
200
|
340
|
295
|
266
|
30
|
12-Φ23
|
500
|
205
|
398
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
