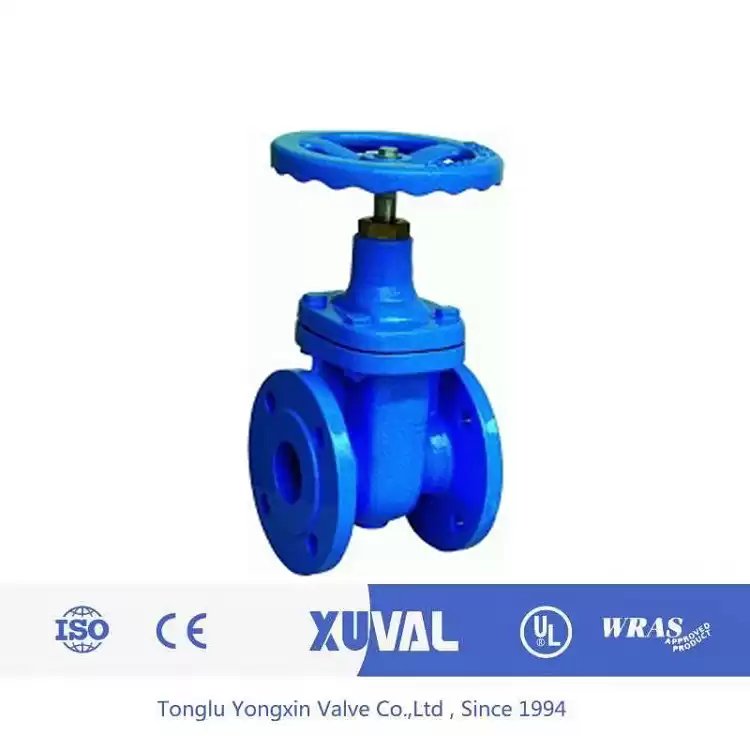

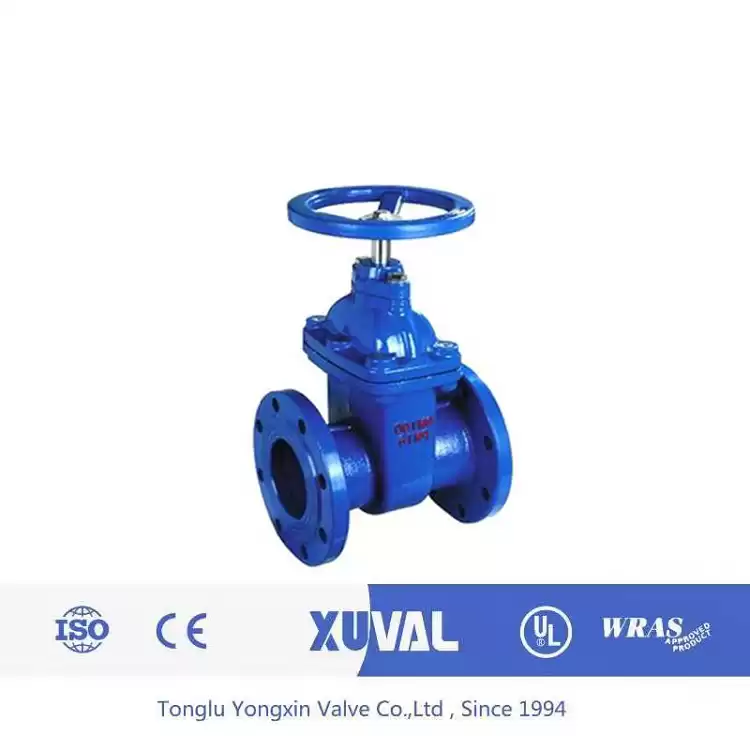

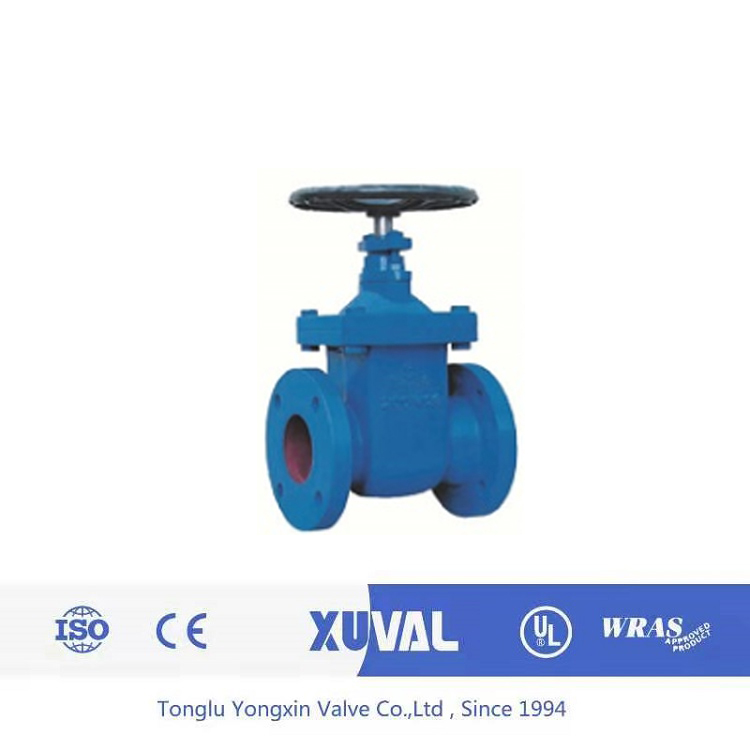

Cast iron non rising stem gate valve 150lb

Competitive Advantage:

1. 18 Months Guarantee for quality.

2.OEM manufacturer, print client’s LOGO on the valve body.

3.Offer Operation Manual & Install Introduction for safety use.

4.Offer manufacturer’s reasonable price to win the market for both.

5.Accept any the third party inspection.

6.As a factory, every production process can be controlled during manufacture.

7.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.



Cast iron non rising stem gate valve 150lb


XUVAL - A Leading Global Manufacturer and supplier Of Industrial Valves For Many Types Of Applications. Our Cast Iron Gate Valve products are available both in Resilient seated and I Metal Seated Gate Valves. You can wholesale at factory price.


Description of tables:

Application

1
Design According to ANSI B16.1 Class 125/Class 150
2 Flange End Fcae to ANSI B16.10 Class 125/Class 150
3 For water,neutral liquids and oil,gas


Main Parts and Materials

Number
Part Name
Material
1
Body ASTM A126B
2 Seat Ring Bronze B62/Brass
3
Wedge ASTM B62/Brass
4 Wedge Ring Bronze B62/Brass
5 Stem AISI 420
6 Bonnet Gasket Graphite
7 Bonnet ASTM A126B
8 Packing Graphite
9 Stuffing Box ASTM A126B
10 Gland Follower ASTM A536 65-45-12


Category: Gate Valve

Cast iron gate valve non rising stem


Main Dimensions

Norminal

diameter

L
D
D1
b
n-d
H
50 177.8 152 120.65 15.9 4xφ19
287.27
65 190.5 178 139.7 17.5 4xφ19
304.8
80 203.2 190 152.5 19.1 4xφ19
336.55
100 228.6 229 190.5 23.9 8xφ19
414.27
125 254 254 215.9 23.9 8xφ22
457.2
150 266.7 279 241.3 25.4 8xφ22
525.53
200 292.1 343 298.45 28.6 8xφ22
612.65
250 330.2 406 361.95 30.2 12xφ25

300 355.6 483 431.8 31.8 12xφ25


Packing & Delivery :

Packing Details  : all Cast Iron Gate Valve by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
