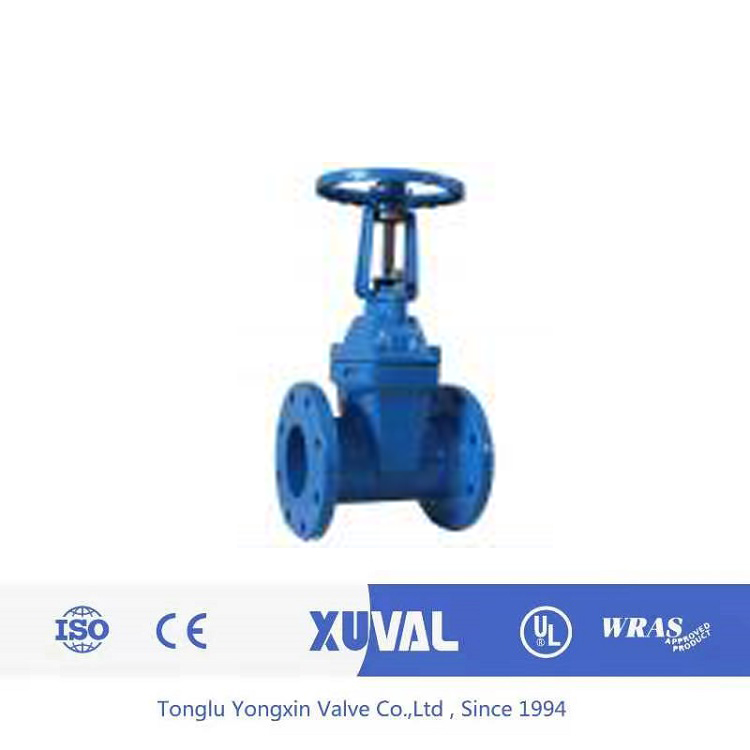

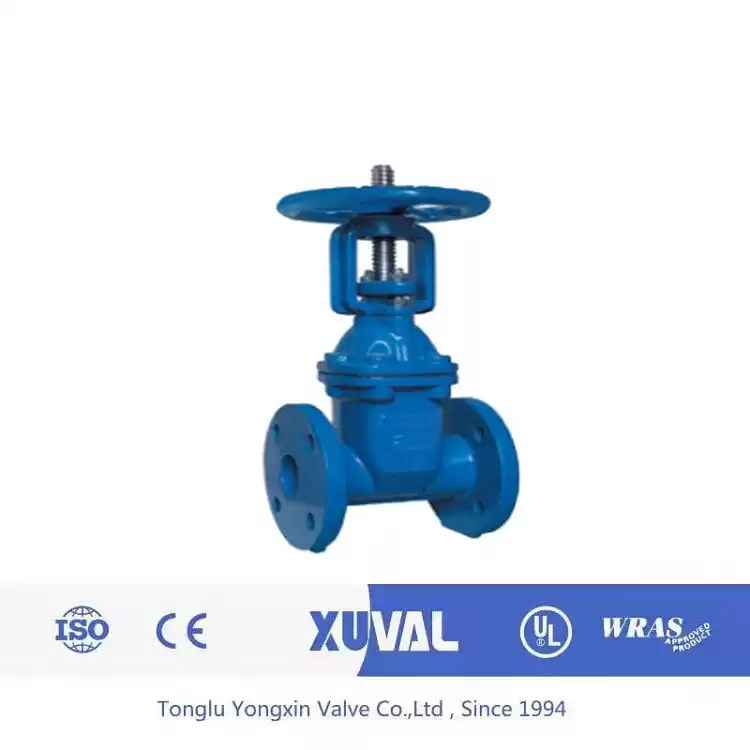

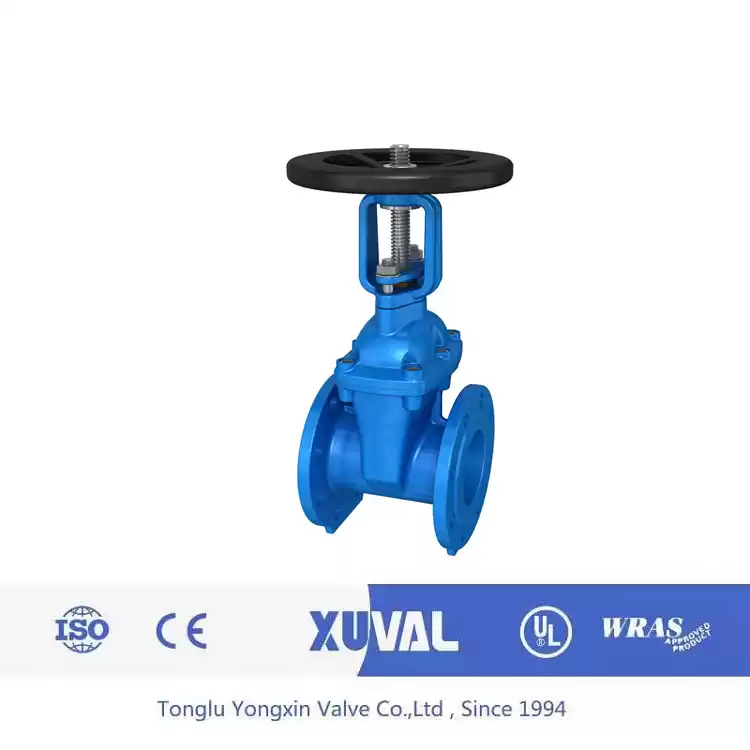

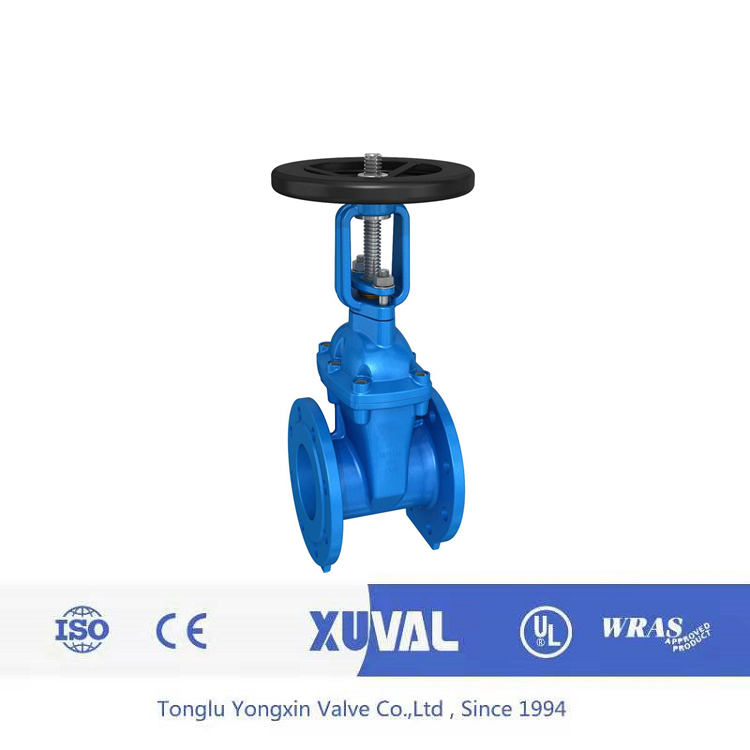

Cast iron rising stem rubber seat gate valve 125lb

Competitive Advantage:

1. 18 Months Guarantee for quality.

2.OEM manufacturer, print client’s LOGO on the valve body.

3.Offer Operation Manual & Install Introduction for safety use.

4.Offer manufacturer’s reasonable price to win the market for both.

5.Accept any the third party inspection.

6.As a factory, every production process can be controlled during manufacture.

7.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.



Cast iron rising stem rubber seat gate valve 125lb


Description of tables:

Application

1.Design and Manufacture
ANSI B16.1
2.Face to face ANSI B16.10
3.Flange End Dimensions BS4504
4.Working Pressure 125LB/150LB


Main Parts and Materials

Number
Part Name
Material
1
Body ASTM A536 65-45-12
2
Wedge
DI+EPDM
DI+NBR
3 Stem AISI 420
4 Bonnet Gasket EPDM/NBR
5 Bonnet ASTM A536 65-45-12
6 Yoke ASTM A536 65-45-12
7 Gland Flange ASTM A536 65-45-12
8 Stem Nut Brass


Category: Gate Valve

Cast iron OSY rubber seat gate valve

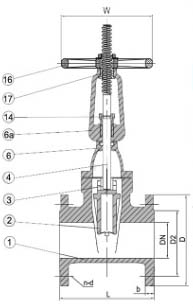

Main Dimensions

Norminal

diameter

L
D
D1
b
n-d D2
50
177.8 152 120.5 16 4-19 200
65 190.5 178 139.5 17.5 4-19 200
80
203.2 190 152.5 19 4-19 240
100 228.6 229 190.5 24 8-19 240
125
254 254 216 24 8-22 285
150
266.7 279 241.5 25.4 8-22 300
200 292.1 343 298.5 28.6 8-22 360
250 330.2 406 362 30.2 12-25 400
300 355.6 483 432 31. 12-25 450


Packing & Delivery :

Packing Details  : all cast gate valve by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
