Caster and Base Durability Testing Machine GT-LB09

Caster and Base Durability Testing machine applies to pedestal base chairs with casters or chairs with legs and casters, to evaluate the ability of the casters , chair frame or chair base to withstand fatigue stresses and wear caused by moving the chair back and forth.




  • standardANSI/BIFMA X5.1-2011, QB/T 2280-2007, EN 1728-2012, EN1335-3 -2009
  • certificateISO 9001, UKAS, CE


Applications:

This tester applies to pedestal base chairs with casters or chairs with legs and casters, to evaluate the ability of the casters , chair frame or chair base to withstand fatigue stresses and wear caused by moving the chair back and forth.


Standards:

ANSI/BIFMA X5.1-2011 Section 17,

QB/T 2280-2007 Section 6.6.7

EN 1728-2012 Section 6.29 method 2, 7.13 method 2

EN1335-3 -2009 Section 7.3.5 method 2



Feature

The machine frame is made of high quality aluminum,Beautiful and generous

The Obstacle block can be disassembled freely, which is convenient to switch the test mode

The test table is provided with a safety guard fence to prevent harm in the process of testing.

weight could be add up to seat load, which is easy to operate

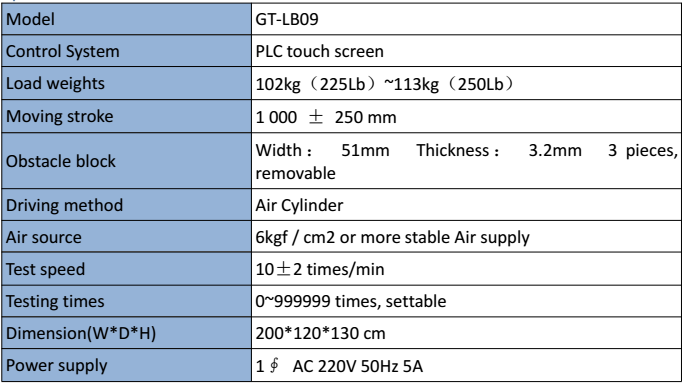

Key Specifications



Applications Industry
All kinds of chair products can be tested on the Caster and Base Durability Testing machine
