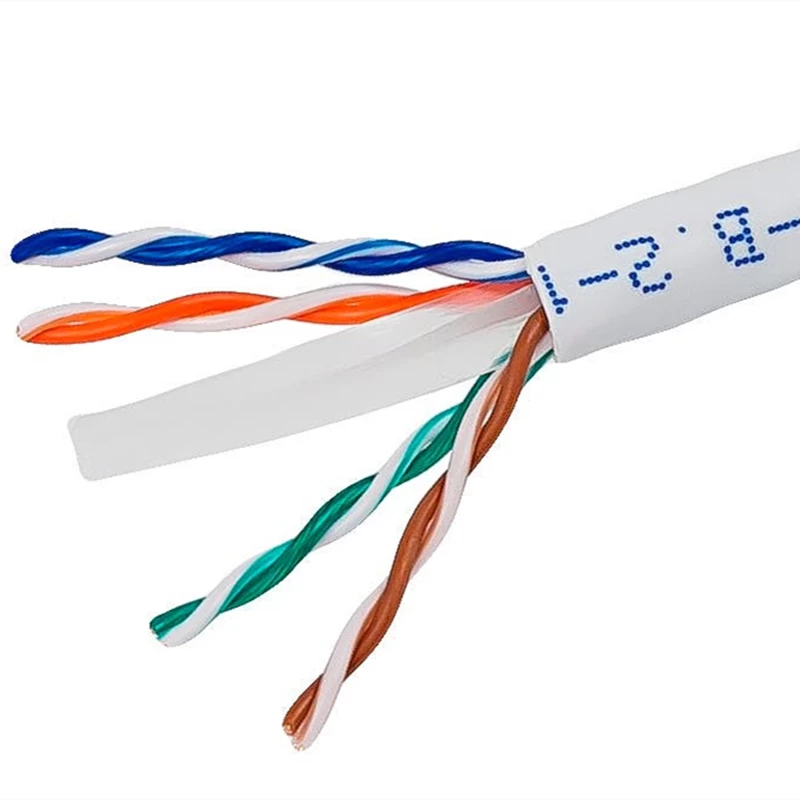

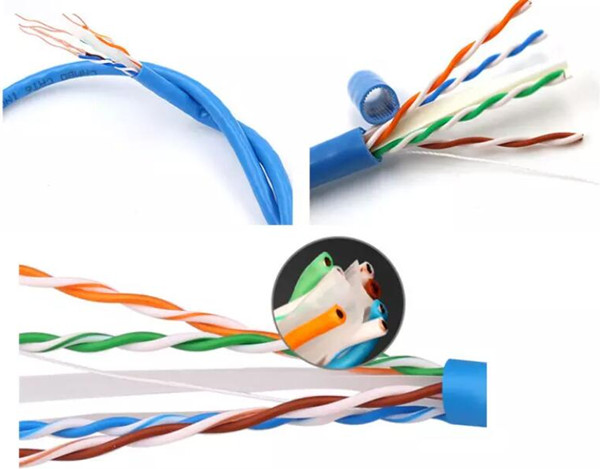

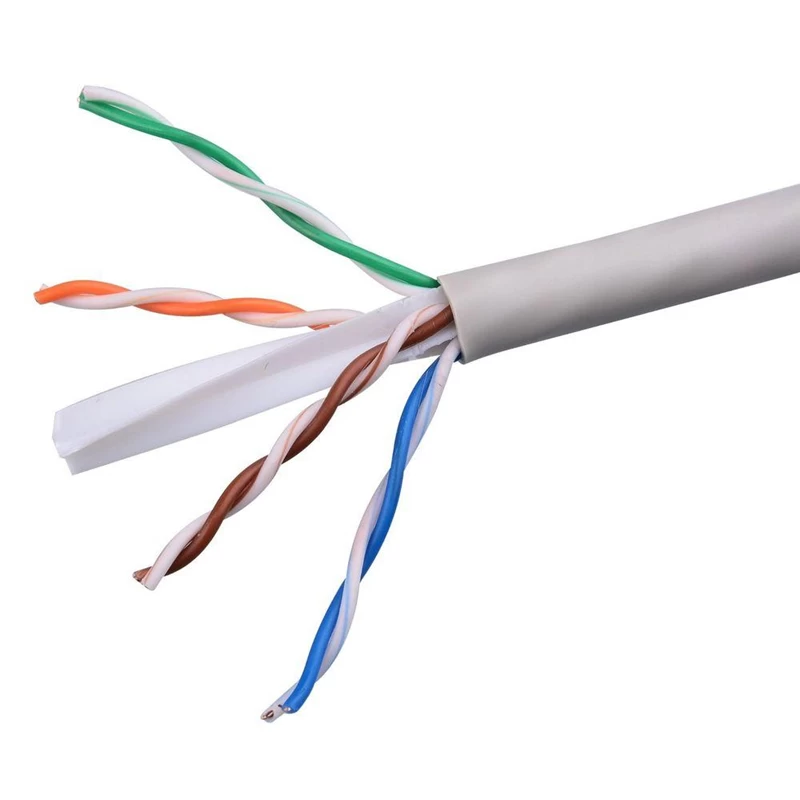

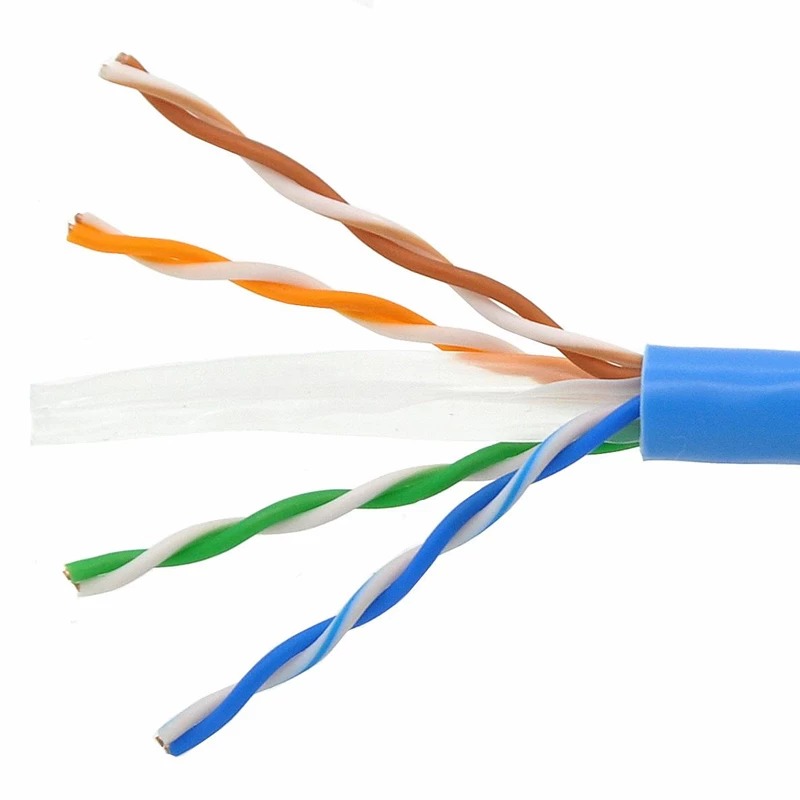

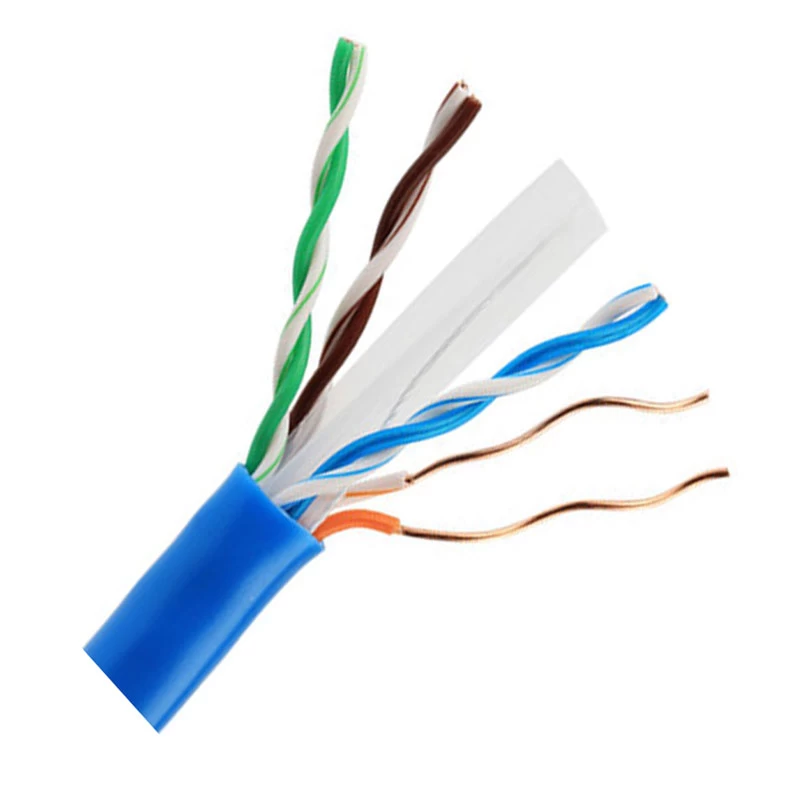

Cat 6 UTP Unshielded PVC sheath LAN Cable
PRODUCTS KEYWORDS
Cat
6 utp lan cable, utp cat 6 network cable, cat 6 23 AWG lan cable, cat 6 unshielded
cable, Category 6 data
cable, TIA/ EIA 568B cat 6 lan cable, ISO/IEC 11801 cat 6 utp cable.
APPLICATION CHARACTERISTICS
Cat 6 UTP unshielded PVC sheath LAN cable, bare copper conductor, HDPE
insulated, PVC sheath, meet to ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T
1019.
Category 6 UTP Cable (Cat 6 Cable) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed copper wire, solid class 1, 1/0.57 mm, 23AWG (4 pairs)
---Insulation Material
HDPE (high density polyethylene), thickness:
1.03 mm
---Insulation Color
Blue,
blue/white; orange, orange/white; green, green/white; brown, brown/white
---Shielded Material
Un-shielded
---Screened Material
Non-screened
---Sheath Material
PVC (Polyvinyl
Chloride), thickness: 1.1 mm
---Sheath Color
Black, blue,
grey, white, or others
---Rip Cord Material
Tinned copper wire
---Core Number
4 pairs (8
cores)
---Cable’s Out Diameter
6.2 mm
---Refer Net Weight
14 kg/305m carton
---Minimum Bending Radius
6 x cable’s
out diameter
---Flame Retardant Class
CM, CMR (IEC 60331)
---Operating Voltage
72V
---Operating Temperature
-20℃～+70℃
---Velocity Ratio
68 (% speed of light)
---Max. Resistance Unbalance
5.0%
---Characteristics Impedance
100 ±15Ω
---Max. DC Conductor Resistance in 20℃
≤
95 Ω/km
---Max. Delay skew
< 45 (ns/100m)
---Dielectric Strength
1.0kV DC or 750V AC in 1 minute
---Production Standard
ISO/IEC
11801-2012, ANSI/TIA/EIA 568B, YD/T 1019-2013, IEC 61156-5-2012, AS/NZS 3080, BS EN 50173.
---Packing Type
305 meters per carton (box)
---Product MOQ
100 cartons (box)
---Production Delivery
Within 7-15 working
days as soon as we received the deposit.
REMARK
---The
information contained within this datasheet is for guidance only and is subject
to change without notice or liability. All the information is provided in good
faith and is believed to be correct at the time of publication.
---When
selecting cable accessories, please note that actual cable dimensions may vary
due to manufacturing tolerances.
---The
OEM or OBM service will be accepted, but the customer should be provided the
authorization letter to us in advance, and the authorization letter must be
true and valid.
---Hante
Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost
Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS

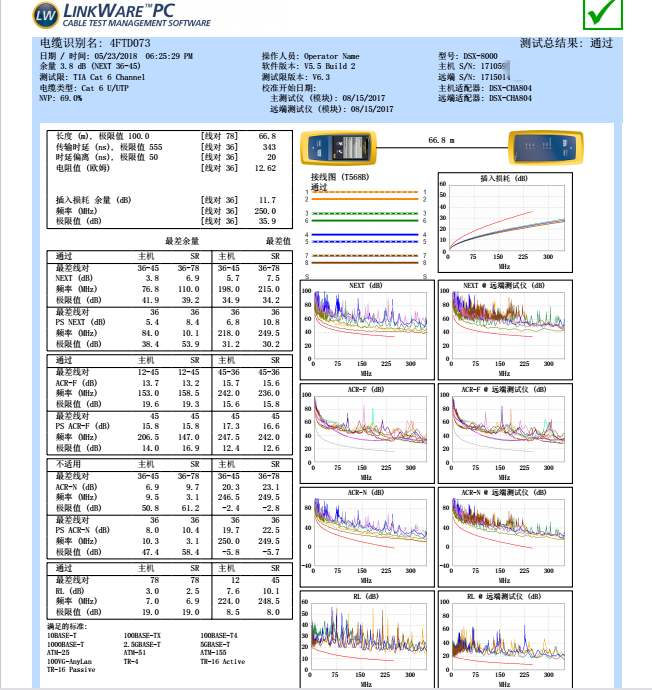

INSPECTION PROCESS
