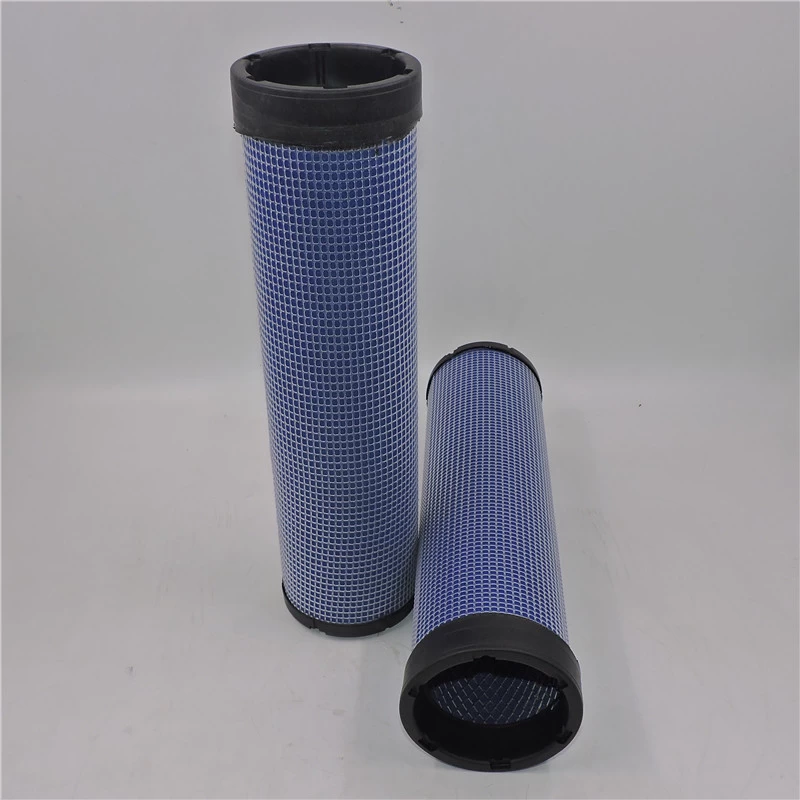

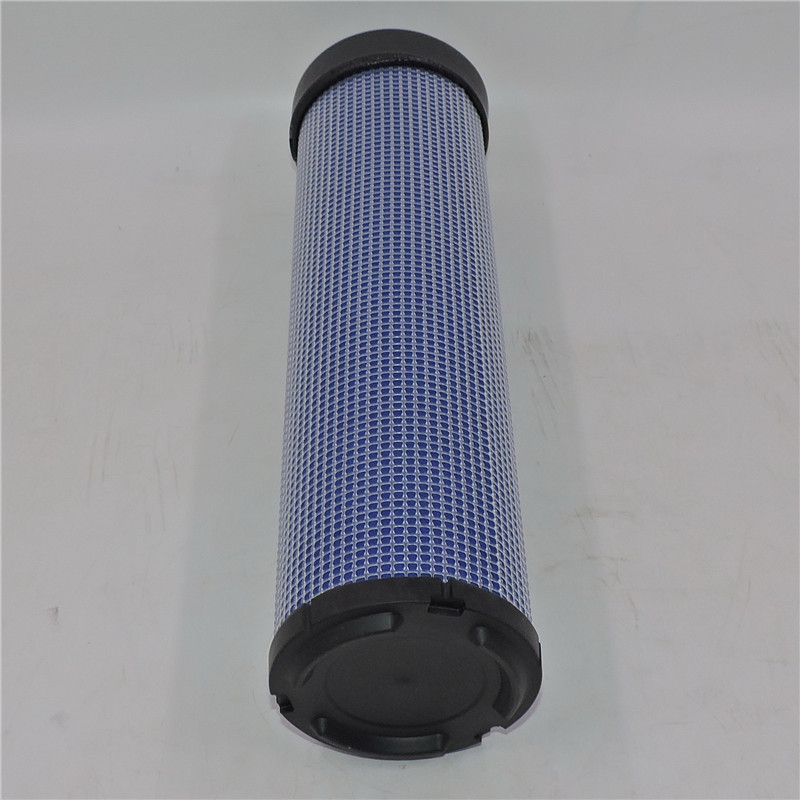

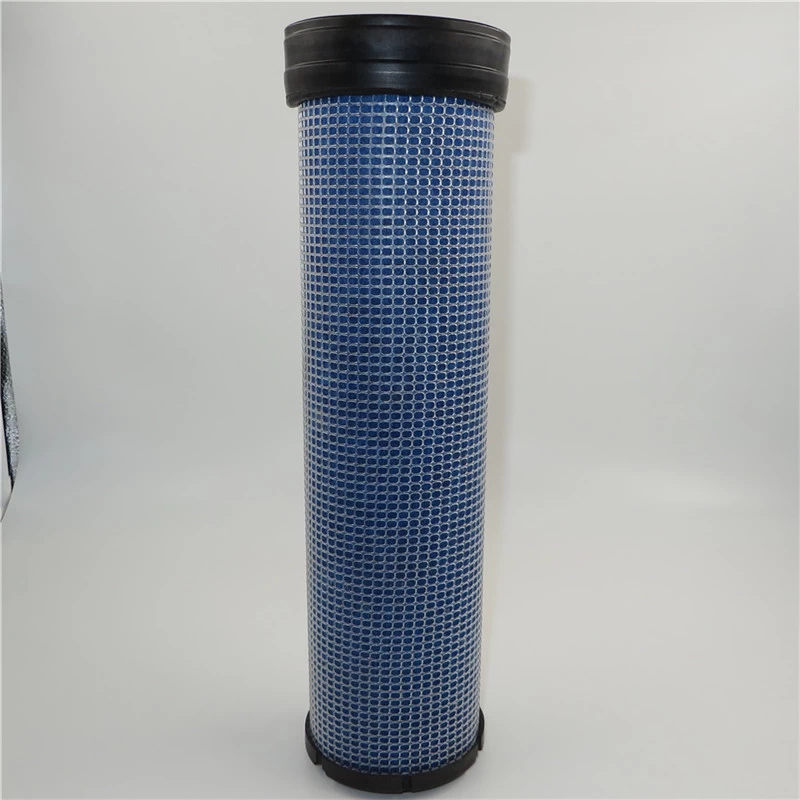

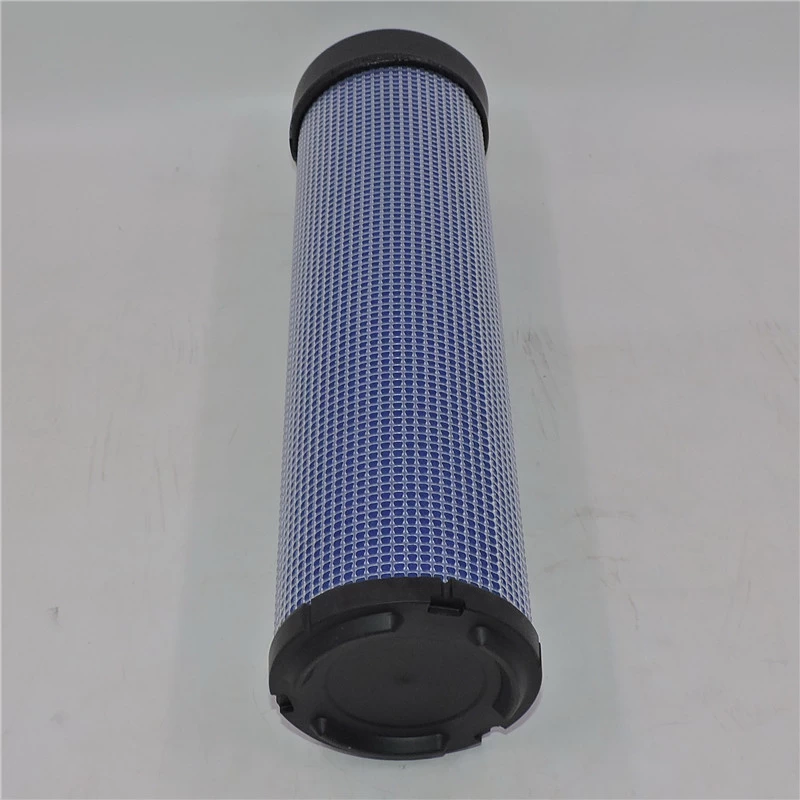

CAT Engine Air Filter 206-5235, 2065235

The 206-5235 can replace Fleetguard AF25618, Donaldson P780523, Baldwin RS5335,Komatsu 600-185-2500, 600-185-2520..


Part Number:206-5235, 2065235


Part Name:Air Filter


Brand:Caterpillar




CAT Engine Air Filter 206-5235, 2065235

Cross Reference:

Fleetguard AF25618, Donaldson P780523, Baldwin RS5335,Komatsu 600-185-2500, 600-185-2520



The 206-5235 Parameter:

Part Number

206-5235, 2065235

Parts Name

Air Filter

Brand

Caterpillar

Overall Height

381.00 mm

Outer Diameter

108.00 mm

Inner Diameter

85.70 mm

Efficiency Rating

Standard Efficiency

Primary vs Secondary

Secondary

Seal Type

Radial Seal



The 206-5235 Features:

Tasked with protecting the engine while the primary filter is being changed or in the event of a breach in the main filter, this secondary unit plays a critical role in preventing damage due to contaminants.



Constructed of durable materials and manufactured to meet Caterpillar’s stringent specifications, these air filters deliver the consistent quality and reliability that Cat owners count on.



The 206-5235 has Two attributes:

1. Environmentally friendly

2. Increased airflow with less restriction

3. Serves the critical role of back-up filtration


The 206-5235 Application:

Compatible Models

EXC
315D L 319D 319D L 330C, 319D LN 318C, 315C, 319C

IENG
C4.4, SPF343C

EPG
C4.4DE88E0 C4.4, C4.4DE65E3

TRACK EXCAVATORS
315DL

TMH
TH460B, TH350B, TH417C, TH580B, TH314D, TH560B, TH340B, TH330B, TH417D, TH360B, TH355B, TH220B

COMP
CB-534D, CB-54 CP-533E, CS-54 CS-533E, PS-360C, CB-64 CB-564D, CS-44 CP-44 CP-54

AP
BG-225C, BG-230D, AP-650B, AP-800D
