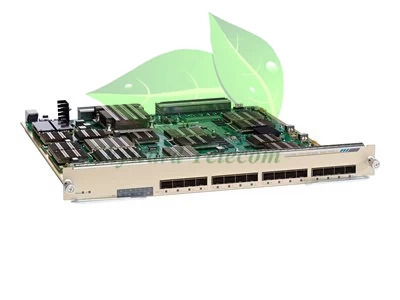

C6800-8P10G Overview
The Cisco Catalyst 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL
Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three
modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules. C6800-8P10G= is the Catalyst 6800 8-port 10-Gigabit
Ethernet Fiber Module Spare, it provides two 40G, eight 10G, eight 1G full-duplex transceiver ports.
C6800-8P10G Specification
|
Brand
|
Cisco
|
|
Part Number
|
Cisco
C6800-8p10g
|
|
Ports per module
|
8
ports—Eight 1G ports, or eight 10G ports, or two 40G ports. ·Ports are
numbered left to right. ·2 port groups. Port ranges per port group: ·1 to 4
·5 to 8
|
|
Backplane connection
|
80-Gbps
backplane bandwidth in Catalyst 6807-XL and 6500-E chassis
|
|
Chassis/slot support
|
Can
occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in
Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6
and 9-13 in a Cisco Catalyst 6513-E
|
|
Maximum frame size
|
Up
to 9216 bytes per frame
|
|
Module oversubscription rate
|
1:1
(When all eight 10G ports are used.)
|
|
Number of forwarding engines
|
1
|
|
Supervisor engine support
|
Supervisor
Engine 2T-10GE
Supervisor Engine 6T
|
|
Software support
|
With
Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later With
Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later
|
|
Fabric channel speed
|
In
a Cisco Catalyst 6807-XL chassis—80 GB per second
In a Cisco Catalyst 6500-E series chassis—80 GB per second
|
|
Warranty
|
One
year
|
|
Lead time
|
2-3
business days
|
|
Shipment
|
DHL,
Fedex, Aramex, EMS or per request
|
|
