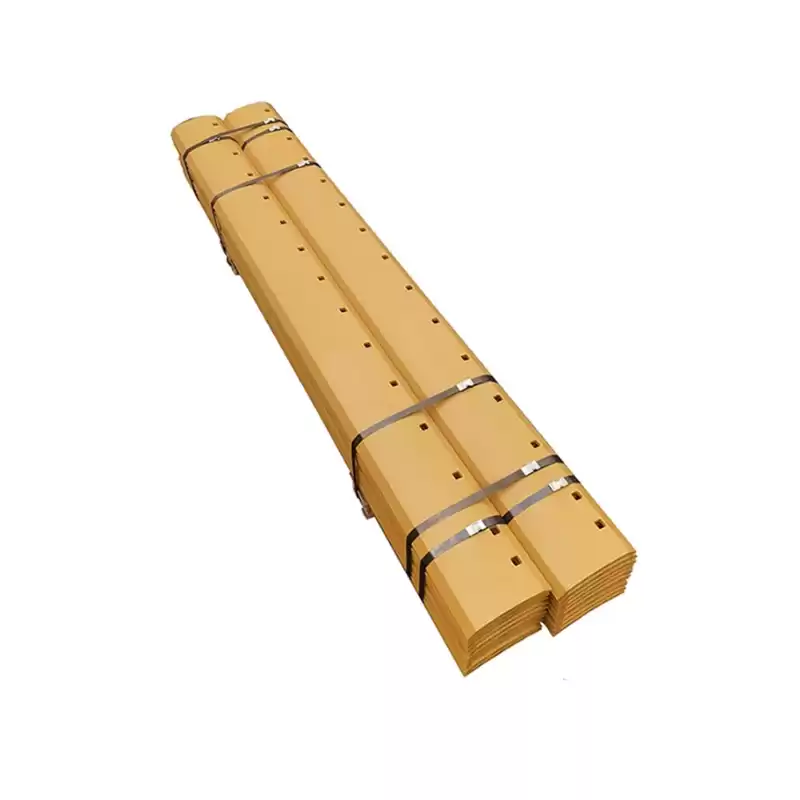

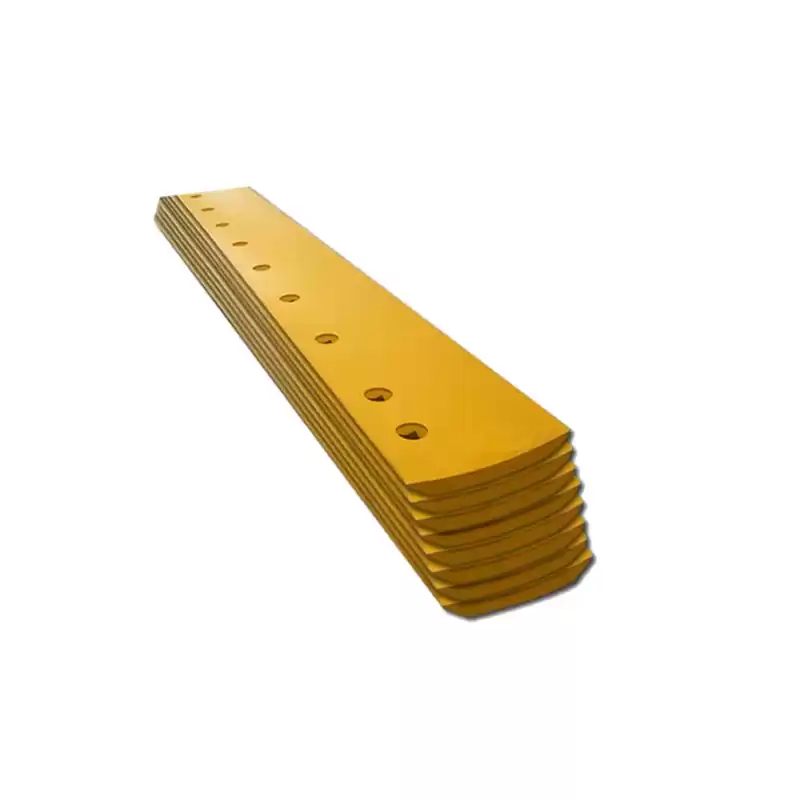

Replacement Caterpillar 9W2301 Cutting Edges
Product Specification
|
Product:
|
Motor Grader Blades,Cutting Edge, End Bits
|
|
Material:
|
Carbon steel/Boron
steel
|
|
Production
Process:
|
Heat
Treatment/Machining
|
|
Color:
|
Yellow or as
customers' request
|
|
Finish:
|
Smooth
|
|
Application:
|
Bulldozers,/Graders,/Loaders/Shovel
|
|
Certification:
|
ISO9001
|
|
Offer
customized Service :
|
Yes
|
|
Working
conditions:
|
Mining
&Construction &Road &Agricuture &Earth moving
|
Our advantages
-
Suitable for most of scraper, grader, loader, excavator, bull dozer, etc. in market
-
High quality raw material and professional heat treatment, our product's wear life and performance are 15-20% higher than most of other similar product in market
-
Perfect quality control system, and full range of advanced facilities, like income material analysis, Impact test facility, Tensile Strength test facility, etc.
-
Our products are applicable for Caterpillar, Komatsu, Hitachi, Daewoo, Hyundai, Case, JCB, etc.
-
Full range of different kinds of cutting edges, blades and end bits for different kinds of machinery
Cutting Edges and Blades, End Bits Compatible Model
|
Grader
blades
|
|
Part No.
|
Dimension(mm)
|
Holes
|
Bolt size
|
|
Part No.
|
Dimension(mm)
|
Holes
|
Bolt size
|
|
5D9553
|
1828X152X16
|
13
|
5/8"
|
4T2231
|
1828X203X25
|
13
|
3/4"
|
|
5D9554
|
2133X152X16
|
15
|
5/8"
|
4T2233
|
2133x203x25
|
15
|
3/4"
|
|
5D9558
|
1828X203X19
|
13
|
5/8"
|
4T2237
|
2438x203x25
|
17
|
5/8"
|
|
5D9559
|
2133X203X19
|
15
|
5/8"
|
5B5564
|
1828x152x16
|
8
|
5/8"
|
|
5D9561
|
2133X203X16
|
15
|
5/8"
|
5B5562
|
2133x152x16
|
9
|
5/8"
|
|
5D9562
|
1828X203X16
|
13
|
5/8"
|
9W2301
|
2438x152x13
|
10
|
5/8"
|
|
7D1577
|
2133X203X19
|
15
|
3/4"
|
9W2299
|
2133x152x13
|
9
|
5/8"
|
|
7D1949
|
2438X203X19
|
17
|
3/4"
|
9W2302
|
2438x152x13
|
10
|
3/4"
|
|
7D1588
|
2133X203X16
|
15
|
3/4"
|
9W2309
|
1219x203x13
|
6
|
5/8"
|
|
4T2244
|
1828X203X25
|
13
|
5/8"
|
8J9821
|
2438x203x16
|
17
|
3/4"
|
|
4T2242
|
2133X203X25
|
15
|
5/8"
|
9W2297
|
1828x152x13
|
8
|
5/8"
|
|
4T2236
|
2438X203X25
|
17
|
3/4"
|
234-70-12670
|
2133x203x19
|
15
|
5/8"
|
|
9J3658
|
2133X152X16
|
15
|
3/4"
|
234-70-12710
|
2133x203x16
|
15
|
3/4"
|
|
7D4508
|
1524X152X16
|
11
|
5/8"
|
234-70-12193
|
2133x152x16
|
15
|
5/8"
|
|
5D9556
|
1828X152X19
|
13
|
5/8"
|
4T3036
|
2133x203x19
|
15
|
5/8"
|
|
5D9557
|
2133X152X19
|
15
|
5/8"
|
4T3007
|
1828x203x19
|
13
|
5/8"
|
|
3G7966
|
1524X152X19
|
11
|
5/8"
|
4T3034
|
1524x203x19
|
11
|
5/8"
|
|
9J3657
|
1828X152X16
|
13
|
3/4"
|
4T3037
|
2438x203x19
|
17
|
3/4"
|
|
PS: The models above are just for reference, we can't list all
models here. We can supply more products as your requirements. Please feel to
contact with us.
|
|
Grader curved cutting edge & Bulldozer cutting
edge
|
|
Part No.
|
Main dimension (mm)
|
Holes
|
Dias.
|
|
4T3007
|
1828*203*19
|
13
|
5/8"
|
|
4T3032
|
2133*203*19
|
15
|
3/4"
|
|
4T3036
|
2133*203*19
|
15
|
5/8"
|
|
4T3037
|
2438*203*19
|
17
|
3/4"
|
|
4T3034
|
1524*203*19
|
11
|
5/8"
|
|
7T3497
|
1524*203*25
|
11
|
5/8"
|
|
7T3498
|
2133*203*25
|
15
|
5/8"
|
|
7T3499
|
1828*203*25
|
13
|
5/8"
|
|
4T6502
|
1828*254*25
|
13
|
3/4"
|
|
4T2948
|
1063*254*19
|
7
|
3/4"
|
|
4T2989
|
1063*254*25
|
6
|
3/4"
|
|
9W6658
|
851*406*45
|
6
|
1-1/4"
|
|
9W3931
|
757*406*45
|
6
|
1-1/4"
|
|
9W8215
|
1130*203*19
|
4
|
5/8"
|
|
6Y5359
|
900*254*25
|
6
|
7/8"
|
|
4T2985
|
802*254*25
|
6
|
3/4"
|
|
4T2991
|
708*254*25
|
6
|
3/4"
|
|
4T8081
|
2260*203*16
|
6
|
5/8"
|
|
4T2979
|
2029*203*16
|
6
|
5/8"
|
|
4T3009
|
1521*203*19
|
6
|
3/4"
|
|
4T3004
|
1440*203*19
|
6
|
3/4"
|
|
4T6659
|
1052*203*19
|
6
|
3/4"
|
|
4T3013
|
1010*203*19
|
6
|
3/4"
|
|
4T3029
|
992*203*19
|
6
|
5/8"
|
|
4T3005
|
859*203*19
|
6
|
5/8"
|
|
4T3006
|
808*203*19
|
6
|
5/8"
|
|
1U4458
|
1064*406*35
|
6
|
1-1/4"
|
|
PS: The models
above are just for reference, we can't list all models here. We can supply
more products as your requirements. Please feel to contact with us.
|
|
Bulldozer
End Bits
|
|
Part number
(right)
|
Part number (left)
|
Length(mm)
|
Width(mm)
|
Thickness(mm)
|
Hole size
|
Hole quantity
|
|
8E4193
|
8E4194
|
570
|
392
|
40
|
1"
|
7
|
|
3G8315
|
3G8316
|
531
|
293
|
30
|
7/8"
|
7
|
|
8E4197
|
8E4196
|
585
|
408
|
50
|
1"
|
7
|
|
3G8295
|
3G8296
|
402
|
221
|
25
|
5/8"
|
6
|
|
3G8297
|
3G8298
|
402
|
221
|
25
|
3/4"
|
6
|
|
3G8321
|
3G8322
|
415
|
245
|
25
|
5/8"
|
6
|
|
4T5407
|
4T5408
|
520
|
252
|
25
|
3/4"
|
4
|
|
4T3043
|
4T3044
|
289.5
|
203
|
19
|
5/8"
|
3
|
|
3G8319
|
3G8320
|
415
|
245
|
25
|
3/4"
|
6
|
|
8E4193
|
8E4194
|
600
|
400
|
35
|
1"
|
7
|
|
144-70-11260
|
144-70-11250
|
328
|
258
|
25
|
3/4"
|
5
|
|
17M-71-21940
|
17M-71-21930
|
698
|
387
|
40
|
1"
|
7
|
|
195-71-11183
|
195-71-11173
|
683
|
429
|
40
|
1"
|
7
|
|
175-71-22282
|
175-71-22272
|
540
|
315
|
40
|
7/8"
|
7
|
|
175-70-21136
|
175-70-21126
|
482
|
320
|
40
|
7/8"
|
7
|
|
150-70-21346
|
150-70-21356
|
435
|
254
|
30
|
3/4"
|
6
|
|
13F-Z27-1572
|
13F-Z27-1582
|
325
|
204
|
25
|
3/4"
|
5
|
|
PS: The models
above are just for reference, we can't list all models here. We can supply
more products as your requirements. Please feel to contact with us.
|
|
Motor
Grader End Bits
|
|
Part number
|
Length(mm)
|
Width(mm)
|
Thickness(mm)
|
Hole size
|
Hole quantity
|
|
6D1904
|
468
|
235
|
13
|
5/8''
|
8
|
|
6D1948
|
550
|
229
|
13
|
5/8''
|
8
|
|
6Y2805
|
552.9
|
235
|
13
|
3/4''
|
8
|
|
7D9999
|
597
|
235
|
13
|
3/4''
|
8
|
|
8E5529
|
477.2
|
152
|
16
|
3/4''
|
5
|
|
8E5531
|
467
|
152
|
16
|
5/8''
|
5
|
|
9J4406
|
474.5
|
152
|
16
|
3/4''
|
4
|
|
232-70-52180
|
481.8
|
152
|
16
|
5/8''
|
5
|
|
232-70-52190
|
482.6
|
229
|
13
|
5/8''
|
6
|
|
234-70-32240
|
621.1
|
279.4
|
13
|
3/4''
|
6
|
|
PS: The models
above are just for reference, we can't list all models here. We can supply
more products as your requirements. Please feel to contact with us.
|
