Caterpillar bulldozer bearing 6V-1013 6V1013
|
P/N
|
6V-1013
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Special cylindrical roller bearings
|
Product features:
1. Special bearing for bulldozer
2. It has high radial and axial load carrying capacity at the same time
3. High-strength bearing steel
4. The product has passed the real machine test
Our advantage:
100% factory quality inspection;
Allow small orders;
Effectively solve after-sales problems;
Better quality assurance;
There are many partners at home and abroad; trustworthy
Professional manufacturer of bulldozer bearings. More than 15 years of manufacturing experience
Production Process
Product Photo：
|

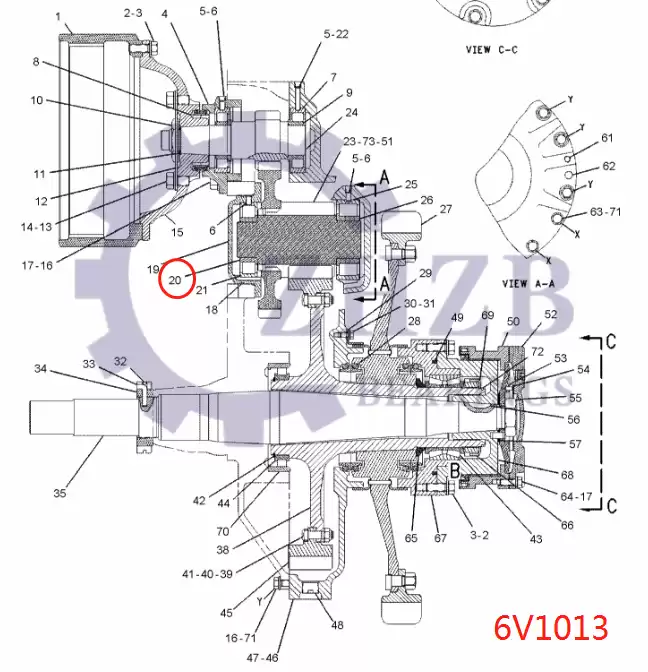

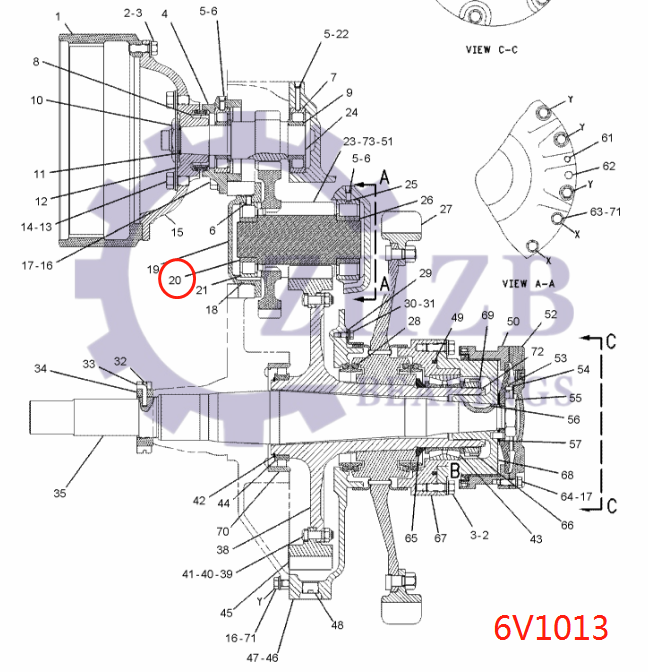

Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
0L-1026
|
[6]
|
PLUG-CUP
|
|
|
2.
|
1B-8742
|
[2]
|
KEY-WOODRUFF
|
|
|
3.
|
2B-7557
|
[6]
|
CORK
|
|
|
4.
|
2B-7906
|
[2]
|
PIN
|
|
|
5.
|
2B-8091
|
[2]
|
RING-RETAINING
|
|
|
6.
|
2S-4365
|
[2]
|
RETAINER AS
|
|
|
|
|
|
(EACH INCLUDES)
|
|
|
2S-4364
|
[1]
|
RETAINER
|
|
|
|
0S-0130
|
[2]
|
PIN
|
|
|
7.
|
2S-7603
|
[2]
|
DRUM (120-TEETH)
|
|
|
8.
|
2S-8415
|
[36]
|
WASHER (0.683X1.11X0.075-IN THK)
|
|
|
9.
|
3B-4990
|
[36]
|
BOLT (5/8-18X2-IN)
|
|
|
10.
|
3F-1953
|
[6]
|
DOWEL
|
|
|
11.
|
3P-6318
|
[2]
|
FLANGE-DRUM
|
|
|
12.
|
3P-7236
|
[2]
|
GASKET
|
|
|
13.
|
3S-9182
|
[2]
|
PLUG-MAGNETIC (FINAL DRIVE OIL DRAIN)
|
|
|
14.
|
3Y-7992
|
[2]
|
GEAR & PINION AS-FINAL DRIVE
|
|
|
15.
|
4M-7432
|
[2]
|
RING
|
|
|
16.
|
5A-7840
|
[2]
|
SHAFT-SPROCKET
|
|
|
17.
|
5A-7842
|
[2]
|
EXTENSION AS
|
|
|
|
|
|
(EACH INCLUDES)
|
|
|
5A-7844
|
[1]
|
BUSHING
|
|
|
18.
|
5M-2130
|
[2]
|
NUT
|
|
|
19.
|
5M-6628
|
[2]
|
LOCK
|
|
|
20.
|
5M-7383
|
[2]
|
CAGE
|
|
|
21.
|
5P-5066
|
[2]
|
BEARING-OUTER
|
|
|
22.
|
5P-5067
|
[2]
|
RACE-BEARING INNER
|
|
|
23.
|
5P-7143
|
[2]
|
SEAL GP-DUO-CONE
|
|
|
|
|
|
(EACH INCLUDES)
|
|
23A.
|
5P-7145
|
[2]
|
RING-SEALING
|
|
|
24.
|
5P-9176
|
[4]
|
BEARING
|
|
|
25.
|
5P-9177
|
[4]
|
RACE-BEARING INNER
|
|
|
26.
|
6B-4844
|
[2]
|
GUARD
|
|
|
27.
|
6P-9609
|
[2]
|
GASKET
|
|
|
28.
|
6T-8439
|
[4]
|
SEAL GP-DUO-CONE
|
|
|
|
|
|
(EACH INCLUDES)
|
|
28A.
|
2M-0344
|
[2]
|
RING-SEALING
|
|
|
29.
|
6V-1013
|
[2]
|
BEARING
|
|
|
30.
|
6V-1014
|
[2]
|
RACE-BEARING INNER
|
|
|
31.
|
7G-6986
|
[2]
|
LOCK
|
|
|
32.
|
7T-0342
|
[2]
|
SUPPORT AS-FRAME
|
|
|
|
|
|
(EACH INCLUDES)
|
|
|
7T-0341
|
[1]
|
SUPPORT
|
|
|
|
5M-6637
|
[1]
|
BUSHING
|
|
|
33.
|
9P-0418
|
[2]
|
CAGE
|
|
|
34.
|
9P-0564
|
[1]
|
CASE-FINAL DRIVE (RH)
|
|
|
35.
|
9P-0565
|
[1]
|
CASE-FINAL DRIVE (LH)
|
|
|
36.
|
9P-9361
|
[2]
|
GEAR-FINAL DRIVE (46-TEETH)
|
|
|
37.
|
9P-9362
|
[2]
|
PINION (11-TEETH)
|
|
|
38.
|
9W-8929
|
[2]
|
RETAINER-SEAL
|
|
|
39.
|
117-1618 Y
|
[2]
|
SPROCKET GP
|
|
|
40.
|
118-0029
|
[2]
|
RETAINER
|
|
|
41.
|
118-0031
|
[2]
|
HOLDER AS
|
|
|
|
|
|
(EACH INCLUDES)
|
|
|
9M-4007
|
[2]
|
DOWEL
|
|
|
42.
|
118-8605
|
[2]
|
BEARING AS
|
|
|
43.
|
132-3837
|
[2]
|
RACE-SPECIAL ROLLER
|
|
|
44.
|
134-6261
|
[2]
|
BEARING-SPECIAL
|
|
|
45.
|
146-5808
|
[2]
|
CAP-BEARING
|
|
|
46.
|
192-2368
|
[2]
|
LOCK
|
|
|
47.
|
192-2369
|
[2]
|
NUT (4-3/4-12-THD)
|
|
|
48.
|
193-0349
|
[2]
|
SPACER (121.22X155.45X18-MM THK)
|
|
|
49.
|
293-4284
|
[2]
|
HUB
|
|
|
50.
|
0S-0509
|
[10]
|
BOLT (3/8-16X0.75-IN)
|
|
|
51.
|
1S-4974
|
[2]
|
SEAL-O-RING
|
|
|
52.
|
2B-8162
|
[6]
|
DOWEL
|
|
|
53.
|
2K-4821
|
[36]
|
LOCKNUT (5/8-18-THD)
|
|
|
54.
|
2M-0849
|
[64]
|
WASHER-HARD (13.5X25.5X5-MM THK)
|
|
|
55.
|
2S-4366 B
|
[8]
|
SHIM (0.915-MM THK)
|
|
|
56.
|
3B-1915
|
[32]
|
BOLT (3/8-16X1.375-IN)
|
|
|
57.
|
3B-4506
|
[42]
|
LOCKWASHER
|
|
|
58.
|
3H-4174
|
[2]
|
DOWEL
|
|
|
59.
|
3K-0360
|
[2]
|
SEAL-O-RING
|
|
|
60.
|
4B-1281
|
[16]
|
SCREW-MACHINE (1/4-20X0.625-IN)
|
|
|
61.
|
4M-0061
|
[2]
|
BOLT (5/16-18X0.75-IN)
|
|
|
62.
|
5P-2566
|
[68]
|
BOLT (1/2-13X1.5-IN)
|
|
|
63.
|
6V-0530
|
[2]
|
NUT (1-3/4-12-THD)
|
|
|
64.
|
7F-2339
|
[2]
|
NUT (1-3/4-12-THD)
|
|
|
65.
|
7X-0345
|
[40]
|
BOLT (5/8-11X1.75-IN)
|
|
|
66.
|
7X-0521
|
[4]
|
WASHER-HARD (20X36.5X5-MM THK)
|
|
|
67.
|
7X-3392
|
[24]
|
WASHER-HARD (13.5X22.5X3-MM THK)
|
|
|
68.
|
8C-4436
|
[12]
|
BOLT (1/2-13X1.375-IN)
|
|
|
69.
|
8T-4122
|
[40]
|
WASHER-HARD (17X32X3.5-MM THK)
|
|
|
70.
|
8T-9391
|
[8]
|
BOLT (1/2-13X3.75-IN)
|
|
|
71.
|
8T-9397
|
[4]
|
BOLT (3/4-10X1.25-IN)
|
|
|
72.
|
9S-8005
|
[2]
|
PLUG (3/4-16-THD)(FINAL DRIVE, OIL FILL)
|
|
|
73.
|
9W-7989
|
[2]
|
SEAL
|
|
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Product production process: rough forgings-annealing-turning processing-heat treatment-grinding processing-super fine grinding-finished product assembly.
