CATERPILLAR excavator slewing bearing 199-4582
|
P/N
|
199-4582
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Radial needle roller bearings
|
Product features:
1. Special bearing for excavator slewing gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' slewing bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

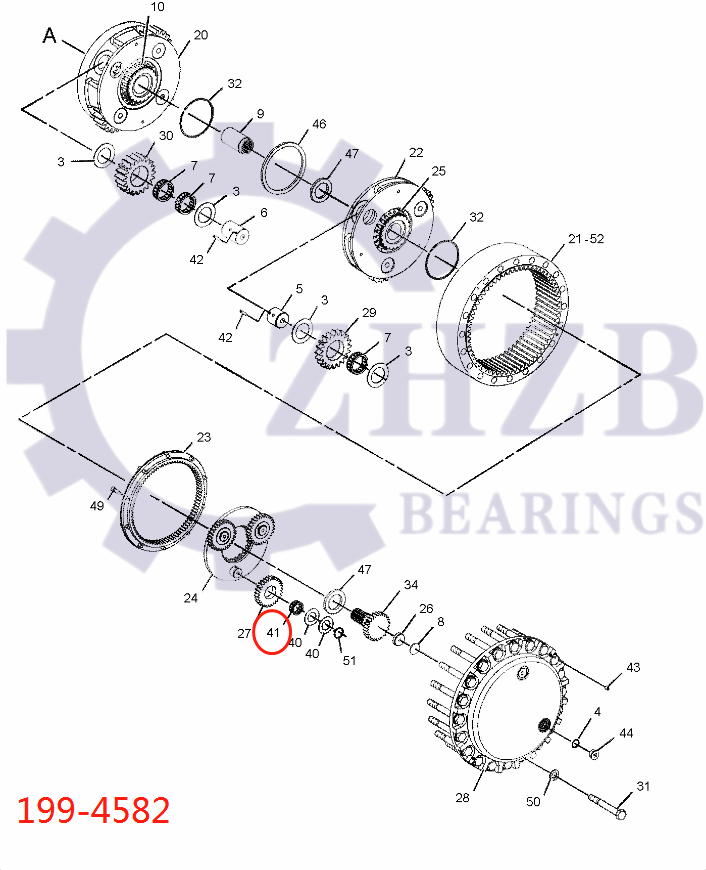

Any other parts for the slewing gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
2R-0524
|
[2]
|
CONE-BEARING
|
|
|
2.
|
2R-0525
|
[2]
|
CUP-BEARING
|
|
|
3.
|
4I-7576
|
[14]
|
WASHER (66.3X104X3-MM THK)
|
|
|
4.
|
7M-8485
|
[2]
|
SEAL-O-RING
|
|
|
5.
|
7Y-0661
|
[3]
|
SHAFT-PLANETARY
|
|
|
6.
|
7Y-0662
|
[4]
|
SHAFT-PLANETARY
|
|
|
7.
|
199-4583
|
[11]
|
BEARING AS
|
|
|
8.
|
7Y-0808 B
|
[1]
|
SHIM (1.6-MM THK)
|
|
|
9.
|
7Y-1469
|
[1]
|
COUPLING
|
|
|
10.
|
7Y-1470
|
[1]
|
GEAR-SUN (21-TEETH)
|
|
|
11.
|
7Y-1472 B
|
[1]
|
SHIM (0.15-MM THK)
|
|
|
12.
|
7Y-1473 B
|
[1]
|
SHIM (0.3-MM THK)
|
|
|
13.
|
7Y-1474 B
|
[1]
|
SHIM (0.4-MM THK)
|
|
|
14.
|
7Y-1475 B
|
[1]
|
SHIM (0.5-MM THK)
|
|
|
15.
|
7Y-1476 B
|
[1]
|
SHIM (0.6-MM THK)
|
|
|
16.
|
7Y-1477 B
|
[1]
|
SHIM (0.7-MM THK)
|
|
|
17.
|
7Y-1478 B
|
[1]
|
SHIM (0.8-MM THK)
|
|
|
18.
|
7Y-1479 B
|
[1]
|
SHIM (1-MM THK)
|
|
|
19.
|
7Y-1480 B
|
[1]
|
SHIM (1.6-MM THK)
|
|
|
20.
|
7Y-1482
|
[1]
|
CARRIER-PLANETARY
|
|
|
21.
|
7Y-1483
|
[1]
|
GEAR-RING (63-TEETH)
|
|
|
22.
|
7Y-1485
|
[1]
|
CARRIER-PLANETARY
|
|
|
23.
|
7Y-1487
|
[1]
|
GEAR-RING (85-TEETH)
|
|
|
24.
|
7Y-1488
|
[1]
|
CARRIER AS
|
|
|
|
7Y-0656
|
[3]
|
SHAFT-PLANETARY
|
|
|
25.
|
7Y-1491
|
[1]
|
GEAR-SUN (21-TEETH)
|
|
|
26.
|
7Y-1493
|
[1]
|
SPACER (8.7X50X14-MM THK)
|
|
|
27.
|
7Y-1495
|
[3]
|
GEAR-PLANETARY (29-TEETH)
|
|
|
28.
|
7Y-1498
|
[1]
|
COVER
|
|
|
29.
|
7Y-1499
|
[3]
|
GEAR-PLANETARY (20-TEETH)
|
|
|
30.
|
7Y-1504
|
[4]
|
GEAR-PLANETARY (20-TEETH)
|
|
|
31.
|
7Y-5235 M
|
[20]
|
BOLT (M24X3X190-MM)
|
|
|
32.
|
110-7217
|
[2]
|
RING-RETAINING
|
|
|
33.
|
114-1541
|
[6]
|
PIN-DOWEL
|
|
|
34.
|
169-5559
|
[1]
|
GEAR-SUN (26-TEETH)
|
|
|
35.
|
199-4719
|
[1]
|
GEAR-COUPLING
|
|
|
36.
|
200-3489
|
[1]
|
HOUSING-MOTOR
|
|
|
37.
|
200-3490
|
[1]
|
HOUSING-GEAR
|
|
|
38.
|
205-9025
|
[1]
|
SEAL GP-DUO-CONE
|
|
|
|
205-9024
|
[2]
|
RING-TORIC
|
|
|
39.
|
227-6048
|
[12]
|
WASHER (26X40X4-MM THK)
|
|
|
40.
|
094-0584
|
[6]
|
WASHER (40.3X72X1-MM THK)
|
|
|
41.
|
199-4582
|
[3]
|
BEARING AS
|
|
|
42.
|
095-0891
|
[7]
|
PIN-SPRING
|
|
|
43.
|
096-3216 M
|
[2]
|
SETSCREW-SOCKET (M12X1.75X12-MM)
|
|
|
44.
|
3E-2338
|
[2]
|
PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
|
|
|
45.
|
6V-8133 M
|
[12]
|
BOLT (M24X3X80-MM)
|
|
|
46.
|
7Y-1484
|
[1]
|
SPACER (191X221X8.5-MM THK)
|
|
|
47.
|
7Y-1492
|
[2]
|
SPACER (67X101.1X10-MM THK)
|
|
|
48.
|
8C-5240
|
[1]
|
SEAL-O-RING
|
|
|
49.
|
8T-3957 M
|
[10]
|
BOLT-SOCKET HEAD (M12X1.75X30-MM)
|
|
|
50.
|
8T-4167
|
[20]
|
WASHER-HARD (26X44X4-MM THK)
|
|
|
51.
|
8T-4240
|
[3]
|
RING-RETAINING
|
|
|
52.
|
1U-8846 B
|
|
SEALANT-GASKET
|
|
