CATERPILLAR excavator travel bearing 102-6508
|
P/N
|
102-6508
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Radial needle roller bearings
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

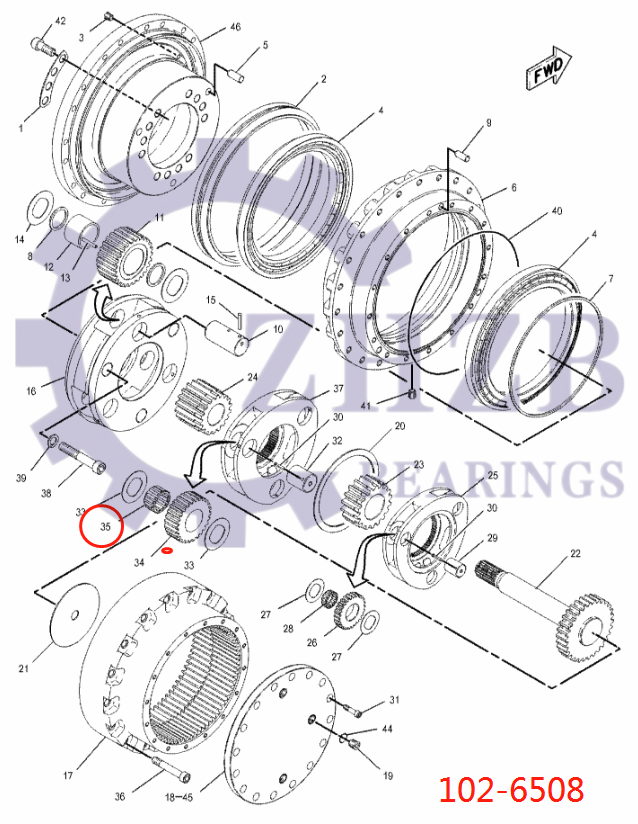

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
102-6533
|
[3]
|
PLATE
|
|
|
2.
|
096-8039
|
[1]
|
SEAL
|
|
|
3.
|
096-5971
|
[1]
|
PLUG
|
|
|
4.
|
102-6525
|
[2]
|
BEARING
|
|
|
5.
|
102-6532
|
[3]
|
PIN
|
|
|
6.
|
102-6526
|
[1]
|
HOUSING
|
|
|
7.
|
102-6544
|
[1]
|
SHIM PACK (INCLUDES 6 SHIMS)
|
|
|
8.
|
102-6517
|
[6]
|
COLLAR
|
|
|
9.
|
102-6536
|
[3]
|
PIN
|
|
|
10.
|
102-6515
|
[3]
|
SHAFT
|
|
|
11.
|
102-6513
|
[3]
|
GEAR-PLANETARY
|
|
|
12.
|
102-6516
|
[3]
|
BUSHING
|
|
|
13.
|
102-6514
|
[51]
|
ROLLER
|
|
|
14.
|
102-6518
|
[6]
|
WASHER
|
|
|
15.
|
102-6519
|
[3]
|
PIN
|
|
|
16.
|
102-6512
|
[1]
|
CARRIER
|
|
|
17.
|
102-6534
|
[1]
|
GEAR-RING
|
|
|
18.
|
114-1336
|
[1]
|
COVER
|
|
|
19.
|
114-1338
|
[3]
|
PLUG
|
|
|
20.
|
102-6521
|
[1]
|
PLATE
|
|
|
21.
|
102-6545
|
[1]
|
KIT-PLATE
|
|
|
22.
|
102-6520
|
[1]
|
GEAR-SUN
|
|
|
23.
|
102-6522
|
[1]
|
GEAR-SUN
|
|
|
24.
|
102-6523
|
[1]
|
GEAR-SUN
|
|
|
25.
|
102-6502
|
[1]
|
CARRIER
|
|
|
26.
|
102-6503
|
[3]
|
GEAR-PLANETARY
|
|
|
27.
|
093-4391
|
[6]
|
WASHER
|
|
|
28.
|
093-5133
|
[3]
|
BEARING
|
|
|
29.
|
102-6504
|
[3]
|
SHAFT
|
|
|
30.
|
095-7945
|
[6]
|
PIN-SPRING
|
|
|
31.
|
6V-3938 M
|
[16]
|
BOLT (M10X1.5X20-MM)
|
|
|
32.
|
102-6509
|
[3]
|
SHAFT
|
|
|
33.
|
102-6510
|
[6]
|
WASHER
|
|
|
34.
|
102-6507
|
[3]
|
GEAR-PLANETARY
|
|
|
35.
|
102-6508
|
[3]
|
BEARING
|
|
|
36.
|
8C-8729 M
|
[16]
|
BOLT-SOCKET HEAD (M12X1.75X80-MM)
|
|
|
37.
|
102-6506
|
[1]
|
CARRIER
|
|
|
38.
|
3E-8008 M
|
[3]
|
BOLT-SOCKET HEAD (M16X2X90-MM)
|
|
|
39.
|
095-0819
|
[3]
|
LOCKWASHER
|
|
|
40.
|
102-6535
|
[1]
|
SEAL
|
|
|
41.
|
095-0966
|
[1]
|
PLUG
|
|
|
42.
|
096-7265 M
|
[12]
|
BOLT
|
|
|
44.
|
095-1592
|
[3]
|
SEAL-O-RING
|
|
|
45.
|
1U-8846 B
|
|
SEALANT-GASKET
|
|
|
46.
|
102-6524
|
[1]
|
HOUSING
|
|
