CATERPILLAR excavator Hydraulic pump bearing 165-2801
|
P/N
|
165-2801
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Cylindrical Roller Bearings
|
Product features:
1. Special bearing for excavator Hydraulic pump
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' Hydraulic pump bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of Hydraulic pump bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

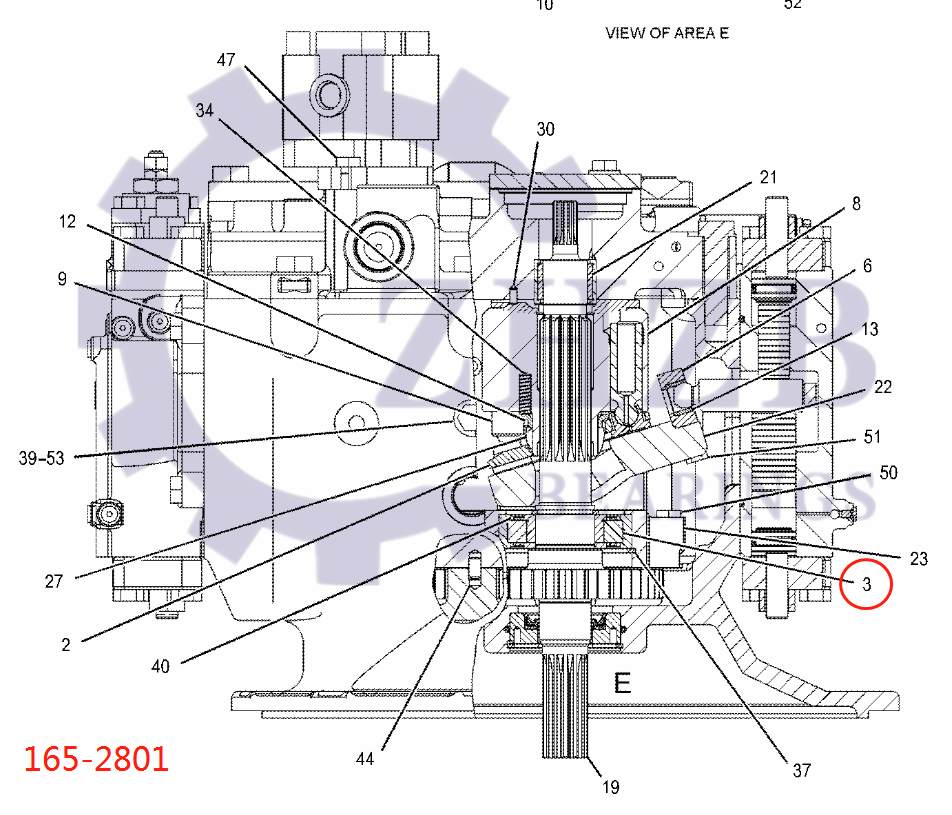

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
111-9916 Y
|
[1]
|
VALVE GP-SOLENOID (PRESSURE REDUCING)(PRESSURE REDUCING)
|
|
|
2.
|
165-2793
|
[2]
|
RETAINER
|
|
|
3.
|
165-2801
|
[2]
|
BEARING-ROLLER
|
|
|
4.
|
353-5837
|
[1]
|
SEAL-LIP TYPE
|
|
|
5.
|
165-2804
|
[1]
|
FLANGE
|
|
|
6.
|
165-2805
|
[2]
|
BLOCK
|
|
|
7.
|
165-3838
|
[1]
|
BARREL AS
|
|
|
8.
|
165-3839
|
[1]
|
BARREL AS
|
|
|
9.
|
165-3847
|
[18]
|
PISTON AS
|
|
|
10.
|
165-3853
|
[1]
|
COVER
|
|
|
11.
|
173-1203
|
[1]
|
PUMP GP-GEAR (BLADE)
|
|
|
|
327-8740
|
[1]
|
KIT-SEAL (GEAR PUMP)(GEAR PUMP)
|
|
|
|
|
|
(INCLUDES RING, GASKET & SEALS)
|
|
12.
|
176-8131
|
[2]
|
SPACER-SPECIAL
|
|
|
13.
|
176-8132
|
[2]
|
BEARING
|
|
|
14.
|
190-4896
|
[2]
|
PLUG
|
|
|
15.
|
192-0573
|
[4]
|
PIN-DOWEL
|
|
|
16.
|
199-0518
|
[2]
|
SEAL-O-RING
|
|
|
17.
|
207-2985
|
[2]
|
ORIFICE
|
|
|
18.
|
225-6216
|
[1]
|
GASKET
|
|
|
19.
|
267-1628
|
[1]
|
SHAFT-DRIVE
|
|
|
20.
|
267-1629
|
[1]
|
SHAFT-DRIVEN
|
|
|
21.
|
267-8084
|
[2]
|
BEARING-NEEDLE
|
|
|
22.
|
268-6263
|
[2]
|
CAM
|
|
|
23.
|
268-6265
|
[1]
|
PLATE
|
|
|
24.
|
269-2433
|
[4]
|
BEARING-CRADLE
|
|
|
25.
|
282-9155 Y
|
[2]
|
HEAD GP-PUMP
|
|
|
26.
|
282-9192
|
[1]
|
CASE-FLANGE
|
|
|
27.
|
298-5732
|
[2]
|
RETAINER-BALL
|
|
|
28.
|
311-7407
|
[1]
|
BLOCK-PORT
|
|
|
30.
|
094-1875
|
[6]
|
DOWEL
|
|
|
31.
|
094-1882
|
[12]
|
PLUG
|
|
|
32.
|
095-1663
|
[1]
|
SEAL-O-RING
|
|
|
34.
|
165-2799
|
[12]
|
SPRING
|
|
|
35.
|
189-9763
|
[4]
|
SEAL-O-RING
|
|
|
36.
|
1H-7339
|
[1]
|
SEAL-O-RING
|
|
|
37.
|
1J-6472
|
[2]
|
RING-RETAINING
|
|
|
38.
|
273-8320
|
[1]
|
SEAL-O-RING
|
|
|
39.
|
3J-1907
|
[3]
|
SEAL-O-RING
|
|
|
40.
|
6V-8144
|
[2]
|
RING-RETAINING
|
|
|
41.
|
7I-2272 M
|
[2]
|
BOLT (M5X0.8X12-MM)
|
|
|
42.
|
7X-2553 M
|
[5]
|
BOLT (M16X2X40-MM)
|
|
|
43.
|
7X-2556 M
|
[1]
|
BOLT (M16X2X100-MM)
|
|
|
44.
|
8C-3338
|
[4]
|
DOWEL
|
|
|
45.
|
8T-4121
|
[2]
|
WASHER-HARD (11X21X2.5-MM THK)
|
|
|
46.
|
8T-4136 M
|
[2]
|
BOLT (M10X1.5X25-MM)
|
|
|
47.
|
8T-4137 M
|
[2]
|
BOLT (M10X1.5X20-MM)
|
|
|
48.
|
8T-4139 M
|
[8]
|
BOLT (M12X1.75X30-MM)
|
|
|
49.
|
8T-4140 M
|
[2]
|
BOLT (M16X2X60-MM)
|
|
|
50.
|
8T-4185 M
|
[4]
|
BOLT (M10X1.5X50-MM)
|
|
|
51.
|
8T-7547 M
|
[4]
|
BOLT (M8X1.25X30-MM)
|
|
|
52.
|
8T-9599
|
[1]
|
RING-RETAINING
|
|
|
53.
|
9S-4191
|
[3]
|
PLUG (9/16-18-THD)
|
|
