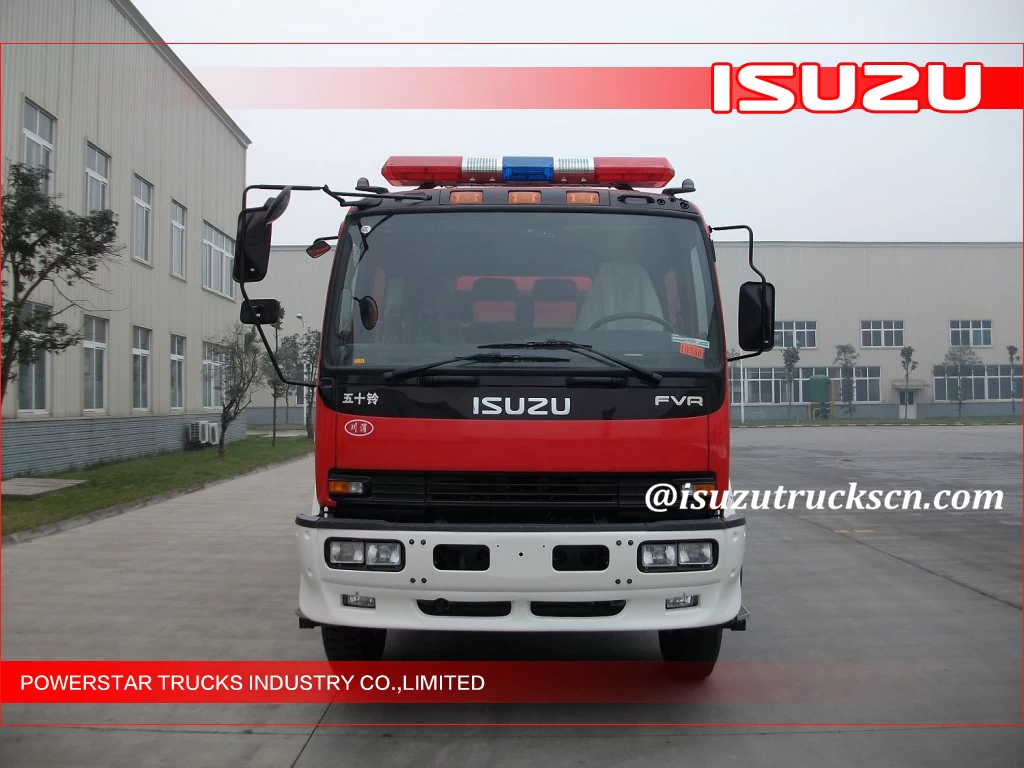

CB20.10/20.40 fire pump 5Ton fire fighting truck
Detailed Info
Main performance parameters
|
Item
|
parameter
|
|
Chassis
|
FVR34G2
|
|
Dimensions(lengthXwidthX height)
|
≤7500X2490X3500
|
|
Cab seating capacity
|
6
|
|
Engine model
|
6KH1-TC EURO III
|
|
Engine power(kw/r/min)
|
191/2500
|
|
Wheelbase(mm)
|
4500
|
|
Max.speed(km/h)
|
≥110
|
|
Tank capacity(kg)
|
water:1000
foam 1000
|
|
Pump model
|
CB20.10/20.40
|
|
Pump flow
|
Normal pressure(L/S/Mpa)40/1.0
Middle pressure(L/S/Mpa)20/2.0
|
|
Fire monitor model
|
PL32/PS40W
|
|
Fire monitor flow(L/S/Mpa)
|
32/40(1.0)
|
|
Fire monitor reach(m)
|
water≥50
foam≥45
|
