Paper widh:58/80/110MM(2/3/4INCH)
1D&2D Barcode Printing
ESC/POS Command set
Cloud and Webpage print optional

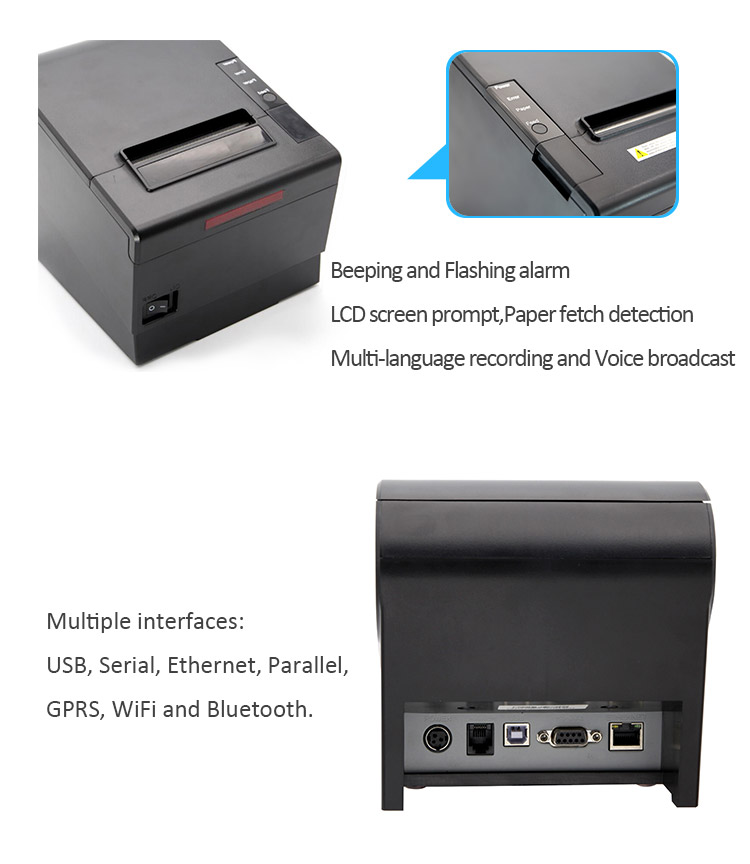

Multiple interfaces:
USB, Serial, Ethernet, Parallel,GPRS, WiFi and Bluetooth.
Product Specification
| Item |
CB810 |
| Interfaces |
USB/Ethernet/Serial/Parallel/Bluetooth/WiFi/GPRS |
| Printing method |
Thermal printing |
| Resolution |
203DPI, 8 dots/mm |
| Printing width |
72mm(576dots) |
| Printing speed |
250mm/s(Max) |
| Drawer Control |
RJ11-6P6C Socket, 24V |
| Command set |
ESC/POS compatible commands |
| Graphics printing |
Support dots printing with different densities, Support raster bitmap print, Support downloaded bit image print |
| Code pages |
Support simplified & traditional Chinese, English, Japanese and other 45 kinds of international character sets |
| UTF-8 |
Support |
| Bar codes |
UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; QR CODE; PDF417 |
| Paper width |
79.5±0.5mm |
| Paper roll diameter |
80mm(Max) |
| Cutting type |
Partial cut or Full cut |
| Detection function |
Paper out, Cover open, No paper fetch (Optional) |

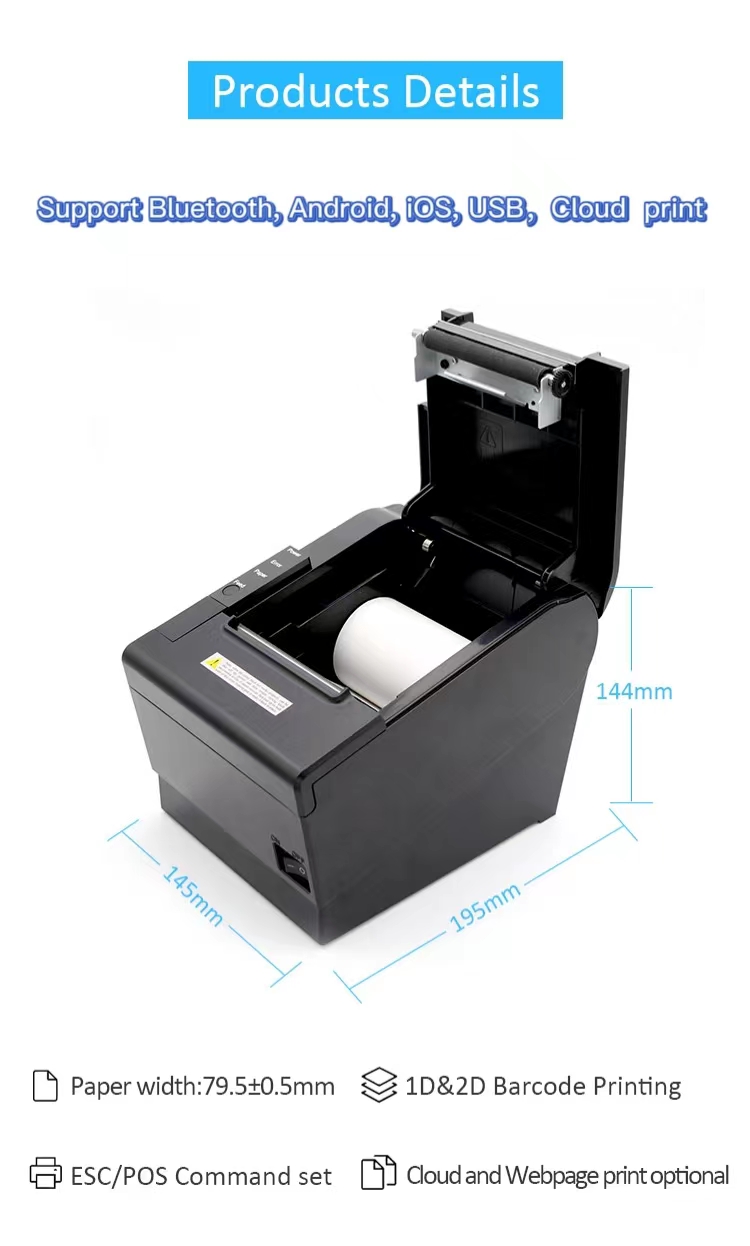

| Printer dimension |
195mm×145mm×144mm(L×W×H) |
| TPH life |
100km |
| Cutter life |
1,000,000 times |
| Driver procedure |
Windows(WIN7/WIN8/WIN10/Vista/XP/2000) Ubuntu 12.04 32/64 Ubuntu 14.04 32/64 MAC OS |
| Power Supply |
24VDC/2A |
