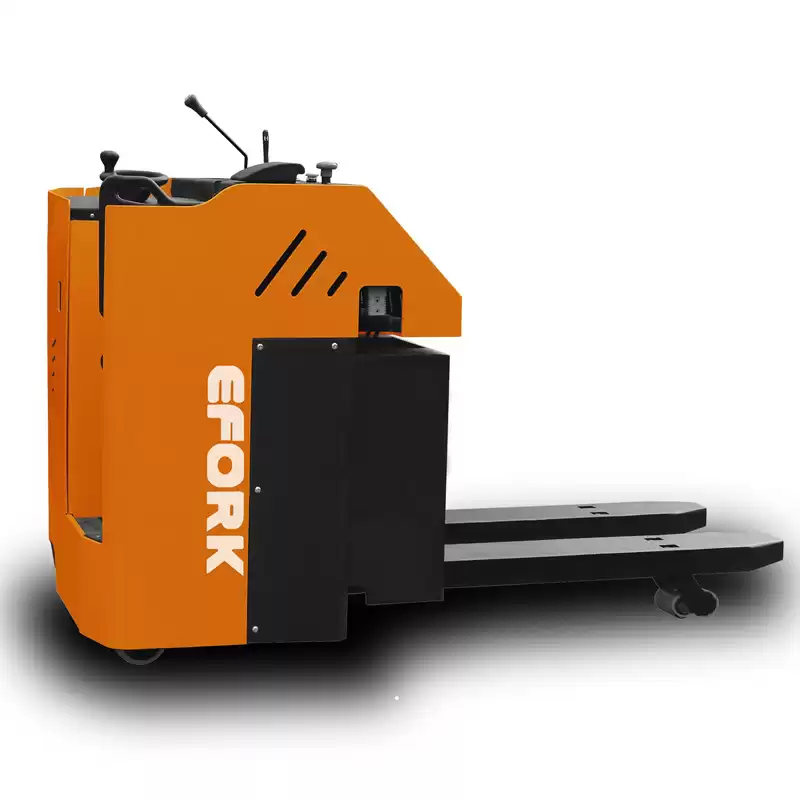

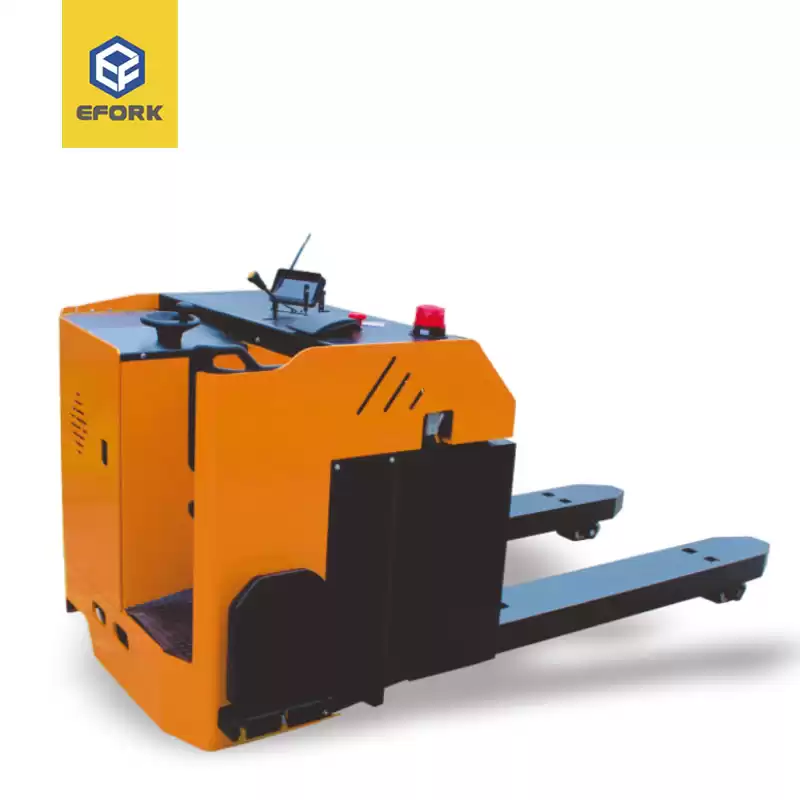

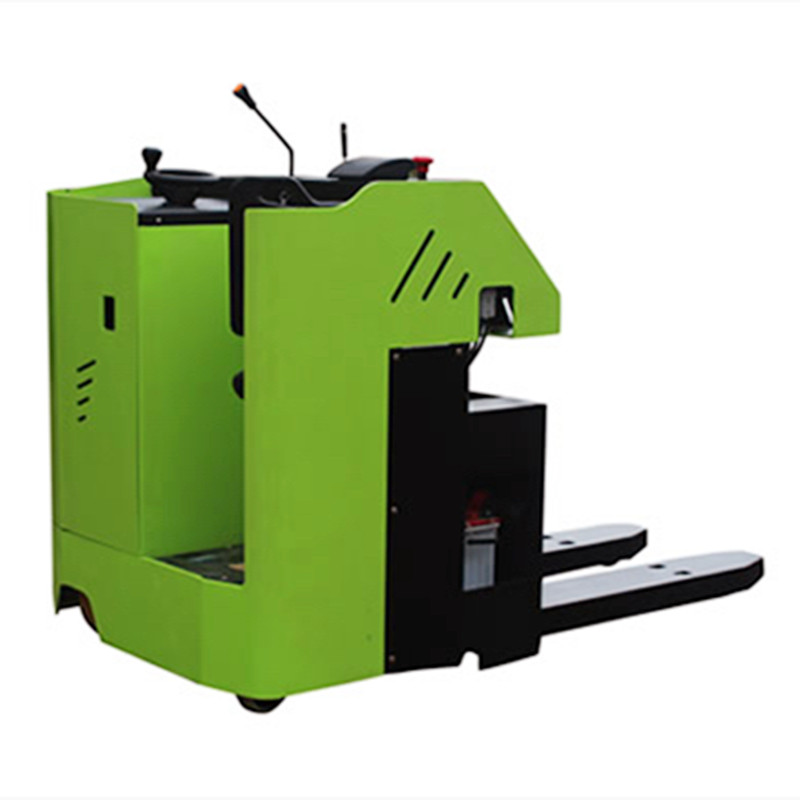

CBD Series Electric Pallet Truck 5.0/6.0/7.0/8.0t

The series forklift is a pallet truck that is mainly used for plane point-to-point handling.

● Horizontal handling of large tonnage goods;

●Middle and long distance handling;

● Frequent reversing occasions, such as loading and unloading on large trucks.


  • BrandEFORK
  • Warranty1 Year

Product Advantage:CBD Series Electric pallet truck 5.0/6.0/7.0/8.0t

High performance EFORK CBD series electric pallet trucks are perfect for your warehouse requirement.


Features:

  • Curtis transistor controller
  • High performance AC driving Motor
  • Germany made ZF gearbox
  • EPS system as standard option
  • Lower energy consumption, lower noise
  • Electron-magnetic brake
  • Ergonomic Self-made handle with safety reversing switch and horn


Basic parameters:

Name

Electric pallet truck standing type

Operation Type

Standing type

Model No.

UNIT

CBD60

Power Type



Full Electric

LoadCapacity

Kg

6000

Max lifting height

H(mm)

240

Load center

C(mm)

600

Wheel type



Polyurethane tire

Forksize

(mm)

1200*240

Fork outside width

 (mm)

720

Minimum ground clearance

 H1(mm)

120

Overall length

L(mm)

2370

Overall width

S(mm)

1090

Max.Walking Speed

Km/h

4/5

Grade ability

%

6

Drive Wheel

mm

Ø343*114

Wheel Front

mm

Ø80*110

Balance Wheel

mm

Ø180*76

 Battery capacity

V/Ah

48/300

Driving Motor

Kw

4.5

Lifting Motor

Kw

6.3

Beake



Electromagnetic

 Drive Controlling Type



AC

Walking Adjustable Type



Holzer accelerator


6.0-8.0T CBD Series Electric Pallet Truck

CBD Electric Pallet Truck



Product Tags electric pallet truck          CBD Electric Pallet Truck          heavy duty electric pallet truck          Operated Pallet Truck          6.0-8.0T CBD Electric Pallet Truck
