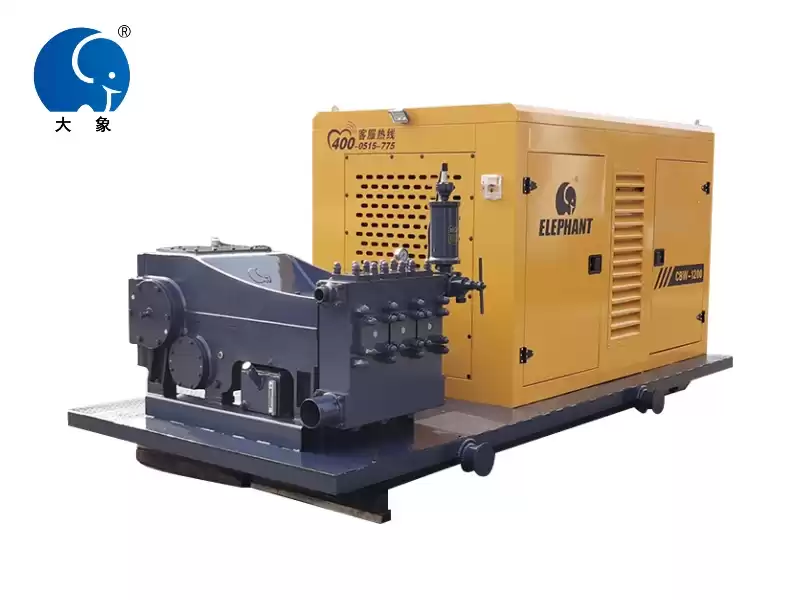

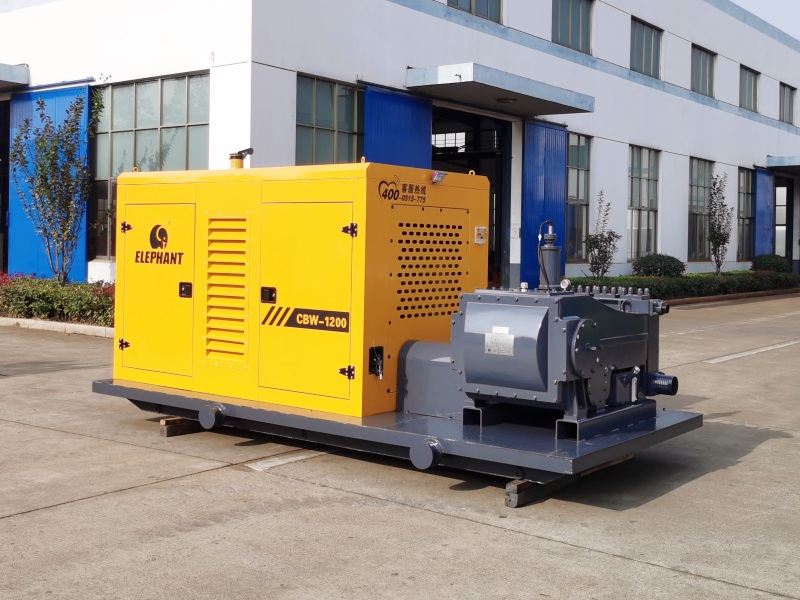

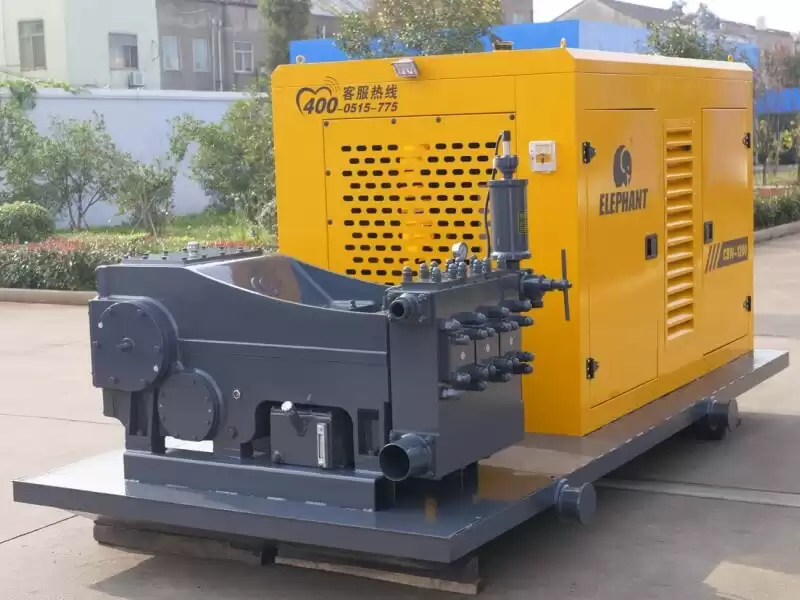

CBW-1200 Explosion-proof mud pump is a horizontal triplex reciprocating single-acting piston pump with five-speed flow.
It can not only meet the requirements of a variety of new drilling technologies, but also be used for various soft foundation grouting treatment, engineering construction drilling, water well drilling, mountain water supply, mine drainage, dyke grouting and other purposes.
Its main role in drilling process is to supply flushing fluid to the drilling hole to circulate in the drilling hole, so as to carry cuttings back to the ground, keep the bottom of the hole clean, protect the wall of the hole from collapse, and cool and lubricate the drill bit and drilling tool.
Features:
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Easy operation, reliable performance；
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
150 |
| Cyclinder Diameter (mm) |
120 |
| Flow (L/min) |
1200 890 660 485 363 |
| Pressure (Mpa) |
4.5 6 8 10 12 |
| Input Speed (r/min) |
100 |
| Dimensions (mm) |
3930*2096*1908 |
| Weight (kg) |
4180 |
| Diesel Model |
QSB5.9-C180 |
| Diesel Engine Power (KW) |
132 |
| Rated Speed (r/min) |
1800 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - Top-class heavy equipment company we cooperating：XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
