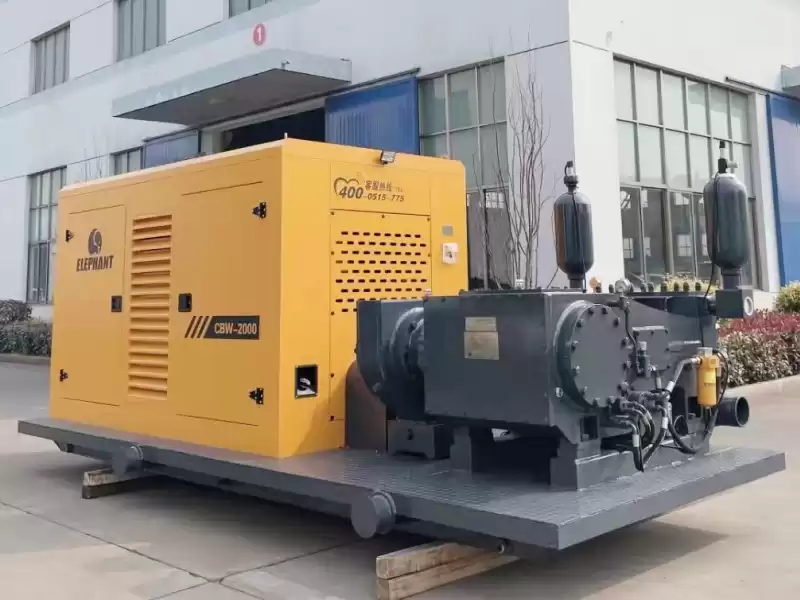

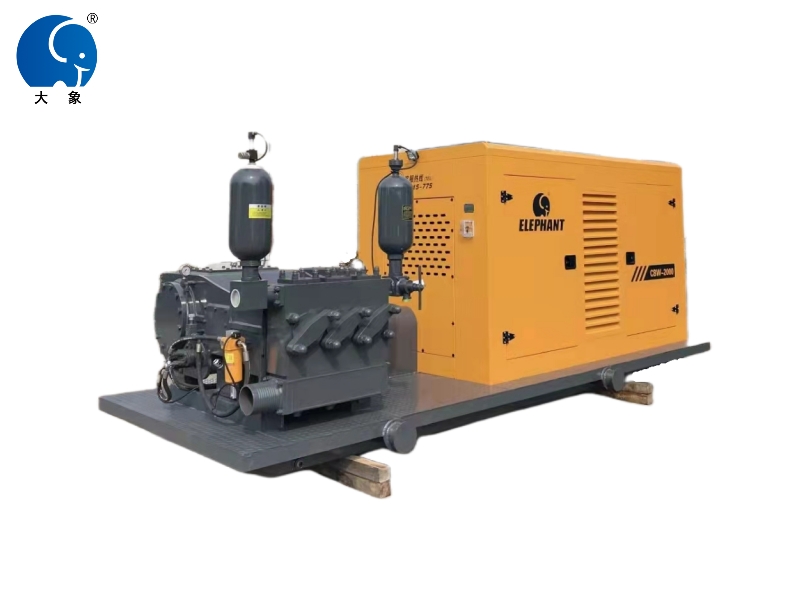

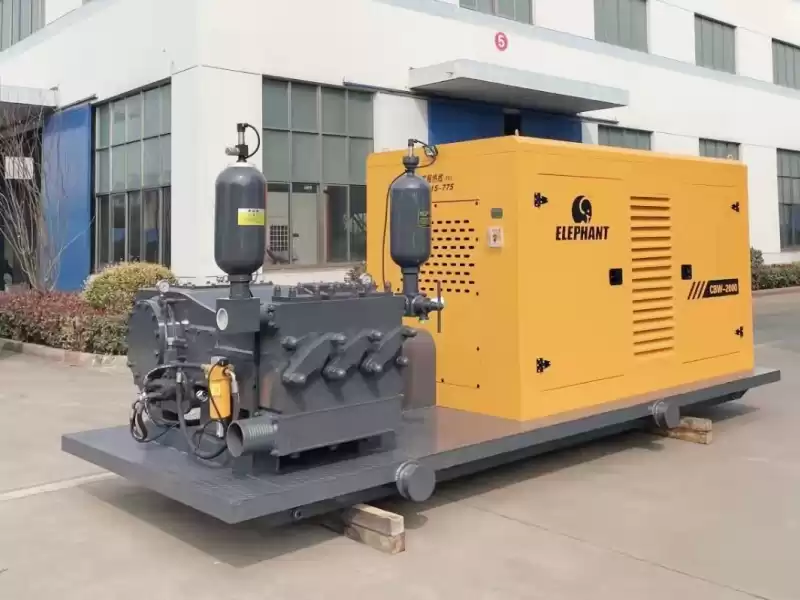

CBW-2000 rotary mud pump is a horizontal triplex reciprocating single-acting plunger pump, driven by diesel engine, equipment with automatic shift gearbox, wireless remote control.
It can be used for the purposes, such as grouting, mine drainage and long-distance water delivery. This plunger mud pump has five kinds of flow and pressure.
Its main role in drilling process is to supply flushing fluid to the drilling hole to circulate in the drilling hole, so as to carry cuttings back to the ground, keep the bottom of the hole clean, protect the wall of the hole from collapse, and cool and lubricate the drill bit and drilling tool.
Features:
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Easy operation, reliable performance；
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Stroke (mm) |
150 |
| Cyclinder Diameter (mm) |
155 |
| Flow (L/min) |
2000 1500 1140 760 500 |
| Pressure (Mpa) |
4 5.4 7 9 10.5 |
| Input Speed (r/min) |
162 |
| Dimensions (mm) |
4800*2100*2100 |
| Weight (kg) |
6050 |
| Diesel Model |
QSB8.3-C260 |
| Diesel Engine Power (KW) |
194 |
| Rated Speed (r/min) |
1700 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - Top-class heavy equipment company we cooperating：XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

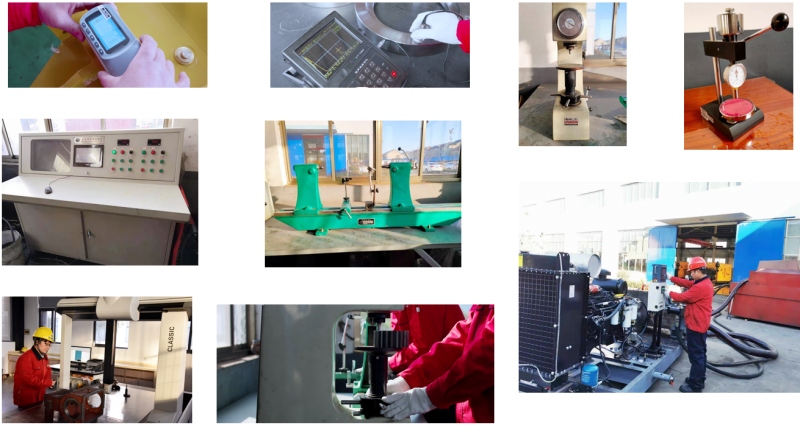

4- Advanced and professional testing and inspection equipment.
