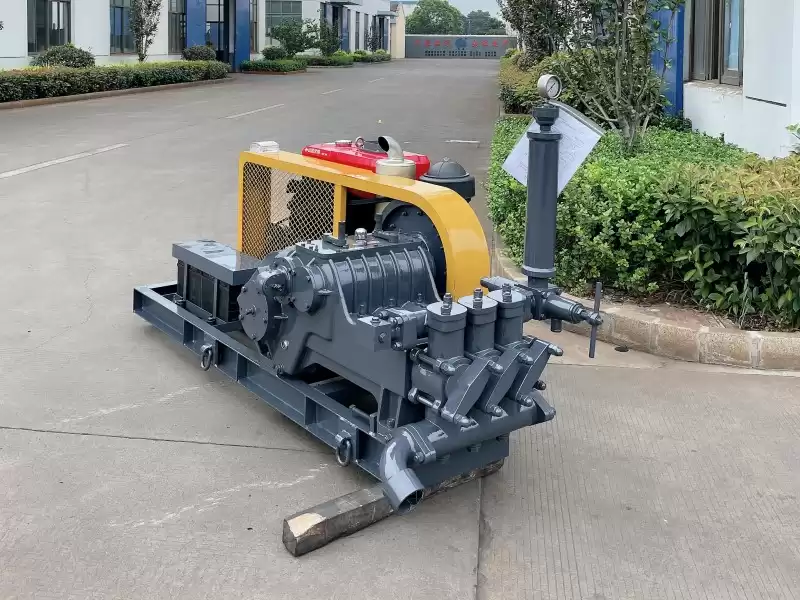

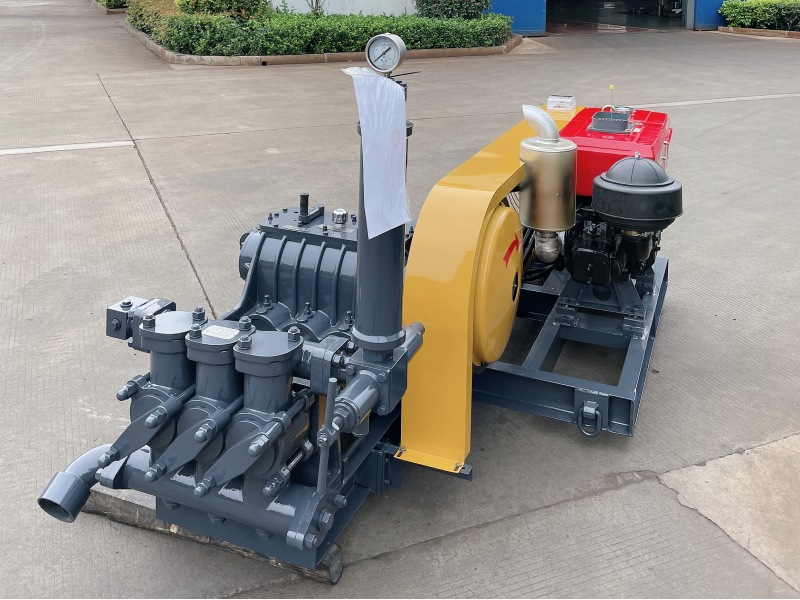

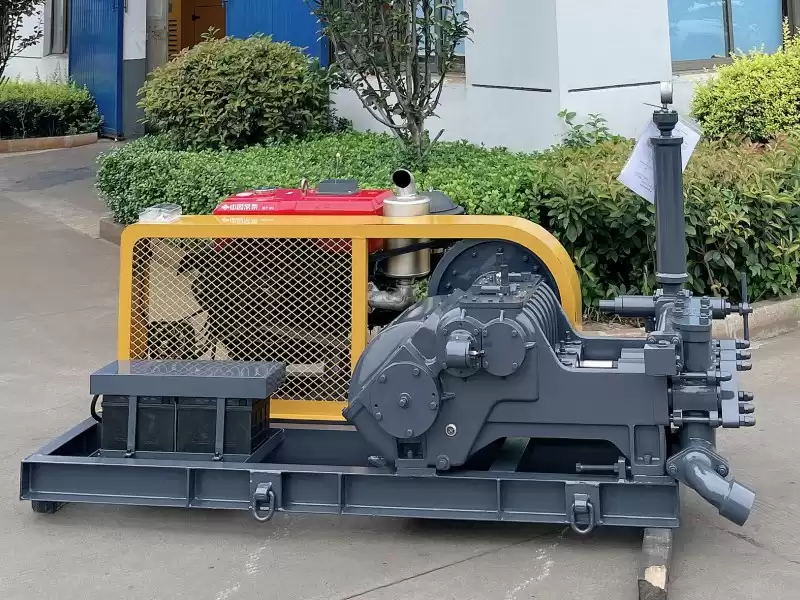

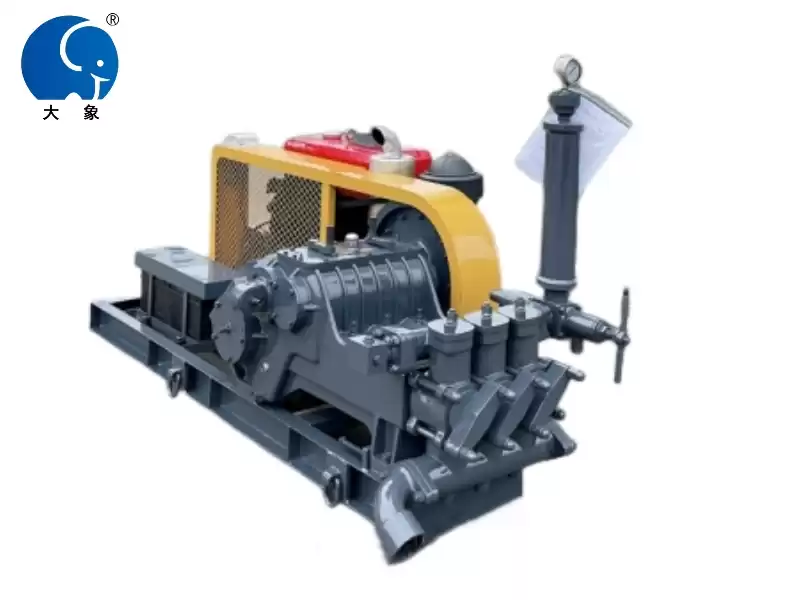

CBW-450 small drilling mud pump is a multi-purpose horizontal three-cylinder reciprocating single-acting piston pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
Features:
1. With diesel engine；
2. Compact structure, small volume, durable service；
3. Easy operation, reliable performance；
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
110 |
| Cyclinder Diameter (mm) |
95 |
| Pump Speed (r/min) |
196 140 100 71 |
| Flow (L/min) |
450 320 230 160 |
| Pressure (Mpa) |
2 3 4 5 |
| Maximum Input Torque (Nm) |
420 |
| Input Speed (r/min) |
490 |
| Rated Power (KW) |
18 |
| Maximum Water Absorption Height（m） |
2.5 |
| Inlet Connector |
RC 3 |
| Outlet Connector |
M42 x 2 |
| Dimensions (mm) |
2320*1360*1300 |
| Weight (kg) |
1100 |
| Driving Type |
Single Cylinder Diesel Engine Pulley Rotation |
| Diesel Model |
L32M |
| Diesel Engine Power (KW) |
23 |
| Diesel Engine Speed (r/min) |
2000 |
| Starting Voltage (V) |
24 |
Check this video to get more information regarding our CBW- 450 drilling mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.

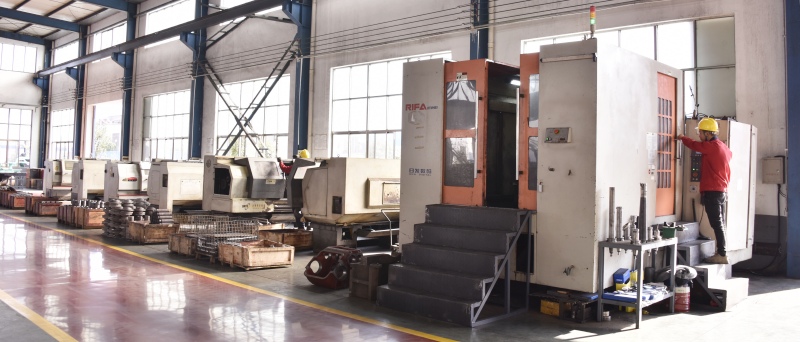

- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

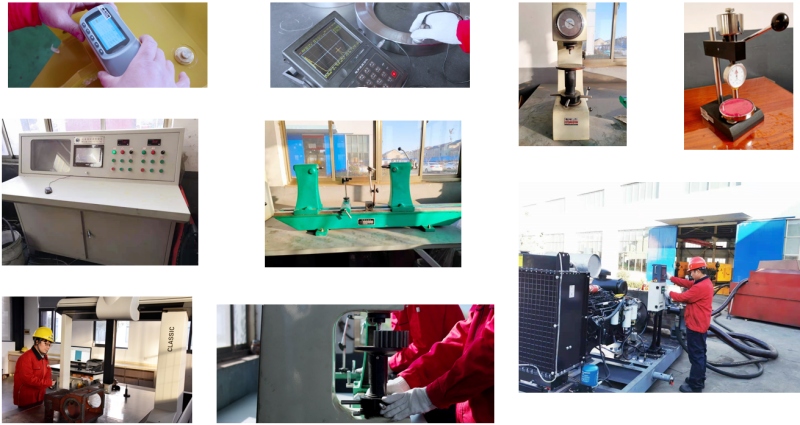

4- Advanced and professional testing and inspection equipment.
