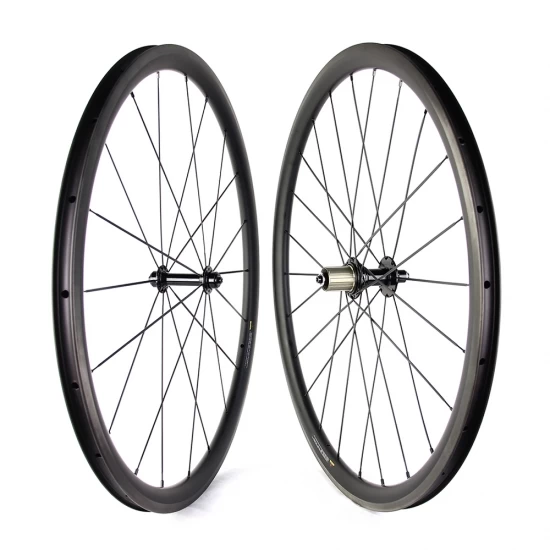

CC Bike Road Carbon Wheels
Key Features The Most High End Road Wheels
Road TLR carbon rims with patented resin formula, less than 0.1% braking failure
Patented layup schedule to allow as high as 180psi tire pressure
Easy tire mount and tubeless ready design
Aerodynamic profile design
Professional high end carbon racing wheels
WHEELS SPECS
|

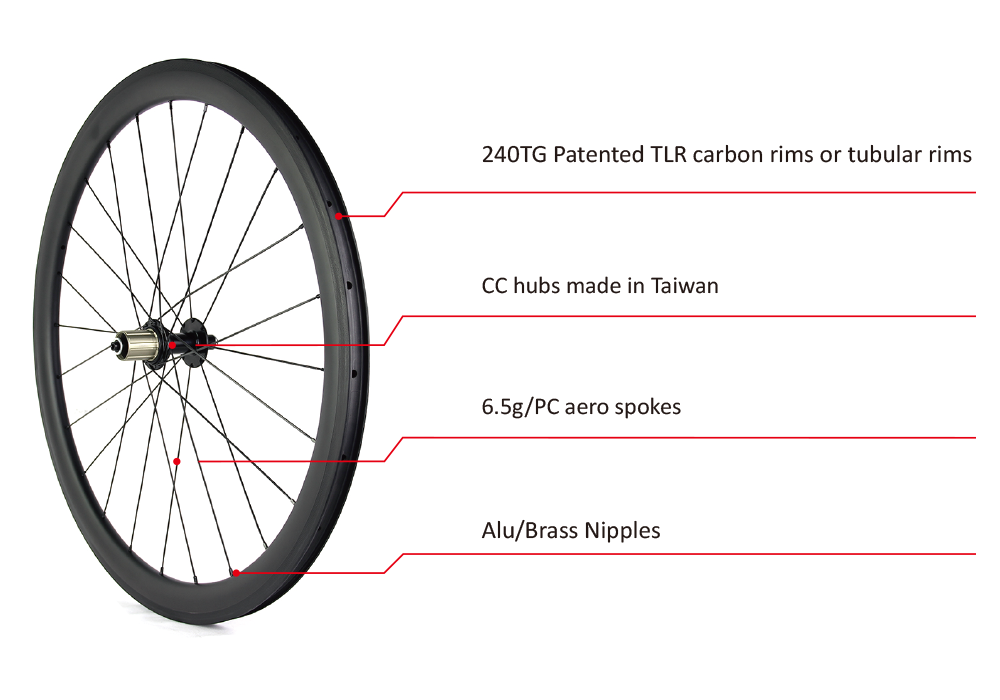

Rim
|

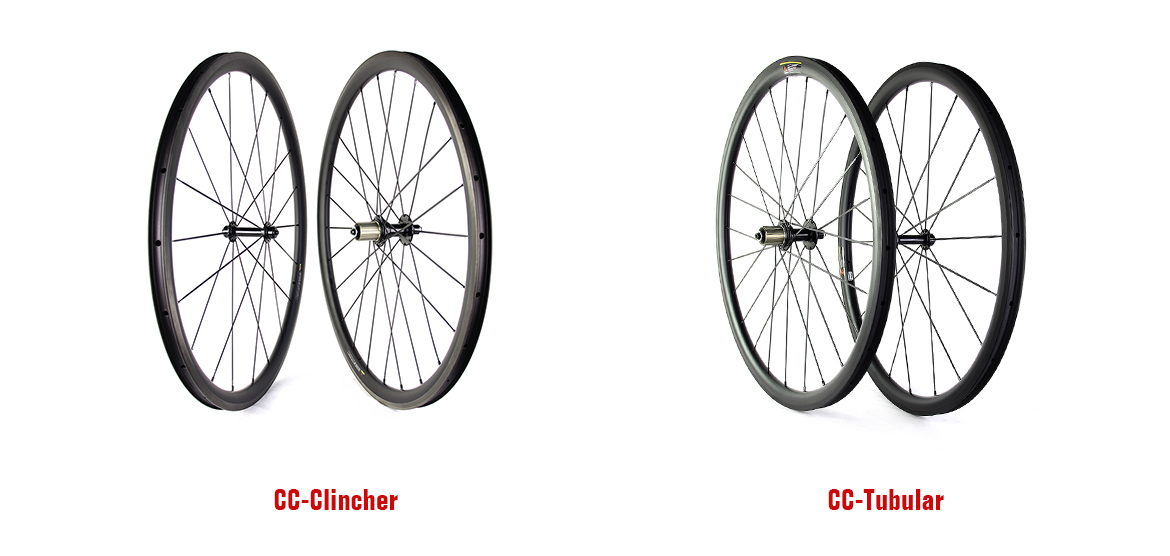

700C RIM BRAKE TUBULAR FOR AERO&PERFORMANCE ROAD BIKES 33/44/55/88 mm Tubular Carbon Rims
700C HTG RIM BRAKE CLINCHER FOR AERO&PERFORMANCE ROAD BIKES 33/44/55/88 mm Clincher Carbon Rims
|
|
Hub
|
CC J-bend hook classic hub
Front 20h 5/100mm QR Rear 24h 5/130mm QR Shimano 11S, Campy 11S
|
|
Brake
|
Rim Brake
|
|
Spoke
|
Aero494/Psr1423
|
|
Nipple
|
External/internal alloy nipples or brass nipples
|
|
Service Kit
|
Skewers & brake pads
|
|
Max.system weight
|
110-130 kg
|
|
Model (weight with CX Ray Spokes)
|
All Weight is w/t 5% tolerance
|
|
CC-WTD33T (1255g)
|
CC-WTD44T (1335g)
|
CC-WTD55T (1395g)
|
CC-WTD88T (1655g)
|
|
CC-HTG33C (1555g)
|
CC-HTG44C (1635g)
|
CC-HTG55C (1695g)
|
CC-HTG88C (1955g)
|
Hand-built High Precision Carbon Wheels
Wheel Building Technology

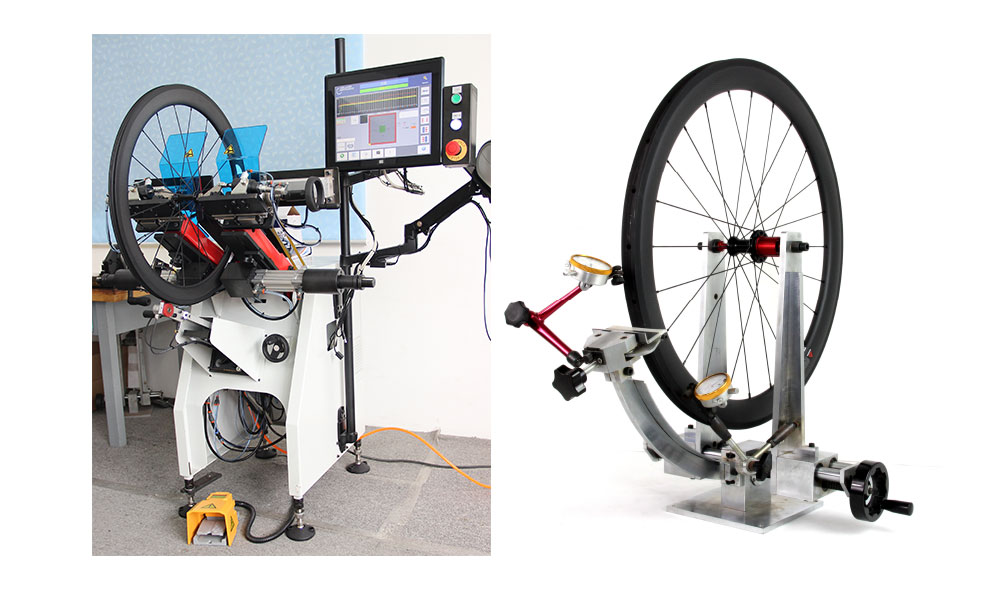

All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:
- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
