CC-PAIH51
|Rated 5.0

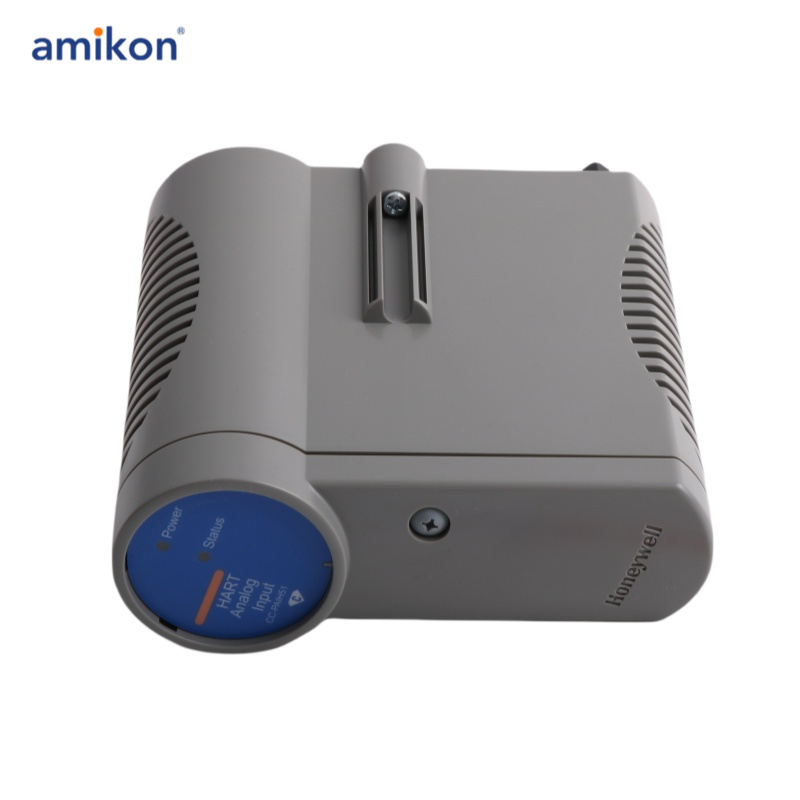

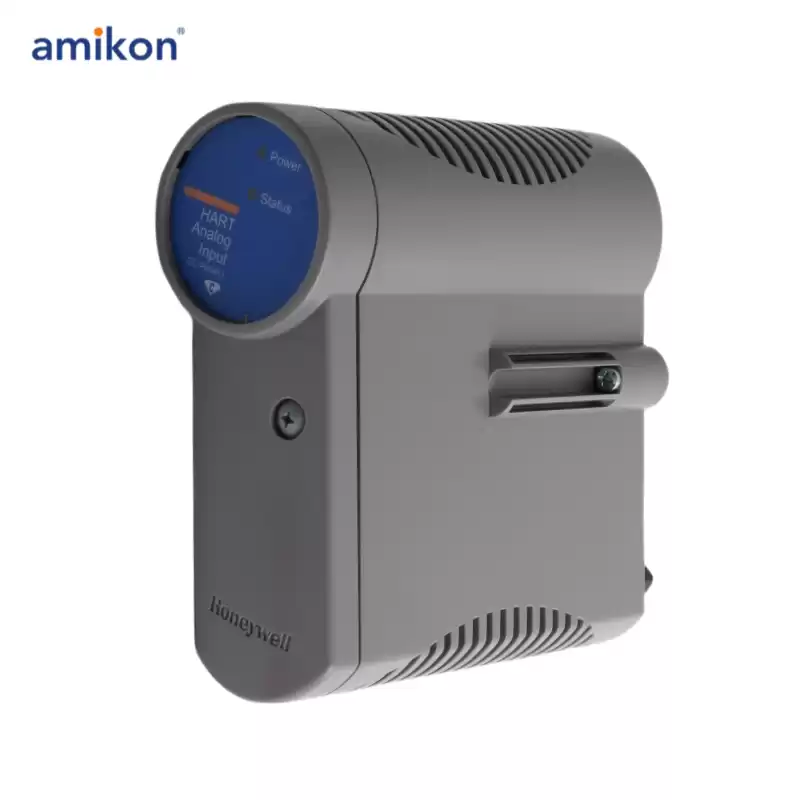

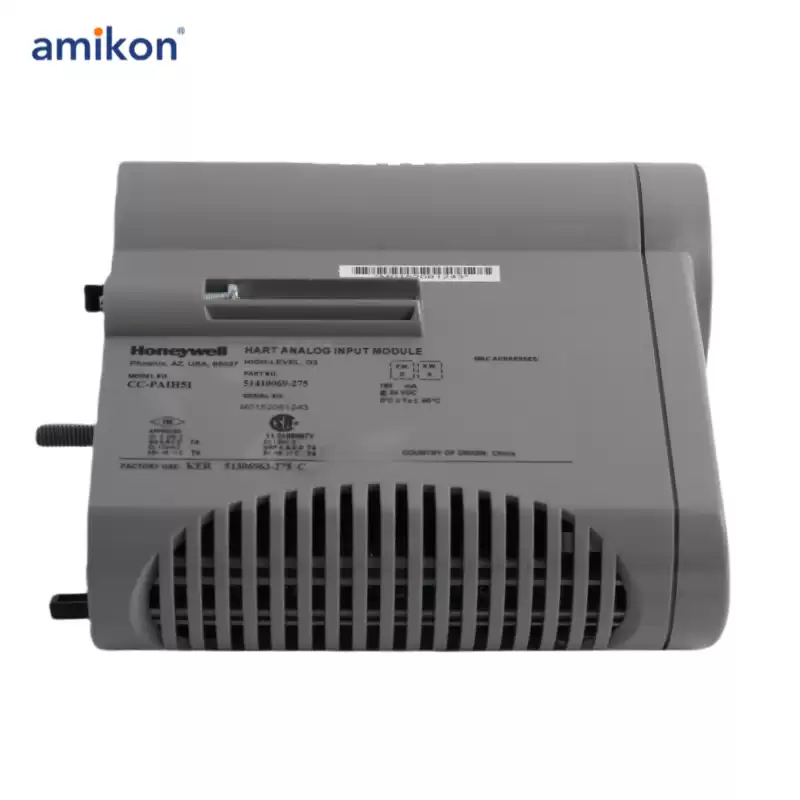

The Honeywell CC-PAIH51 is a high-performance HART analog input module designed for precise monitoring and control in industrial automation systems. This module provides 16 single-ended analog input channels, ideal for interfacing with 2-wire or self-powered current transmitters. It is specifically engineered to handle analog signals with a 4-20 mA range through a 200 Ω resistor.
|
Attribute
|
Details
|
|
Manufacturer
|
Honeywell
|
|
Product No.
|
CC-PAIH51
|
|
Product Type
|
Analog Input with HART
|
|
Input / Output Model
|
CC-PAIH51 - High-Level Analog Input with HART
|
|
Input Type
|
Current (2-wire or self-powered transmitters)
|
|
Input Channels
|
16 Channels (ALL Single Ended)
|
|
Common Mode Voltage (dc to 60 Hz)
|
-6 to +5 V peak
|
|
A/D Converter Resolution
|
16 bits
|
|
Normal Mode Rejection Ratio (60 Hz)
|
19 dB
|
|
Normal Mode Filter Response
|
Single-pole RC, -3 dB @ 6.5 Hz
|
|
Input Scan Rate
|
50 ms
|
