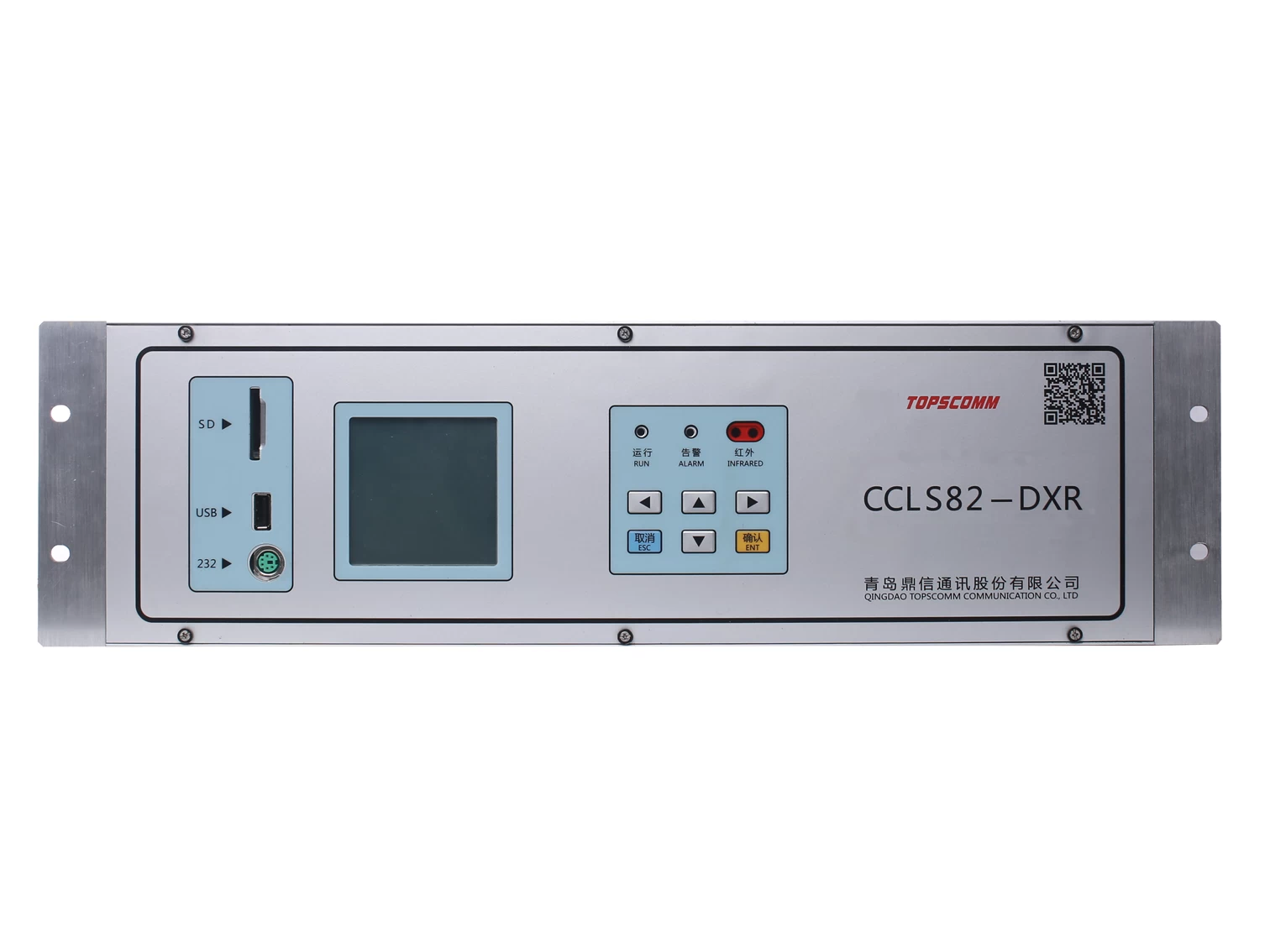

CCLS82-DXR Rack Mounted Type Energy Remote Terminal Unit

CCLS82-DXR is a rack mounted type intelligent energy data acquisition terminal.

Installation Location: Rack mounted in power plants and substations.



CCLS82-DXR Energy Remote Terminal Unit is installed at the applications such as the 110kV substations, the 10kV or 35kV power plants, the large & medium sized power plants, the high energy-consuming factories etc. This energy data acquisition terminal unit is to be installed at the fields which with large number of energy meter and various communication channels.


Power supply
AC 85~285V (-6%~+2%), 50Hz
DC 100V-375V, voltage ripple ≤5%
Power consumption
≤10W, 15VA
Communication
GPRS, Ethernet, RS 485 etc.
Communication protocol
DLT/645, DLMS/COSEM, IEC 62056
Startng time
<5s
Service life
>10 years
Operature temperature
-40℃~+85℃
Humidity
≤95%
Dimension

482mm*236mm*132mm
