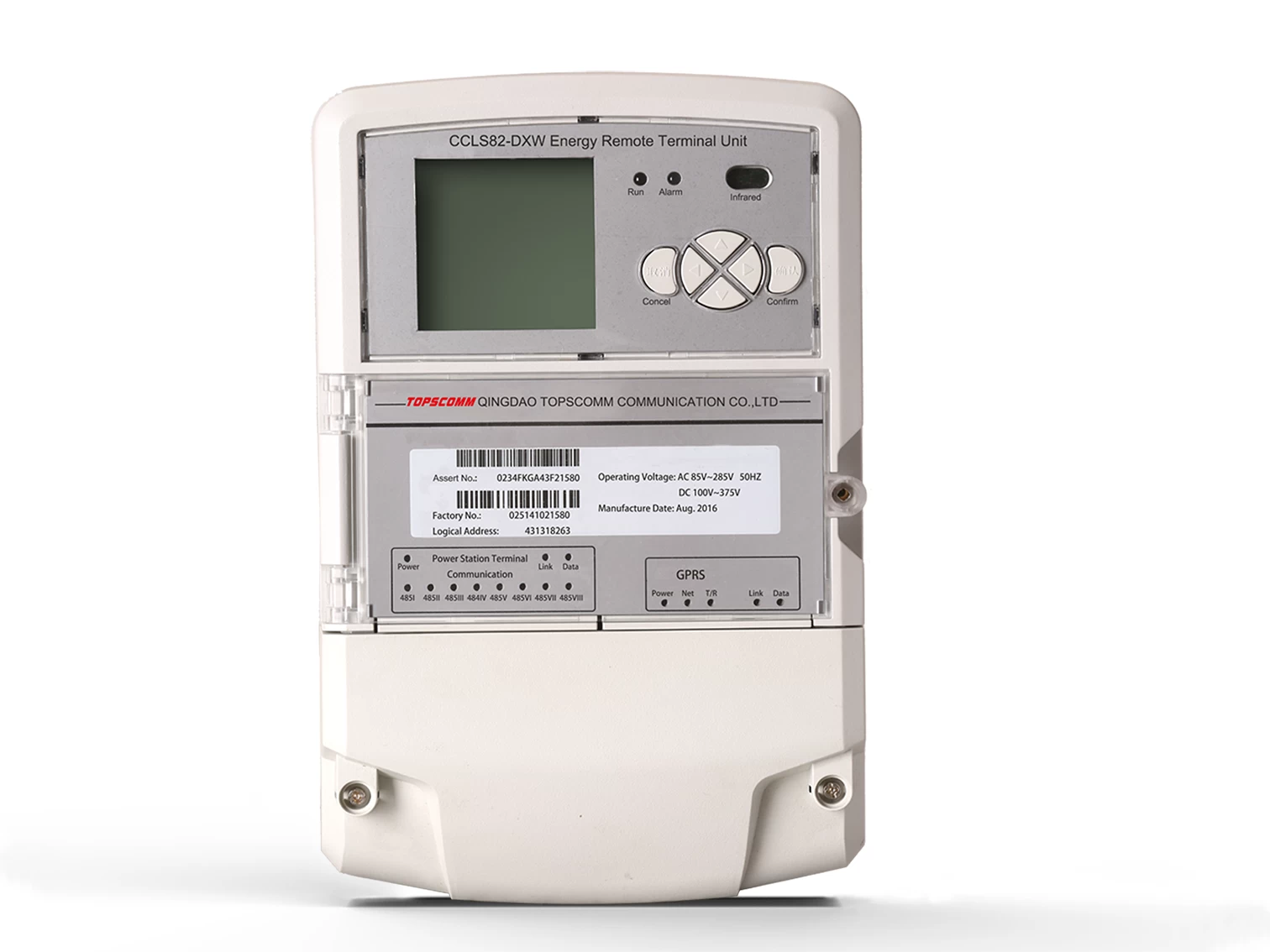

CCLS82-DXW Wall Mounted Type Energy Remote Terminal Unit

CCLS82-DXW is a wall mounted type intelligent energy data acquisition terminal.

Installation Location: On the standard measuring screen of power plants and substations.



CCLS82-DXW Power Plants Energy Remote Terminal Unit is mainly used in the applications like the substations of/or above 110kV, the grid connected power plants of/or above 10kV or 35kV, the large & medium sized power plants, the high energy-consuming enterprises etc. This energy data acquisition terminal is to be installed at the fields where large number meters connected and various communication channels adopted.


Power supply
AC 85~285V (-6%~+2%), 50Hz

DC 100V-375V, voltage ripple ≤5%

Power consumption
≤10W, 15VA
Communication
GPRS/3G/4G/CDMA, Ethernet, RS 485 etc.
Communication protocol
DLT/645, DLMS/COSEM, IEC 62056
Startng time
<5s
Service life
>10 years
Operature temperature
-40℃~+85℃
Humidity
≤95%
Dimension
290mm*180mm*95mm
